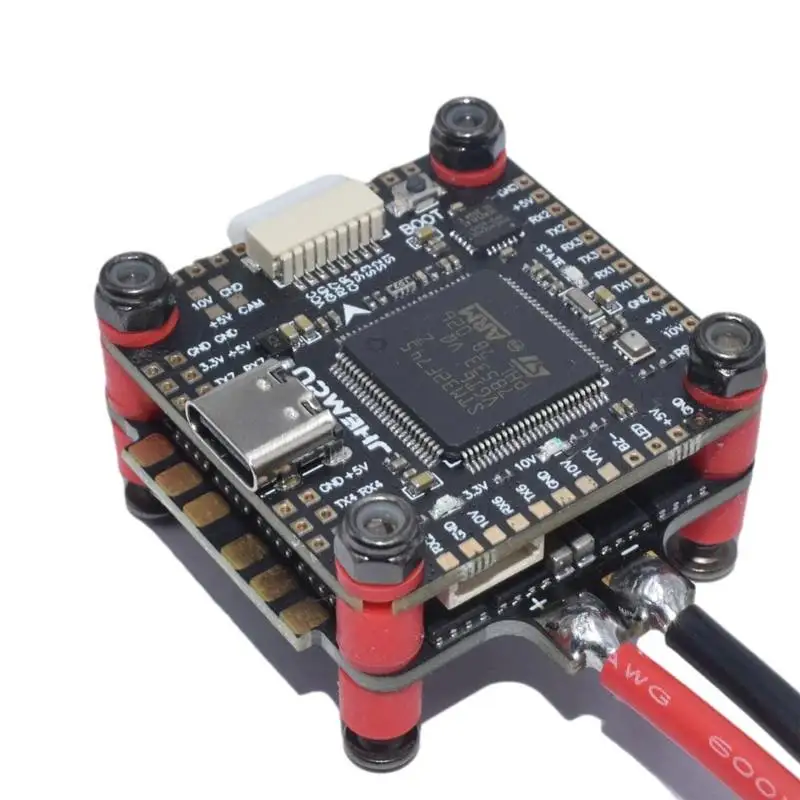

AuroraRC JHEMCU F745SE + 40A 4in1 ESC 6S Flytower
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F7 FCs → FC F7 + ESC 4in1 Stacks → AuroraRC JHEMCU F745SE + 40A 4in1 ESC 6S Flytower
Brand: TOPACC
Item name: AuroraRC F745SE 40A/ 55A flytower
Voltage: 6S,5S,4S,3S
RC Drone Spare Parts: Flight Controller
FC Specificiations:
CPU: STM32F745VGT6
Sensor: MPU6000（SPI Connection）
OSD: AT7456E
Barometer: BMP280
Black box: 16MB
BEC: Yes; 5V/3A, 10V/3A
ESC RX: UART7
HDVTX: DJIVTX->UART6
RC_IN: UART2
UART: UART1,UART2,UART3,UART4,UART6,UART7
USB: TYPE-C
Mounting Hole Distance: 30.5*30.5MM (Max: 36*36MM)
Firmware: KAKUTEF7MINI
Support Receiver: SBUS, IBUS, DSM2, DSMX, TBS
Support Support 3.3V Satellite Receiver
LED_Strip WS2812 port
Support buzzer port
current sensor port
Support Damped Mode, PWM,Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.
Weight: 7.9 grams
ESC Specificiations:
Voltage: 3-6S (12-26V)
Continuous working current: 40A/ 55A
BEC: No
Firmware: BLHELI G-H-30.HEX
Mounting Hole Distance: 30.5*30.5MM
Aperture: 4MM
Weight: 11.8g
Feature:
Build-in OSD：AT74S
Build-in: BMP280 Barometer
Build-in: 16MB Black Box
Support HDVTX Cable Plug
Support Buzzer
Support LED Strip
Support Current Sensor Port
Package Included:
1x F745SE Flight Controller Board
1x BLS-40A/55A four-in-one ESC
8x Anti-vibration Ball
1x Cable 6P*1.0mm-GH 8P*1.25MM
1x Cable 8P*1.0mm
1x Filter capacitor cable plug
4x m3x22 screws
4x m3 nuts
Share
Preise für AuroraRC JHEMCU F745SE + 40A 4in1 ESC 6S Flytower in den Läden
Angebote gefunden: 4 (Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| Banggood | Out of stock | $68 | 1 | $68 |
