Flight controllers

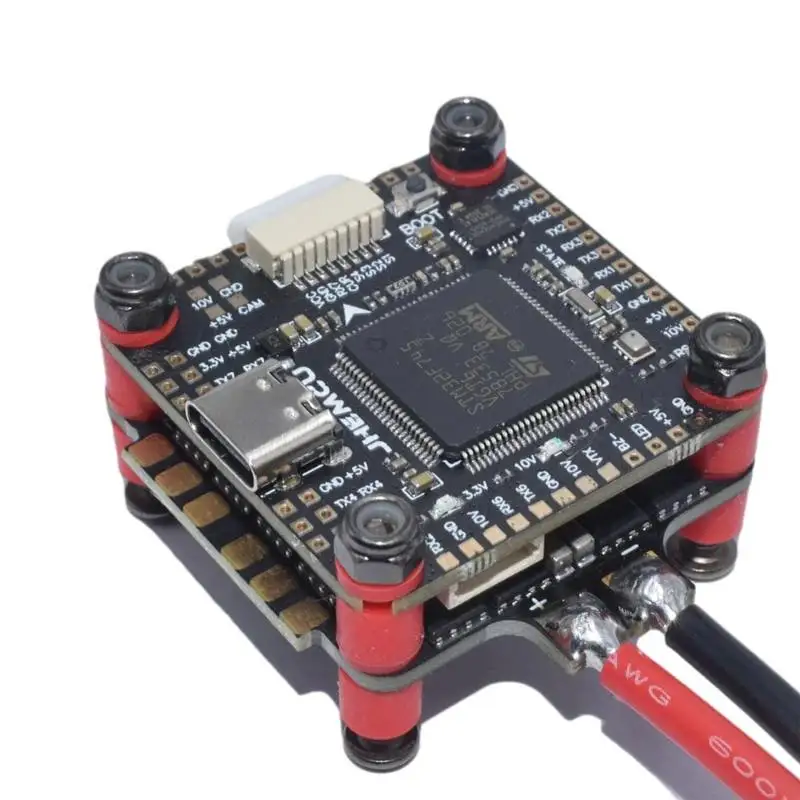

JHEMCU (AuroraRC) F745 SE 6S
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F7 FCs → JHEMCU (AuroraRC) F745 SE 6S
| MCU: | F745 |
| : | F745 |
| : | BMP280 |
| OSD: | AT7456E |
| : | 2-6S |
| 3.3V BEC: | + |
| 5V BEC: | 3A |
| 9V/10V BEC: | 3A |
| : | - |
| : | - |
| ESC: | - |
| BLHeli: | - |
| Empfänger: | - |
| VTX: | - |
| : | 6 |
| : | 6 |
| : | + |
| : | + |
| CURR pad: | + |
| IR/INR pad: | + |
| Blackbox: | 16Mb |
| : | Type C |
| : | + |
| : | 36x36mm |
| : | 30.5x30.5mm |
| Gewicht: | 7.9g |
Brand: JHEMCU
Item Name: F745 SE 3-6S Flight Control
CPU: STM32F745VGT6
Sensor: MPU6000（SPI Connection）
OSD: AT7456E
Barometer: BMP280
Black box: 16MB
BEC: 5V/3A, 10V/3A
ESC RX: UART7
HDVTX: DJIVTX->UART6
RC_IN: UART2
UART: UART1,UART2,UART3,UART4,UART6,UART7
USB: TYPE-C
Size: 30.5*30.5MM (Max: 36*36MM)
Firmware: KAKUTEF7MINI
Receiver: SBUS, IBUS, DSM2, DSMX, TBS
Support Support 3.3V Satellite Receiver
LED_Strip WS2812 port
Support buzzer port
current sensor port
Support Damped Mode, PWM,Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.
Weight: 7.9 grams
Package Included:
1x F745SE Flight Controller Board
4x Anti-vibration Ball(BLUE)
1x Cable 6P*1.0mm-GH 8P*1.25MM
1 x Cable 8P*1.0mm
