ZOHD Nano Talon 860mm FPV

Features:
1- Built-in Stabilizer make the Nano Talon flys super stable, and easy to control.
2- Autonomous fly directly after hand-launch, never crash when take-off.
3- EPP molded wing, pre-built-in Carbon Fiber spar for enhancement, light and flexible plus crash resistence.
4- Detachable mainwing and tailwing for easy transport, and easy to change wing by simple plug.
5- Mainwing connected to fuselage by buckle, will be disconnect and release during crash.
6- Pre-installed 1080p/30fps HD Camera, recording and 5.8Ghz FPV at the same time.
7- “NACA”air-intake in nose and air-outlet in tail for better cooling on FPV gear.
8- Extra rooms in canopy and cabin for FPV gear, bottom hatch provide bonus rooms for more FPV equipment
9- Self tighten prop nuts for secure prop mounting

Description:
This 860mm Wingspan Nano Talon is a portable edition of the Talon FPV Airframe series. The pre-installed AIO HD camera and 5.8Ghz Vtx brings you an integrated solution for FPV flying. It is super easy to hand-launch and fly because of the gyro, This Nano Talon is very convenient to carry with because the detachable mainwing and tail wing can be detached easily by plugs and magnets. The built-in servo structure makes the airfoil more aerodynamic, and avoid damage even in a crash. The inside room and extra bottom hatch are also huge for more FPV gear.

Specification:
Brand Name: ZOHD
Item Name: Nano Talon
Version: FPV

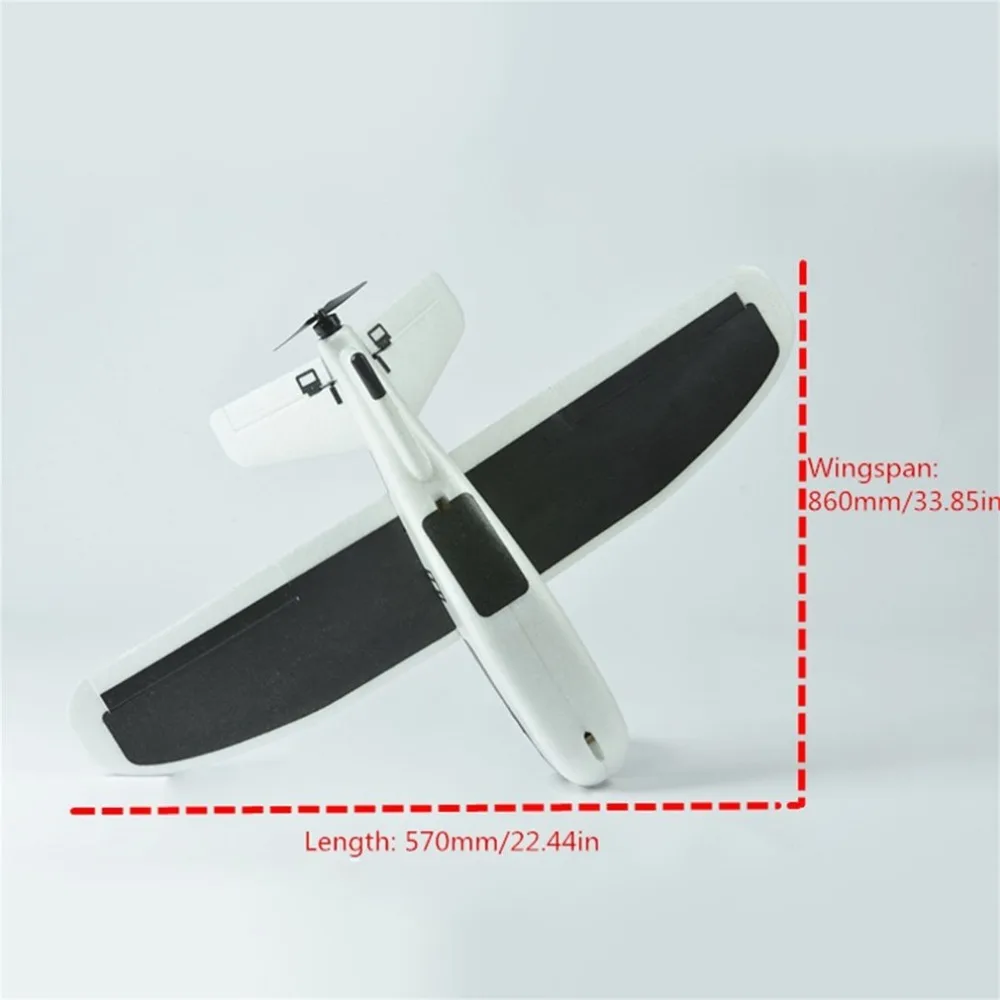

Wingspan: 860mm/33.85in
Length: 570mm/22.44in
Flying Weight: 361g(w/o FPV gear)
Material: Crash Resistable EPP
CG: 3.5cm from the wing leading edge(mark under the wing)
Color: White & Black
Motor: 2204 1870KV brushless
Motor Shaft Diameter: 5mm
ESC: 30A W/1A BEC(XT30 connector)
Servos: 3pcs 8g Digital servo
Propeller: 6x3
Recommended Battery: 3S 1300-2200mAh 25C
Flying speed: 12 to 90km/h

Pre-installed FPV gear: Full HD AIO Camera:
1. 1080p/30fps 12megapixels
2. Full HD 1080p/30fps recording, up to 64G Micro SD Card
3. On Screen Display of battery capacity
4. Auto Save Video when landing
5. FOV(Angle of Field): 120°
6. WDR(wide dynamic range): ON
7. Video Files: MP4
8. Interface: Micro USB port
9. Supper WDR FPV image with low latancy
10. FPV video: 720*480 30FPS
11. Operating Voltage: 6~25V
12. With Microphone for clear sound recording
12. Size: 27.2*27.2*32.5mm
13. Weight: 16g

Pre-installed FPV gear: Video Transmitter
1. Power: 600mW
2. Frequency: 5.8Ghz 40CH w/ Race Band
3. Operating Voltage: 6~25V
4. 5.8GHz 3 leaf Clover LHCP Antenna
5. Size: 32.5*24.3*9.4mm
6. Weight: 13g

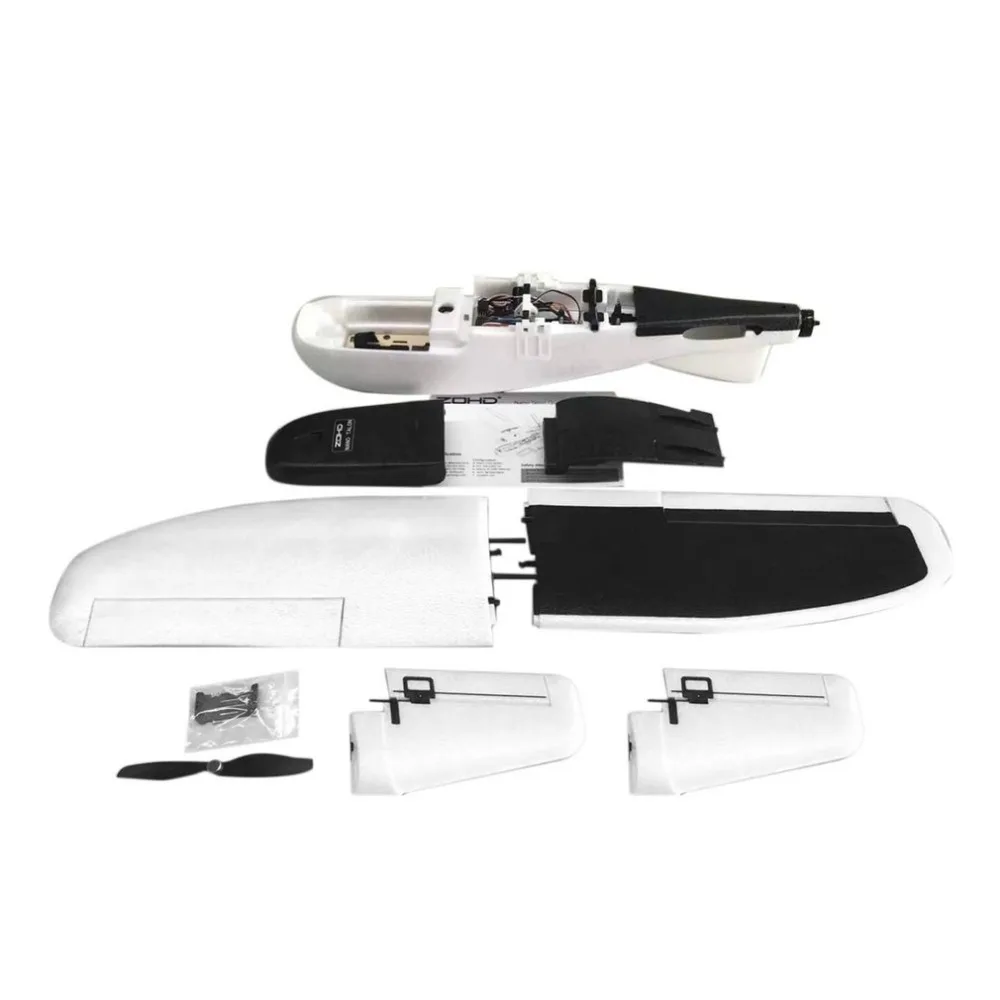

Package Content:
1 x FPV Plane
1 x Pre-assembled motor
1 x ESC
1 x Servos
1 x Gyro
1 x Hardware
1 x HD Camera
1 x 5.8G VTX
