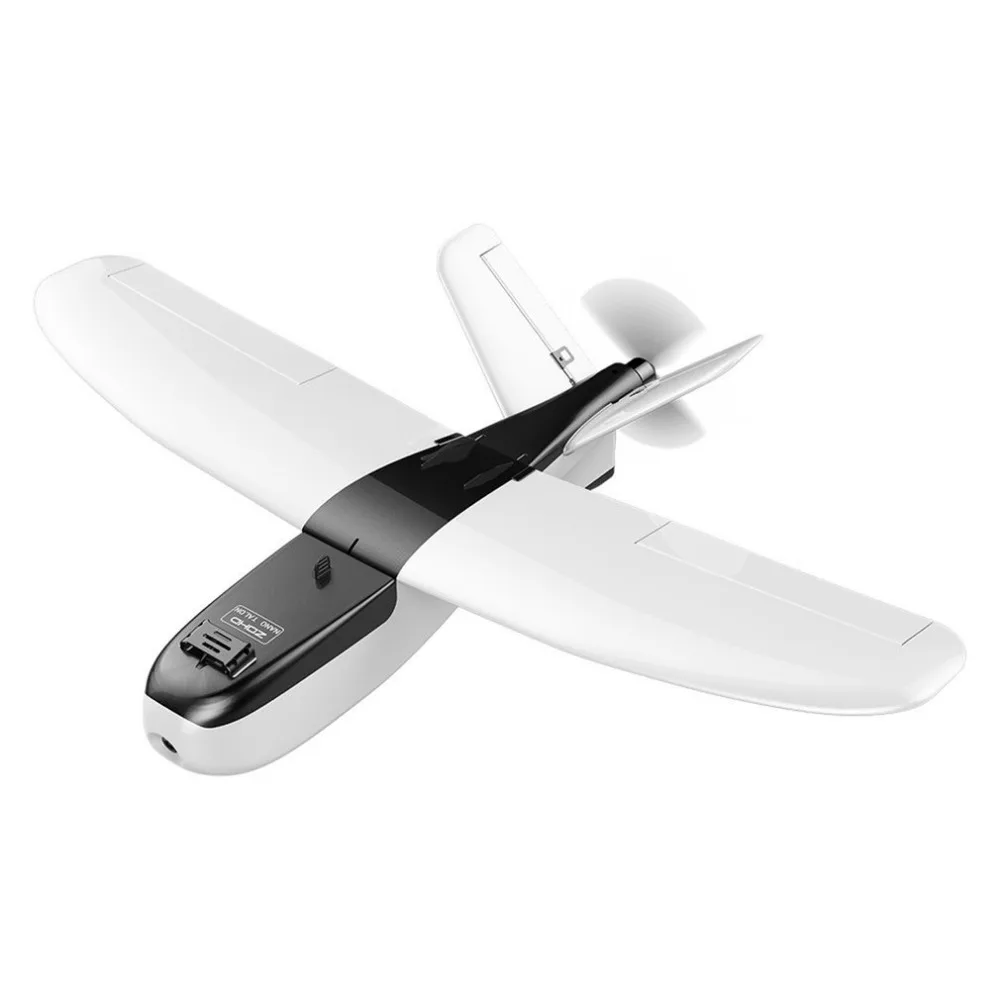

ZOHD Nano Talon 860mm

Airplanes, aircrafts, flying wings → FPV Aircraft → Under 1m wingspan → ZOHD Nano Talon 860mm

ZOHD Nano Talon 860mm Wingspan AIO HD V-Tail EPP FPV RC Airplane Kit

This 860mm Wingspan Nano Talon is a portable edition of the Talon Airframe series. It is super easy to hand-launch and fly because of the gyro, This Nano Talon is very convenient to carry with because the detachable mainwing and tail wing can be detached easily by plugs and magnets. The built-in servo structure makes the airfoil more aerodynamic, and avoid damage even in a crash. The inside room and extra bottom hatch are also huge for more FPV gear.

Description:

Brand Name: ZOHD

Item Name: Nano Talon

Wingspan: 860mm/33.85in

Length: 570mm/22.44in

Rudder: Yes (V-tail)

Flap: No

Aileron: Yes

Flying Weight: 361g(w/o FPV gear)

Material: Crash Resistable EPP
Weight: 700g

CG: 3.5cm from the wing leading edge(mark under the wing)

Color: White + Black

Flying speed: 12 to 90km/h

Features:

* Autonomous fly directly after hand-launch, never crash when take-off.

* EPP molded wing, pre-built-in Carbon Fiber spar for enhancement, light and flexible plus crash resistence.

* Detachable mainwing and tailwing for easy transport, and easy to change wing by simple plug.

* Mainwing connected to fuselage by buckle, will be disconnect and release during crash.

* “NACA”air-intake in nose and air-outlet in tail for better cooling on FPV gear.

* Extra rooms in canopy and cabin for FPV gear, bottom hatch provide bonus rooms for more FPV equipment

* Self tighten prop nuts for secure prop mounting

Recommend Parts(Not included):

Motor: ZOHD 2204 1870KV BL

Motor Shaft Diameter: 5mm

ESC: 30A W/1A BEC(XT60 connector) Click here

Servos: 2pcs 8g digital servo Click here

Propeller: 6x3 Inch Click here

Recommended Battery: 3S 1300-1800mAh XT60 connector Click here
Recommend Radio: ≥6CH Click here

ZOHD Nano Talon PNP With FPV System, Click here

ZOHD Nano Talon PNP With Gyro, Click here

ZOHD Nano Talon Spare Parts, Click here

ZOHD Nano Talon Manual, Click here

Note: This item is Kit only, not included any electronic parts.
