Reptile CLOUD-149HD 3" 149mm Black frame kit for DJI FPV
Multirotors → Racing FPV-Hubschrauber → Racing Frames → 3" frames → Reptile CLOUD-149HD 3" 149mm Black frame kit for DJI FPV

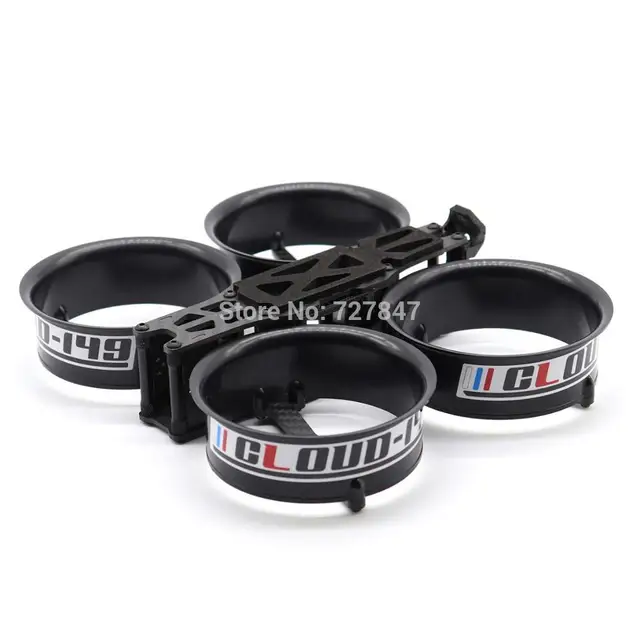

Reptile CLOUD-149HD 149mm Wheelbase 3 Inch Racing Frame Kit Compatible DJI Digital FPV System
Specification:
Brand Name: Reptile
Model: CLOUD-149HD
Specification:
Brand Name: Reptile
Model: CLOUD-149HD
Wheelbase: 149mm
Upper plate length:156mm
Lower plate length:156mm
Weight: 115g (Include print part)
Bottom plate: 2mm
Top plate: 2mm
Arm plate:3mm
Position of FC installation hole: 20*20mm/30.5*30.5mm
Camera mounting hole distance:20mm
Distance of installation hole of motor:12mm
Plastic parts: ABS material plastic Diversion ring
Printed parts: TPU antenna base
Features:
The following parts are compatible: ( NOT Included)
FC & ESC Stack: 20x20mm iFlight SucceX-D Mini F7 TwinG Stack (F7+40A ESC)
Brushless Motor: MAMBA 1408 4000KV 4S Brushless Motor
Propeller: 2 Pairs iFlight MegaBee V2 Parts 3045 3x4.5 3 Inch 3-Blade Propeller
VTX & Camera: DJI Digital FPV System Air Unit HD Camera Goggle Radio Transmitter Combo
Lipo Battery: Tattu R-Line V1.0 14.8V 850mAh 95C 4S1P Lipo Battery XT30 Plug
Package Included:
Features:
1. Suitable for DJI FPV System
2. Video unocclusion
3. Beautifully designed,rugged and durable
4. High quality carbon plate,precision cutting
5. Includes 3D printed Parts for installing DJI FPV System
Recommend Parts:
Flight Controller: 20x20mm OR 30.5x30.5mm RF / Kiss / F4 / F3 / F7 FC
Brushless ESC: 20A-50A
Propeller: 3 Inch Propeller
Brushless Motor: 1306 / 1408 / 1506 Motor
VTX & FPV Camera: DJI FPV Air Unit
Battery: 4S 650mAh - 6S 1300mAh Lipo
The following parts are compatible: ( NOT Included)
FC & ESC Stack: 20x20mm iFlight SucceX-D Mini F7 TwinG Stack (F7+40A ESC)
Brushless Motor: MAMBA 1408 4000KV 4S Brushless Motor
Propeller: 2 Pairs iFlight MegaBee V2 Parts 3045 3x4.5 3 Inch 3-Blade Propeller
VTX & Camera: DJI Digital FPV System Air Unit HD Camera Goggle Radio Transmitter Combo
Lipo Battery: Tattu R-Line V1.0 14.8V 850mAh 95C 4S1P Lipo Battery XT30 Plug
Package Included:
1x Top plate
2x Side plate
1x Bottom plate
2x Arm plate
4x plastic Diversion ring
1x 3D Printing TPU Antenna base
8x Aluminum pillar
1x 3D Printing TPU Mounting Base for DJI FPV transmitter
Share
Preise für Reptile CLOUD-149HD 3" 149mm Black frame kit for DJI FPV in den Läden
Angebote gefunden: 31 (AliExpress2, NewBeeDrone1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| NewBeeDrone | Out of stock | $30 | 1 | $30 | ||
| AliExpress | High stock level | $37 | 1 | $37 | ||
| AliExpress | High stock level | $42 | 1 | $42 |
