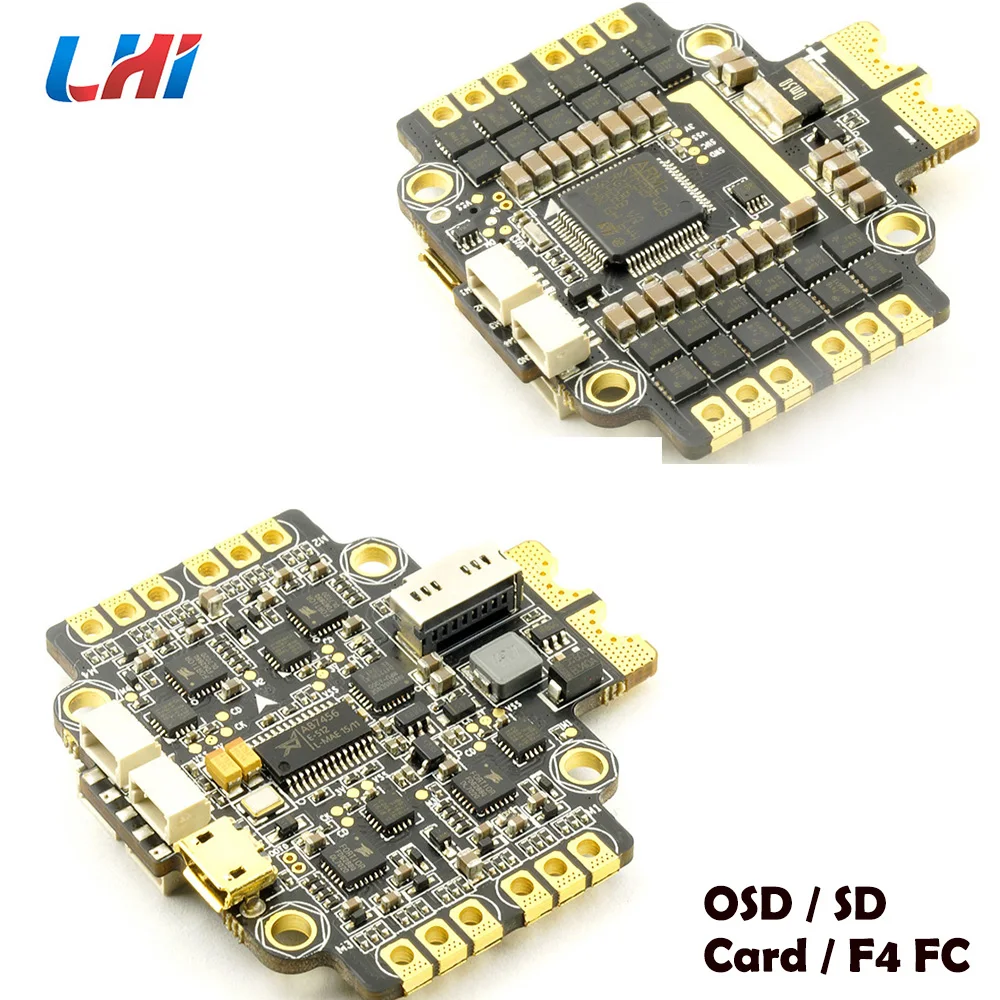

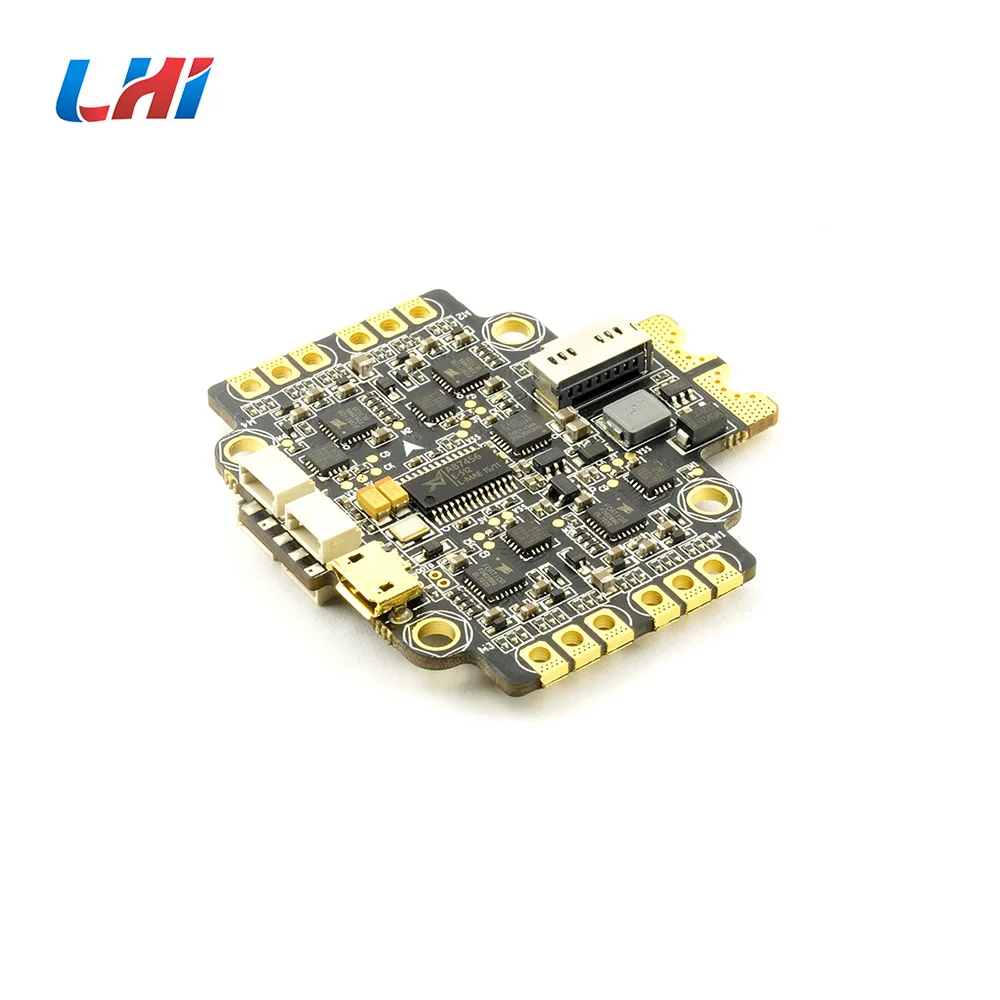

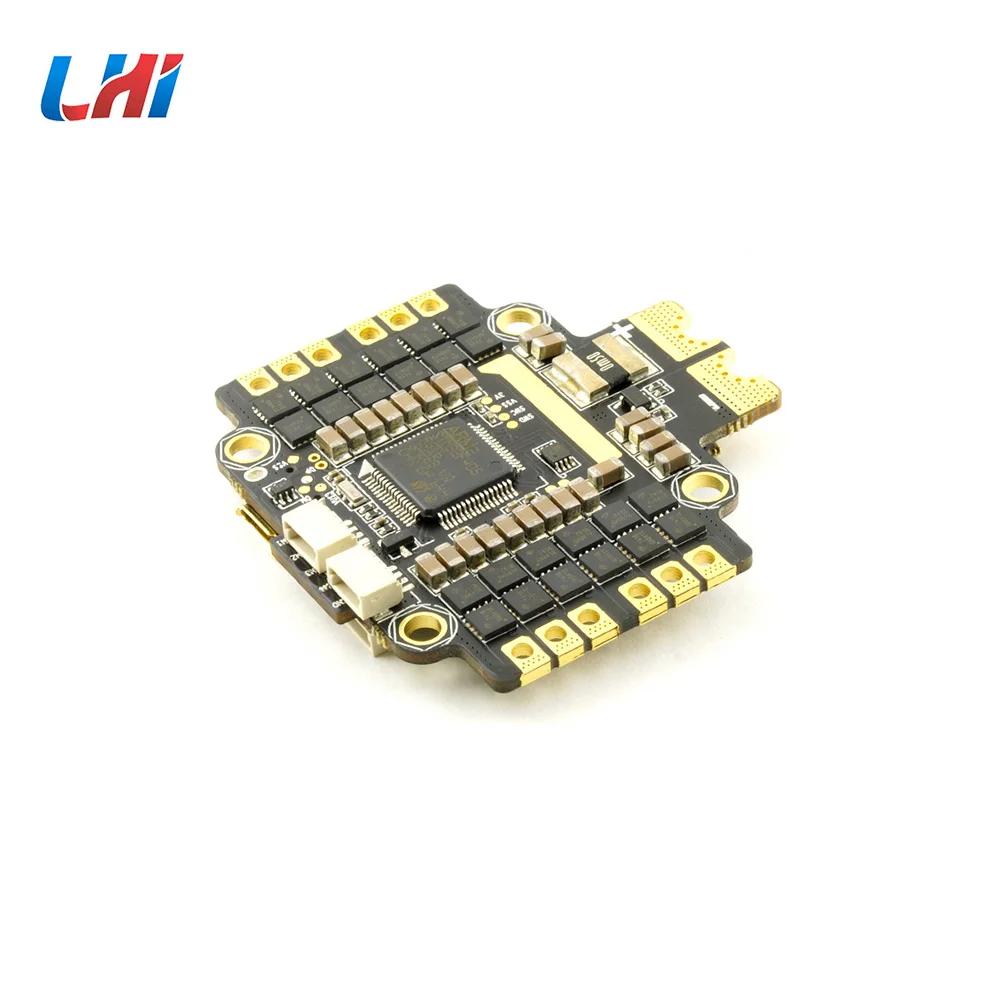

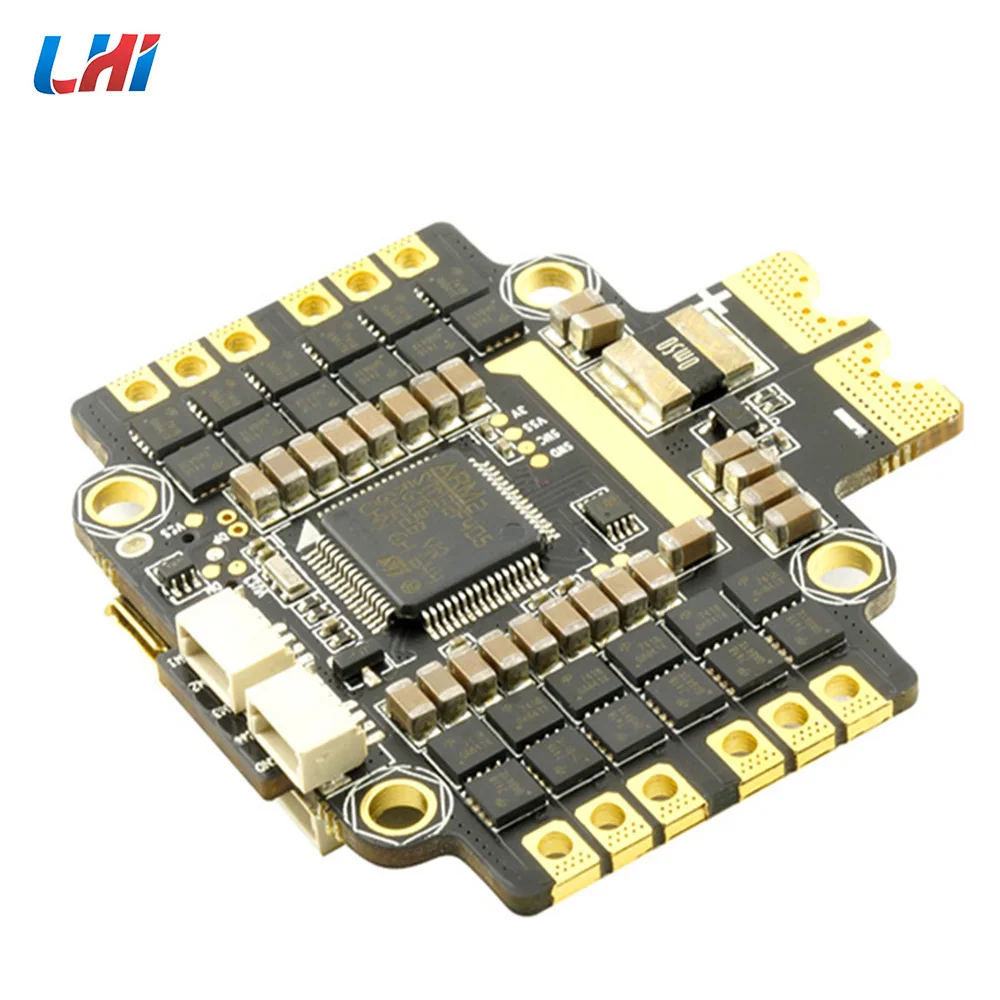

Airbot Asgard V2 F4 AIO

Asgard AIO Flight Controller is a truly All-in-One FC that combines a F4 FC, 4x 25A ESC, OSD, PDB, MicroSD card slot, 5v 1.5a BEC and Current Sensor all in 1 compact package and weighing only 14g! Like other Omnibus F4 flight controllers, you'll be able to tune your PID's using your transmitter, and use the drag and drop OSD setup in the OSD tab of the BetaFlight Configurator. This is the latest V3 version of the Asgard design with a new and improved features like a better HV bar to handle high amperage loads with ease, breakout solder pads extend beyond the JST-SH connectors as an alternative to plugs, protective metal plate / heatsink over the MCU, and a cleaner overall layout of pads and components.

Features:

•
• SPI Gyro MPU6000
• On-Board OSD (controllered by Betaflight, FC over SPI bus)
• MicroSD Blackbox
• F4 Processor (F405)
• 5v1a SBEC
• Built-in Current Sensor
• 4x BLHELI_S ESC(DSHOT Ready)
• 2x UART
• Buzzer output
• WS2812B LED output
•

Specifications:

• Mounting holes: 30.5 x 30.5mm
• Target: Ominibus F4 SD
• Firmware: Betaflight
• Weight:14g
