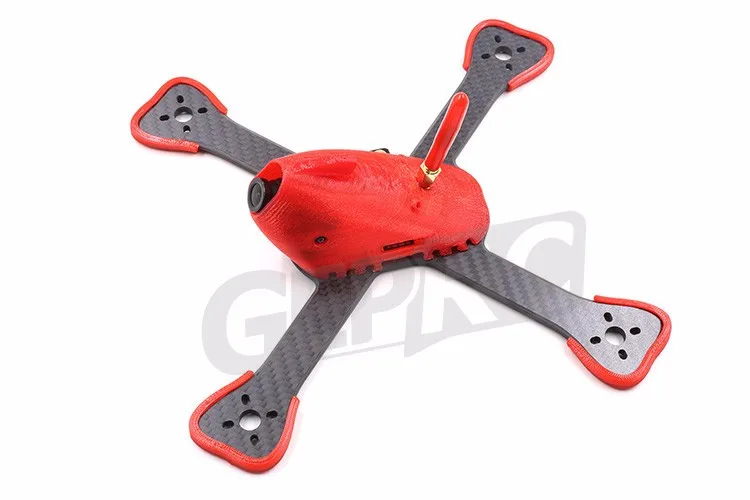

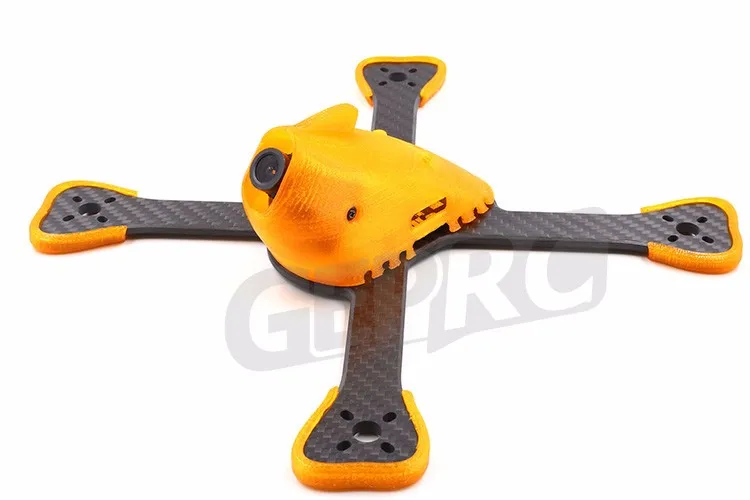

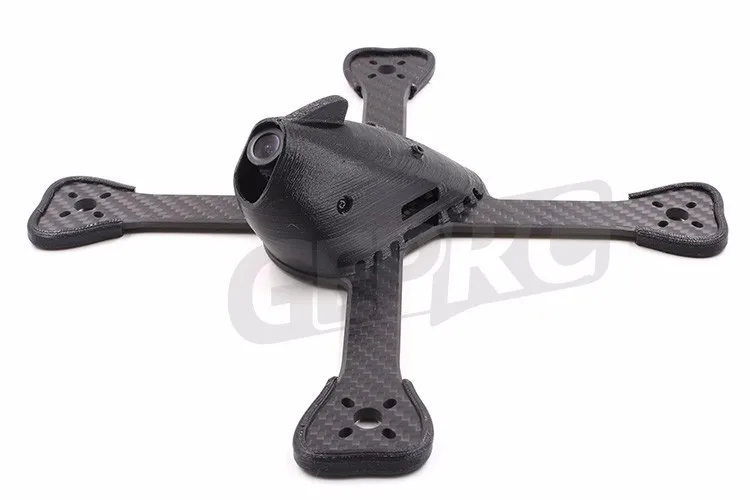

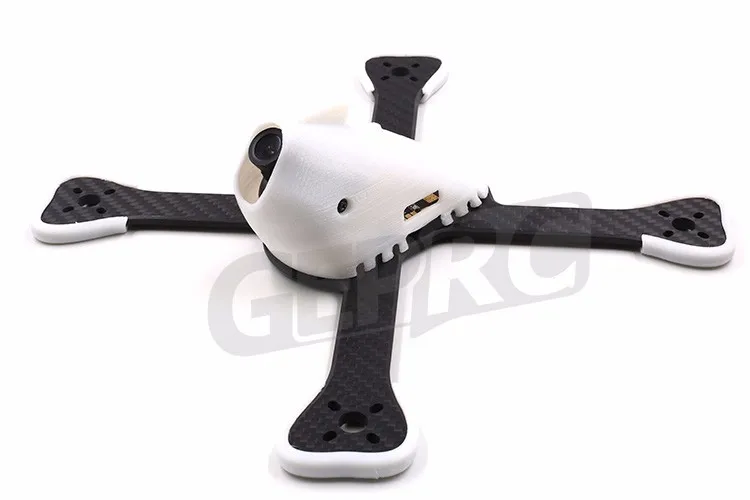

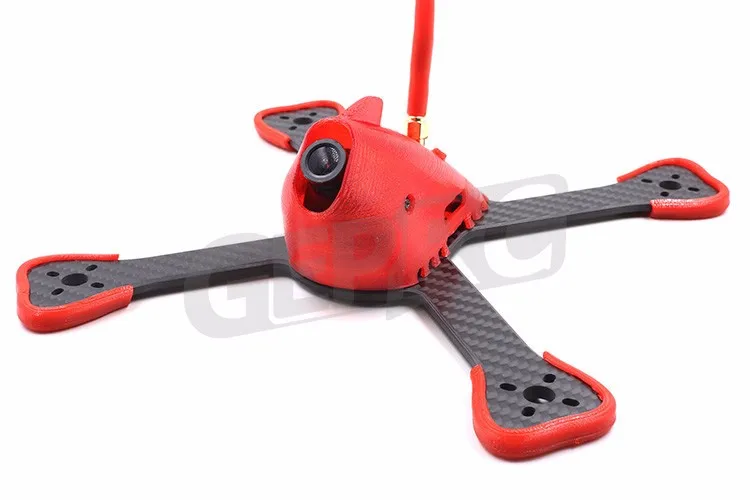

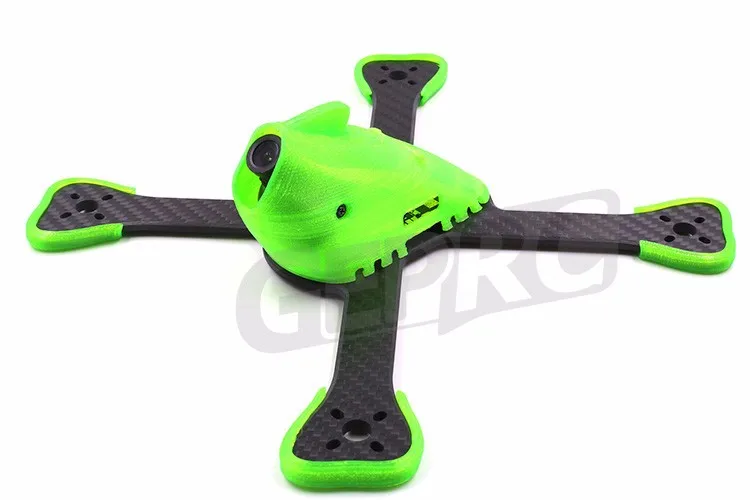

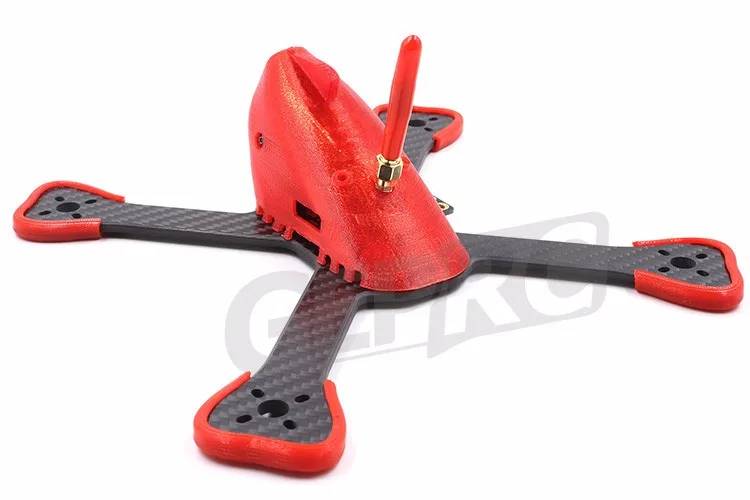

GEPRC GEP-BX4 FlyShark

Bron for racing,streamline engineering reduce 50% windage.

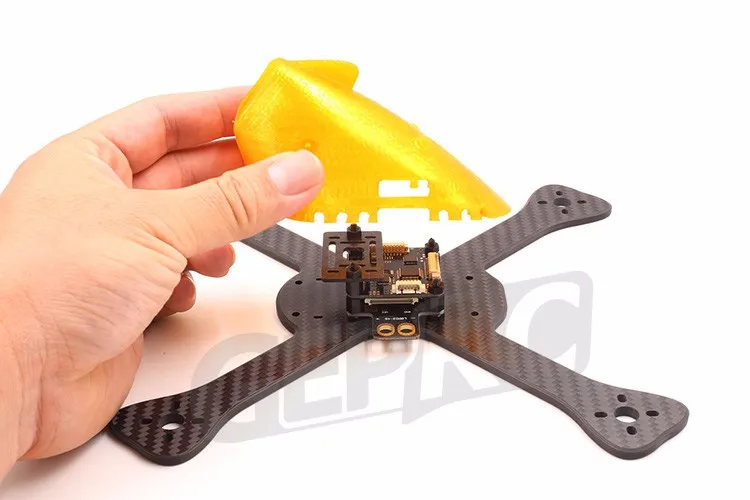

Made of super light 3K carbon fiber board and TPU 3D printed item.

 We call it FlyShark,GEP-BX serise.The best part is the 50% reduced windage,at least.With the TPU 3D printed object,crashing endurable.

 Ture X style with 3 version to choose.4''(190mm),5''(215mm),6''(240mm),all of the kits use 4mm board to build.

 Camera spot support HS1177,HS1190,Swift,OWL Plus,there are too much cameras you can use on this kit,can't define all.

 The motor protective base looks like the tail of a fish,can protect the motor at certain point.

 12.9 degree strength YFS screw.

 A BEC 5V/12V PDB comes along with the package.





Spec:

 Mode:GEP-BX

Nickname:FlyShark

Weight:90g/82g/100g (5''/4''/6'')

Wheelbase:215/190/240mm (5''/4''/6'')

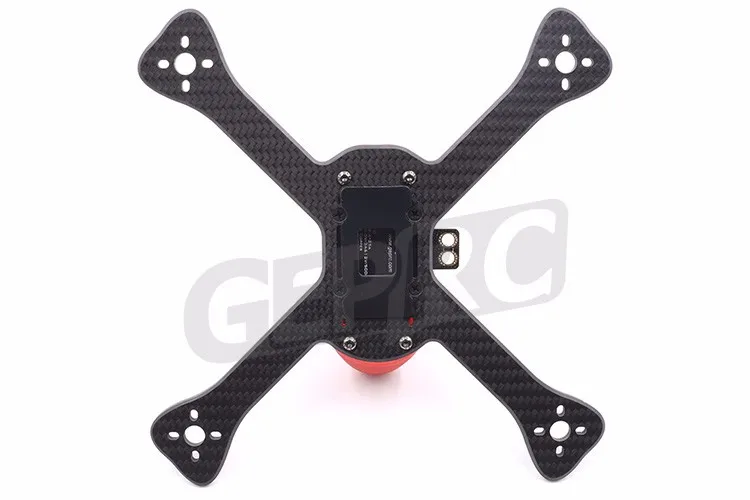

Upper & bottom board:4mm

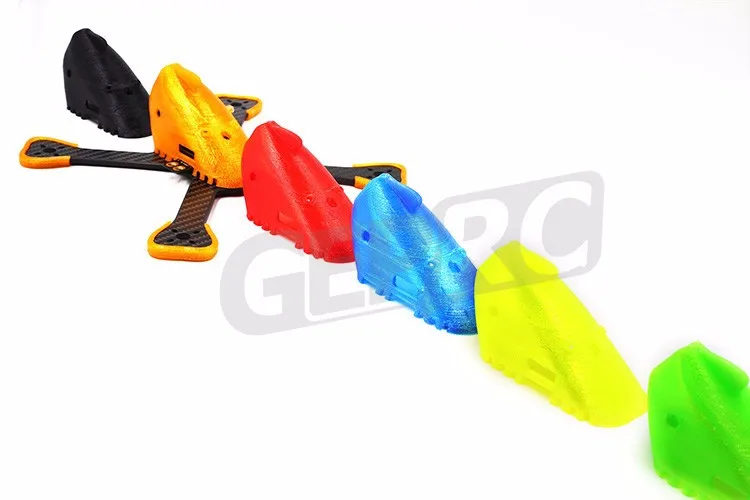

Cover:TPU



Recommand configuration:Not included

Flight control:F3/NAZE32/CC3D

Motor:2204/2205/2206/2305/2306

ESC:20-30A

Porp:5/4/6 inch(BX5/BX4/BX6)

Battery:3s 1300mah - 4s 1300mah



Features:

1.3K high strength ensure the kit strong enough.

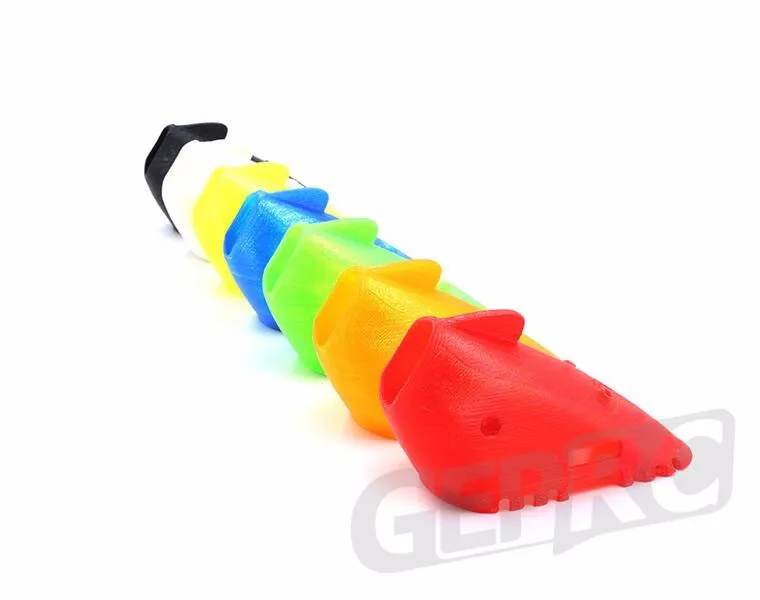

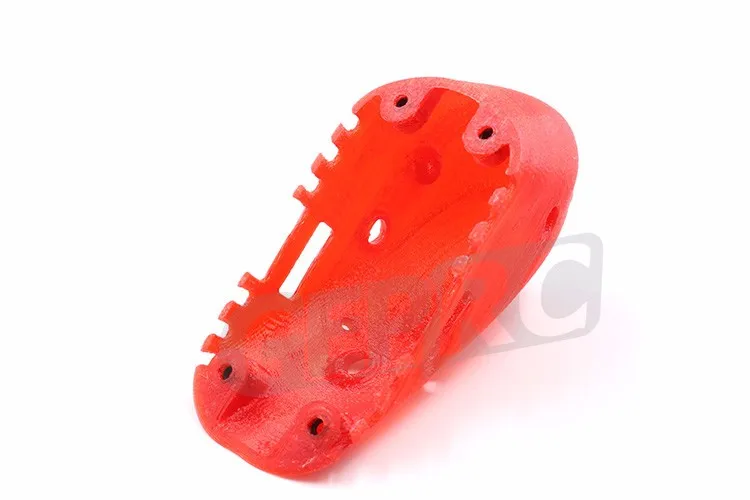

2.TPU cover,which is soft and crashing endurable.

3.Extreamly low windage with streamline engineering cover.

4.5'' 215mm,4'' 190mm,6'' 240mm

5.YFS high strength screws(12.9 degree)

6.Ture X structure.

7.Widely support FPV camera like HS1177,HS1190,Swift,Owl Plus etc.

8.Widen motor room,fish tail like protect it from crashing

9.Adjust angle camera bracket.

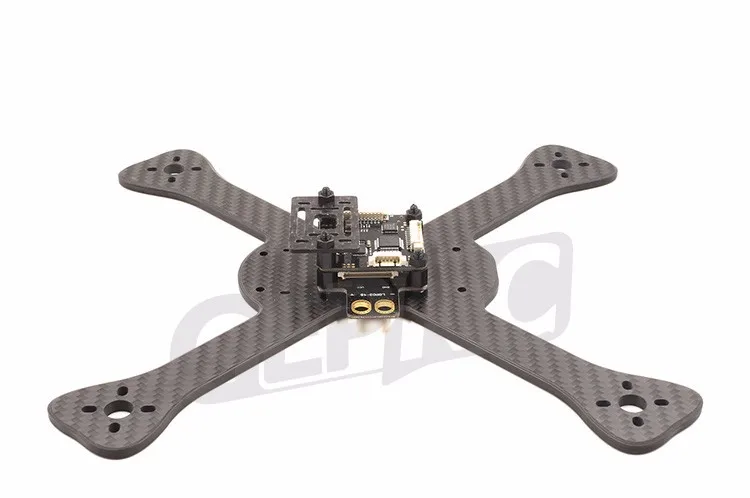

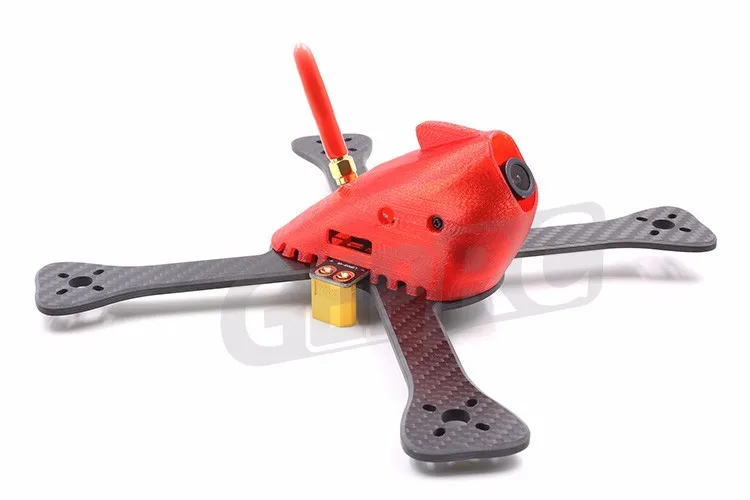

10.A PDB which integrated 5/12V BEC output,XT60 plug.



Motor border kits included(color the same as the hood).



BX4 Shipping List:

GEP-BX4 190mm empty frame * 1 set

Gift: 4045 V2  3 blade propeller * 4 pairs



BX5 shipping list:

GEP-BX5 215mm empty frame * 1 set

Gift: T5045BN V2 3 blade propeller * 4 pairs





BX6 shipping list:

GEP-BX6 240mm empty frame * 1 set

Gift: T5045BN V2 3 blade propeller * 4 pairs
