700TVL 2.8mm 1/4" CMOS Camera
FPV → FPV Cameras → Standart full-size FPV Cameras → 700TVL 2.8mm 1/4" CMOS Camera
700TVL 2.8mm Lens 90 Degree 1/4 Cmos Wide Angle FPV Camera NTSC PAL
Specification:
Item name: FPV Camera
Resolution: 700TVL
Camera size: 25mm*25mm
Format: PAL / NTSC
Lens: Wide-angle 2.8mm (90degree)
Power input: DC 12V
Output: 12V
Image sensor: 1/4 CMOS image sensor
System standard: PAL/NTSC PAL ( H X V ):512X 582 NTSC ( H X V ):542 X 492
Electronic Shutter: PAL= 1/50 - 1/100,000 second NTSCL= 1/60 - 1/120,000 second
Minimum illumination: 0.1Lux (F: 1.2)
SNR: > 48dB (AGC Close)
Gamma: 0.45
Automatic Gain: On / Off
Auto White Balance: On / Off
Lens Mount: C / CS
Video output: 1 Vp-p, 75Ω
Operating temperature range: -10 ℃ to 50 ℃ (maximum humidity 95%)
,,,,,,,,,,,
Specification:
Item name: FPV Camera
Resolution: 700TVL
Camera size: 25mm*25mm
Format: PAL / NTSC
Lens: Wide-angle 2.8mm (90degree)
Power input: DC 12V
Output: 12V
Image sensor: 1/4 CMOS image sensor
System standard: PAL/NTSC PAL ( H X V ):512X 582 NTSC ( H X V ):542 X 492
Electronic Shutter: PAL= 1/50 - 1/100,000 second NTSCL= 1/60 - 1/120,000 second
Minimum illumination: 0.1Lux (F: 1.2)
SNR: > 48dB (AGC Close)
Gamma: 0.45
Automatic Gain: On / Off
Auto White Balance: On / Off
Lens Mount: C / CS
Video output: 1 Vp-p, 75Ω
Operating temperature range: -10 ℃ to 50 ℃ (maximum humidity 95%)
,,,,,,,,,,,Share
Preise für 700TVL 2.8mm 1/4" CMOS Camera in den Läden
Angebote gefunden: 20 (SurveilZone1, AliExpress1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| AliExpress | High stock level | $19 | 1 | $19 | ||
| SurveilZone | $25 | + $2 | 1 | $27 |
Siehe auch
700TVL 2.8mm Camera + TS5828L TX
$22

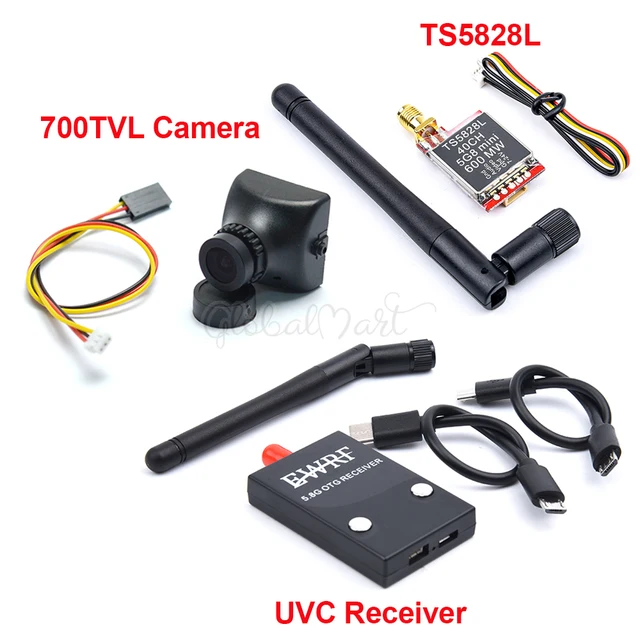

700TVL 2.8mm Camera + TS5828L TX + EWRF 5.8G OTG RX
$40
