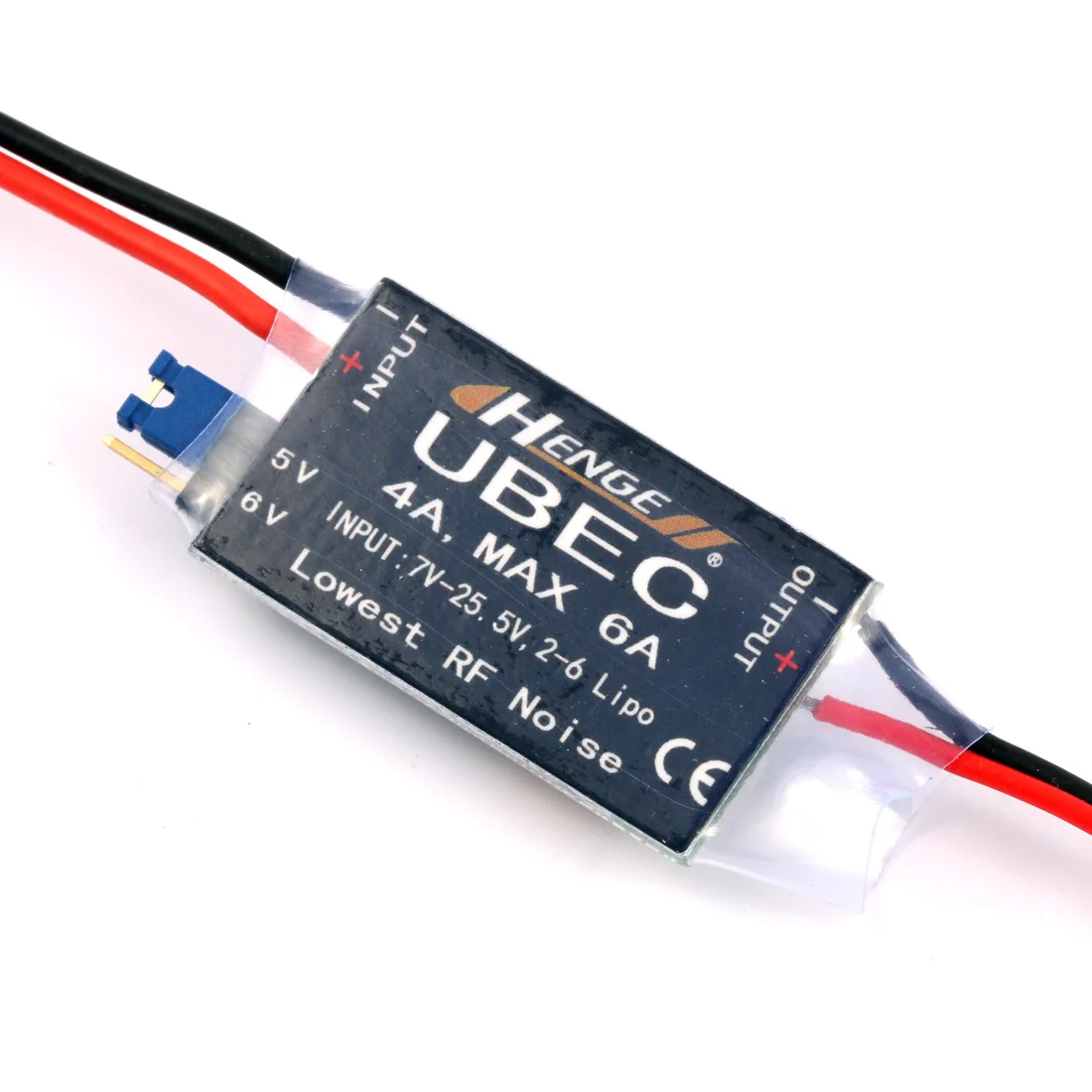

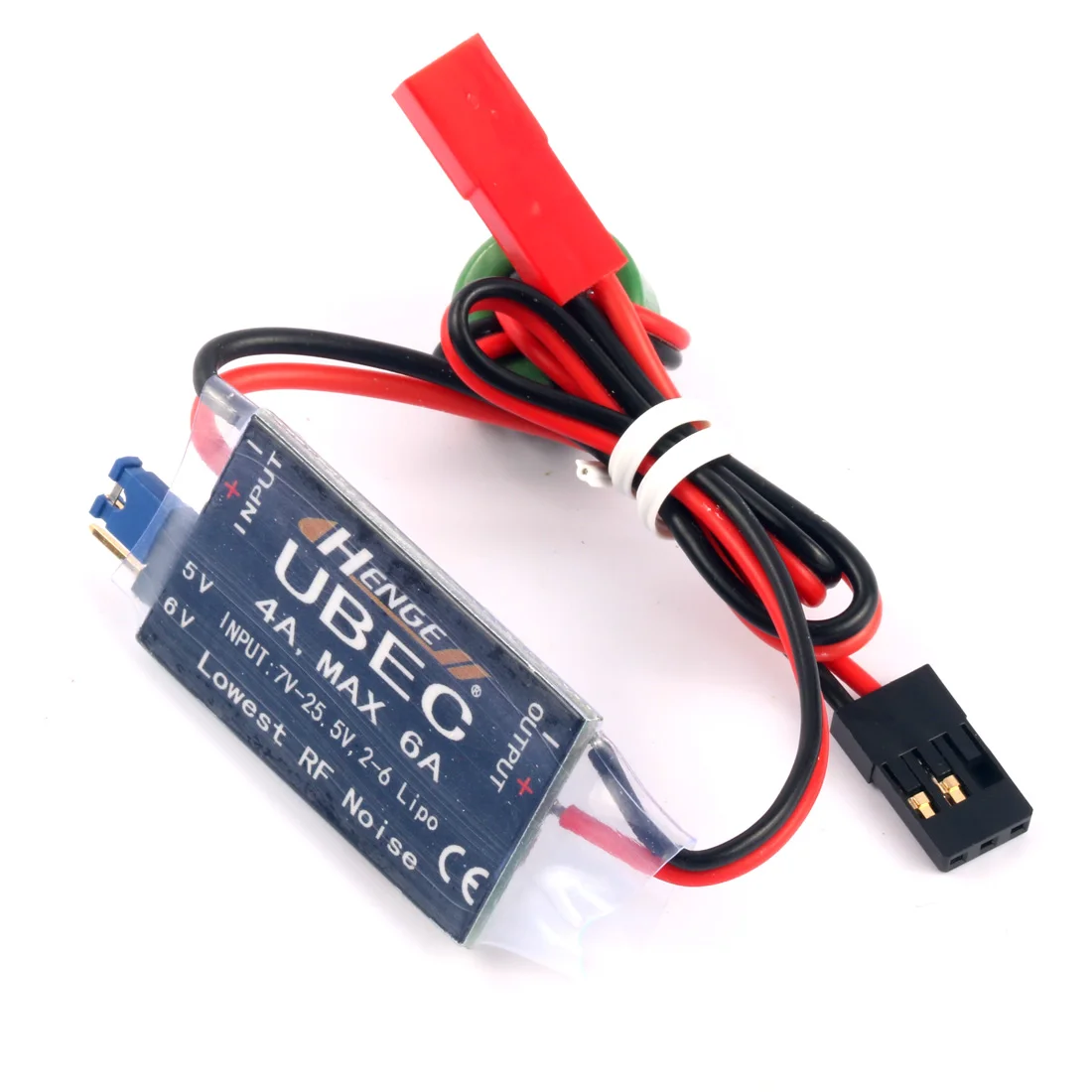

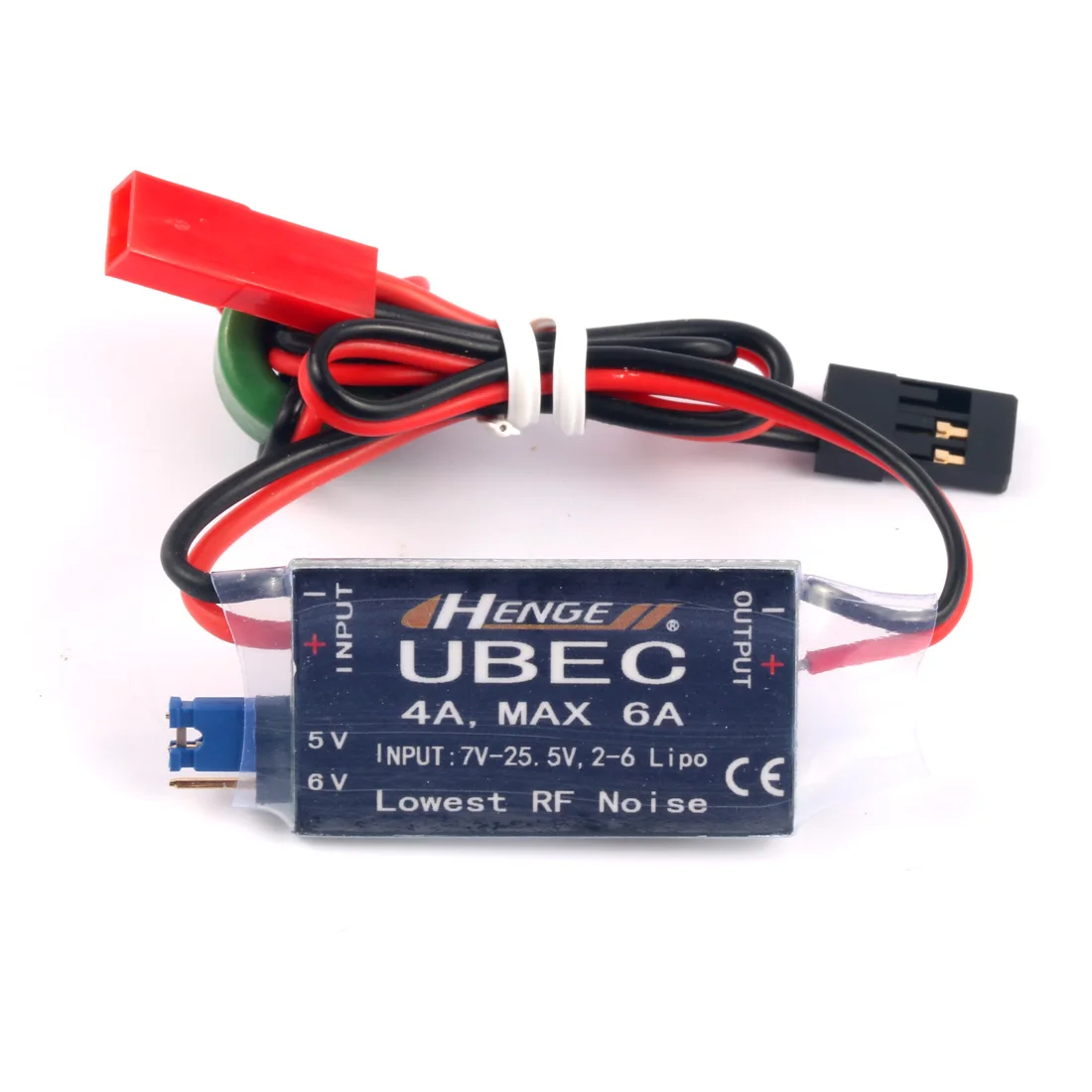

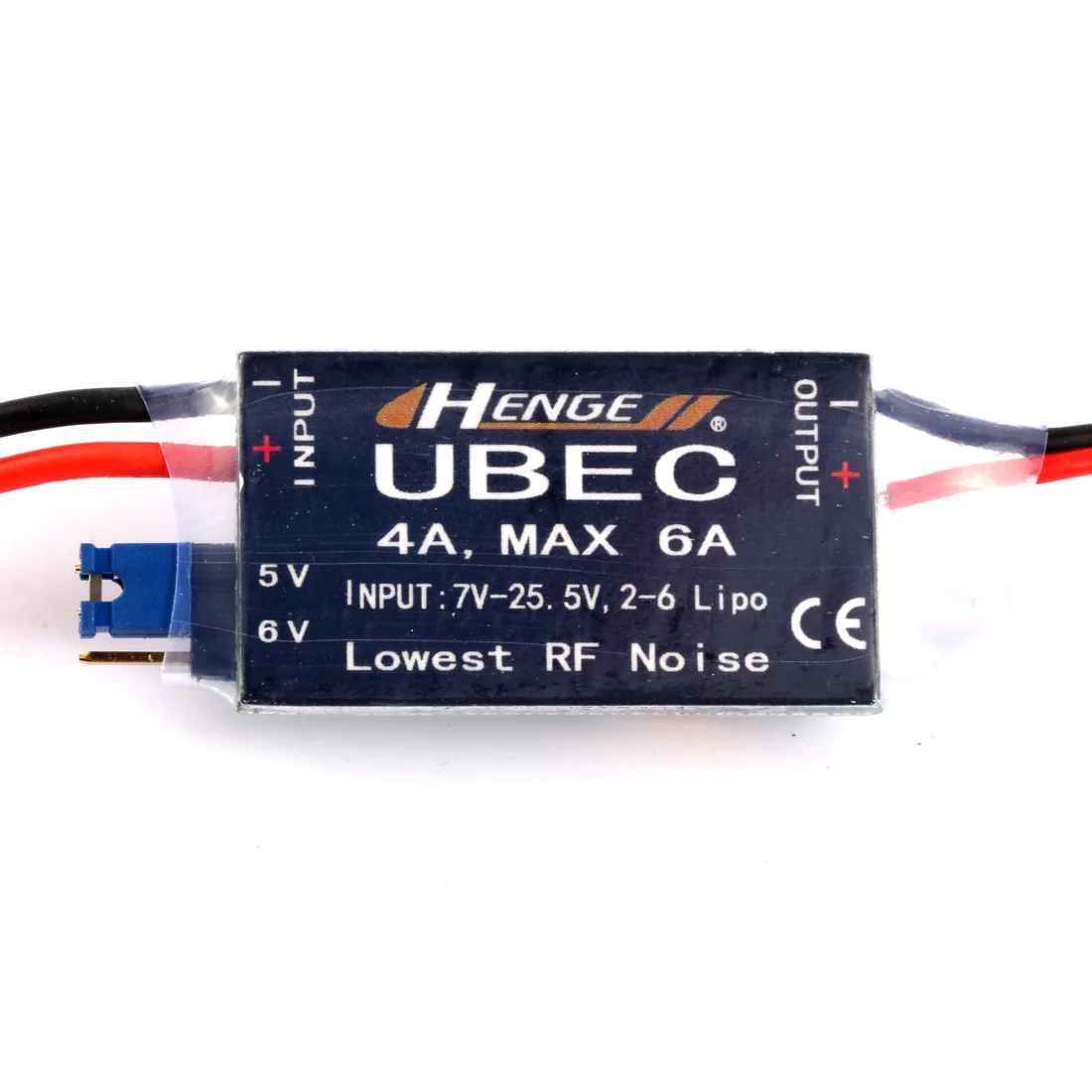

Henge 4A UBEC 5V/6V 2-6S

HENGE 4A UBEC Input 7V-25.5V 2-6S Lipo Output 5V 6V / 4A Continuous Max 6A for RC Helicopter Airplane Car Parts

Specifications:

Output: 5V/4A or 6V/4A (may be too jumper cap switch)
Input: 7-25.5V (2-6 string of lithium battery pack or 6-16 NiMH / Ni-Cd batteries)
Continuous output current: 4A
Peak Output Current: 6A (duration of less than 15 seconds)
Ripple: less than 45mVp p (@ 2A/12V)
Size: 35mm * 20mm * 5.8mm (L * W * H)
Weight: 14g (including wire and the magnetic ring)

 Features:

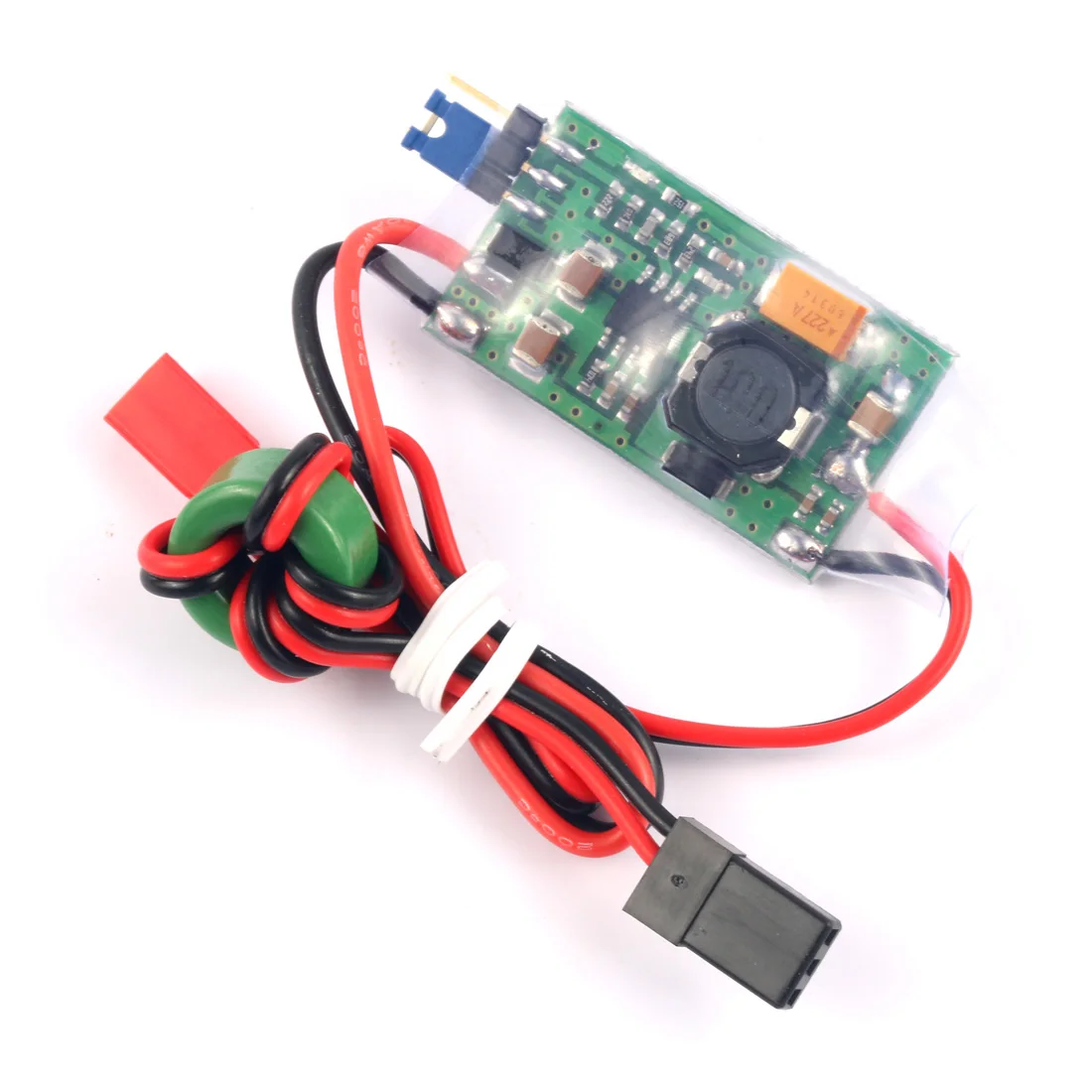

Adopt the most advanced synchronous rectification switching power supply control chip design, with over-current and thermal protection, the chip at maximum efficiency as high as 93%
The small size, light weight;
Output current, continuous output current capacity of 4A peak output current capability of 6A, fully guaranteed equipment, demand for electricity;
The output line to configure the filtering magnetic ring, greatly reduces the electromagnetic interference and ensure the receiver to work;
Has a wide voltage range of 7V-25.5V can be within the normal work;
Has a feature to prevent reverse input polarity, input power supply polarity mistake will not damage equipment;
Has a working state indicator, when the output to normal when the indicator light.
