PX4FLOW V1.3.1 Optical Flow + Sonar module

PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera with MB1043 Ultrasonic Module Sonar for PX4 PIX Flight Control System

Please choose the version you request:

PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera for PX4 PIX PIXHAWK Flight Control System

PX4FLOW V1.3.1 MB1043 Ultrasonic Module Sonar for PX4 PIX PIXHAWK Flight Control System

PX4FLOW V1.3.1 Whole Set Optical Flow Sensor Smart Camera with MB1043 Ultrasonic Module Sonar for PX4 PIX PIXHAWK Flight Control System

Official Introduction : http://pixhawk.org/modules/px4flow


Note:
- MB1043 version has already been welded on sonar
- The newest 1.3.1 version, the same with the original version. the back side has version number, 1.3.1

Introduction:
- PX4Flow is an optical flow smart camera. It has a native resolution of 752x480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivy. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.

Hardware Specifications:
- STM32F405, 168 MHz Cortex M4F (GFLOPS  128 + 64 KB RAM)
- 752 * 480 MT9V034 image sensor, L3GD20 3-axis Gyro
- 16 mm M12 lens (IR block filter)
- Size 45.5 mm x 35mm
- Power consumption 115mA / 5V

Package list:

A: Only Optical Flow meter (without Ultrasonic Module)
- PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera x 1
- Connecting cable x 1

B: Only MB1043 Ultrasonic Module Sonar (without Optical Flow meter)

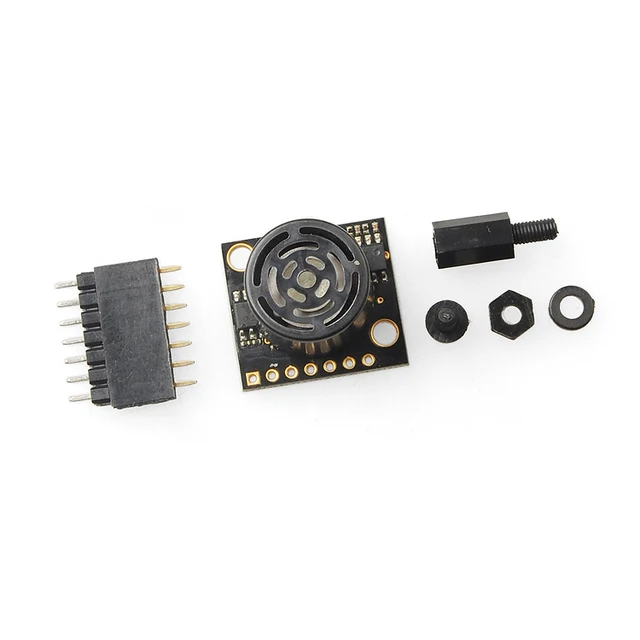

- MB1043 Ultrasonic Module Sonar x 1

C: Combo:  Optical Flow meter with Ultrasonic module
- PX4FLOW V1.3.1 Optical Flow Sensor Smart Camera x 1
- Ultrasonic module x1
- Connecting cable x 1


Seriously Tip:

optical flow sensor is not a hand-play PIX peripherals , if you're not sure if you can complete the seting by yourself separately or not , please carefully orders, do not waste time and money.

With PX4FLOW optical flow,use the serial output, Please short connect this pad:

Connection diagram of MB1043 ultrasonic sonar and PIX4:

Set the parameters shown in picture:
