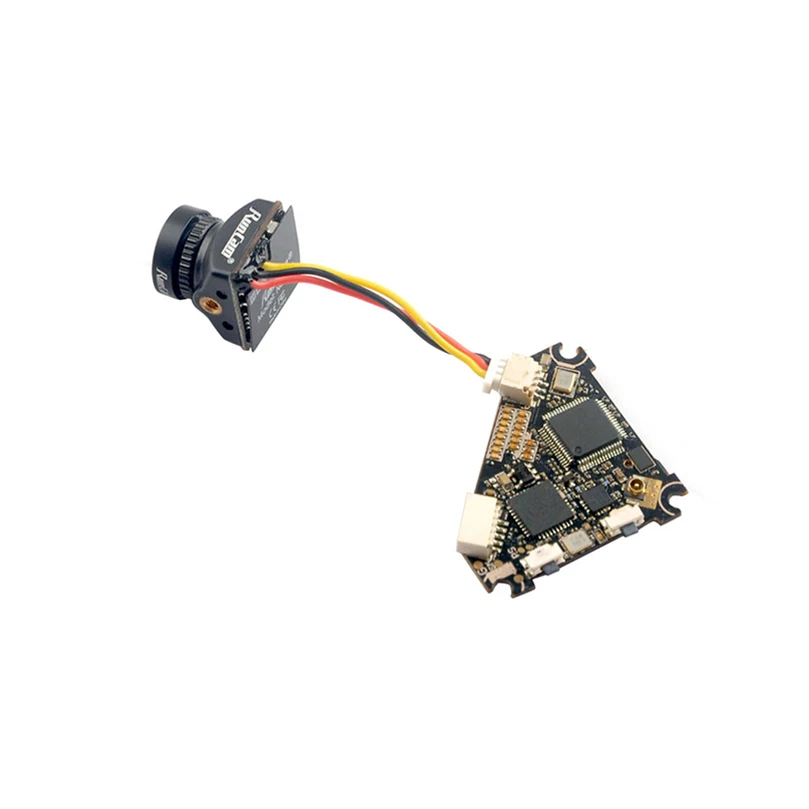

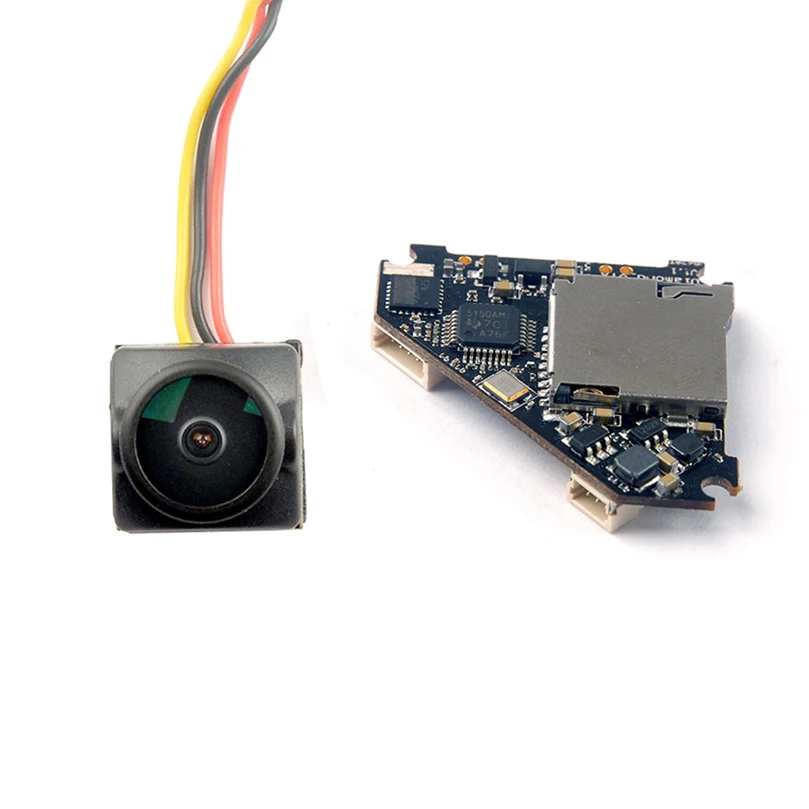

RunCam Nano 2 + Diamond VTX for Larva X / Mobula 7 (HD)

RunCam Nano 2 NTSC FPV Camera with VTX 2.1mm / Diamond VTX FOV 155° 700TVL Nano2 Camera SH1.0 3pin for Larva X Mobula 7 HD

Model: Nano 2

Image Sensor: 1/3" CMOS

Image:4:3

Horizontal Resolution: 700TVL

Lens: 2.1mm(M8) FOV 155°

Signal System: NTSC

S/N Ratio: >50dB

Electronic Shutter Speed: Auto

Auto Gain Control (AGC): Auto

Min. Illumination: [email protected]

D-WDR: Auto

Day/Night: Color

Power: DC 3-5.5V

Current : 110mA@5V [email protected]

Housing Material: ABS

Net Weight: 3.2g

Dimensions: 14x14x16mm ( LxWxH)

Customized for Larva X with SH1.0 3pin

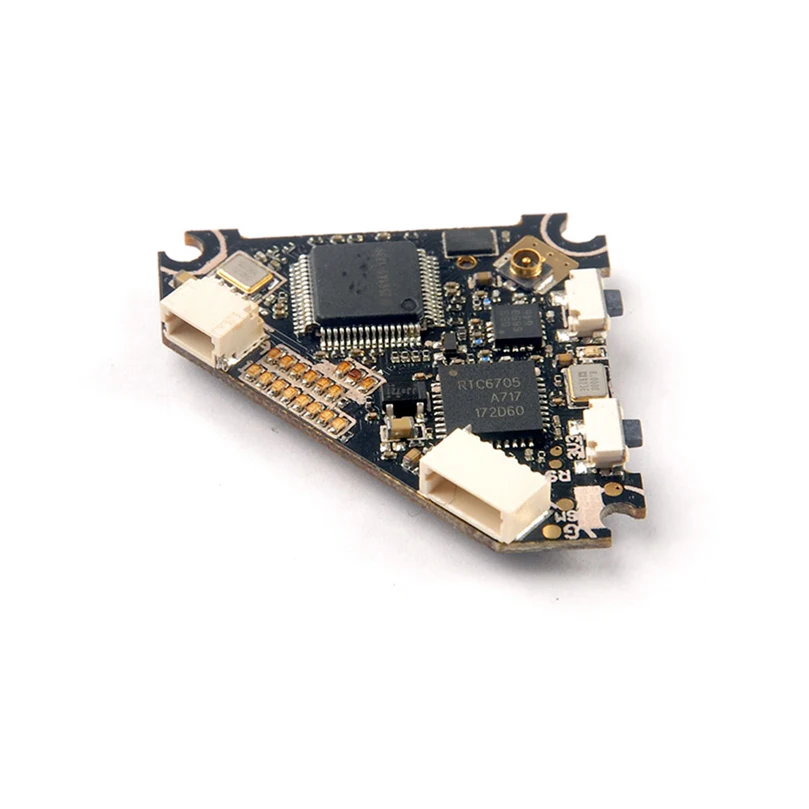

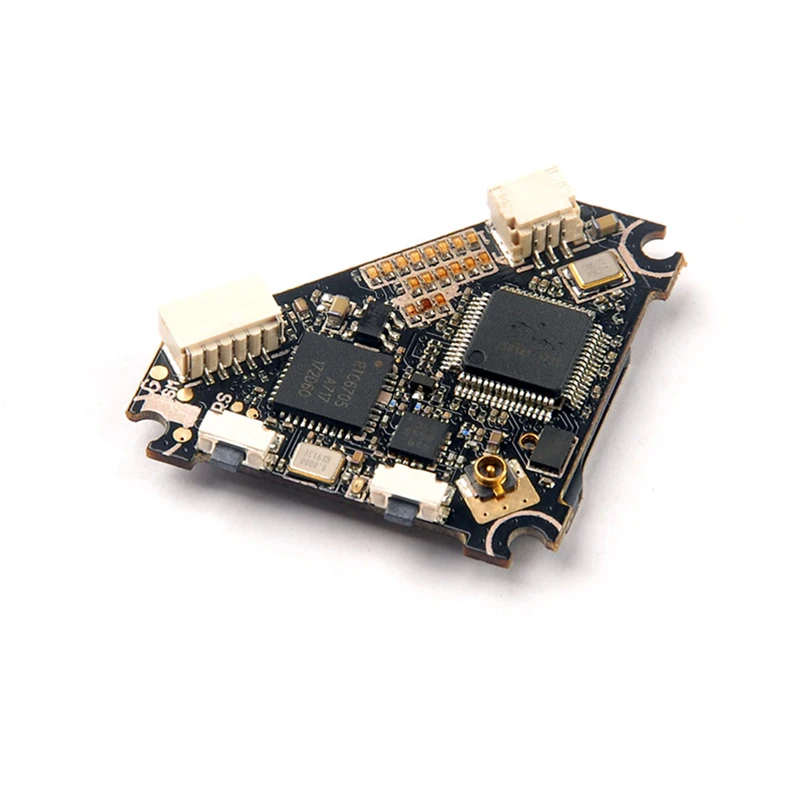

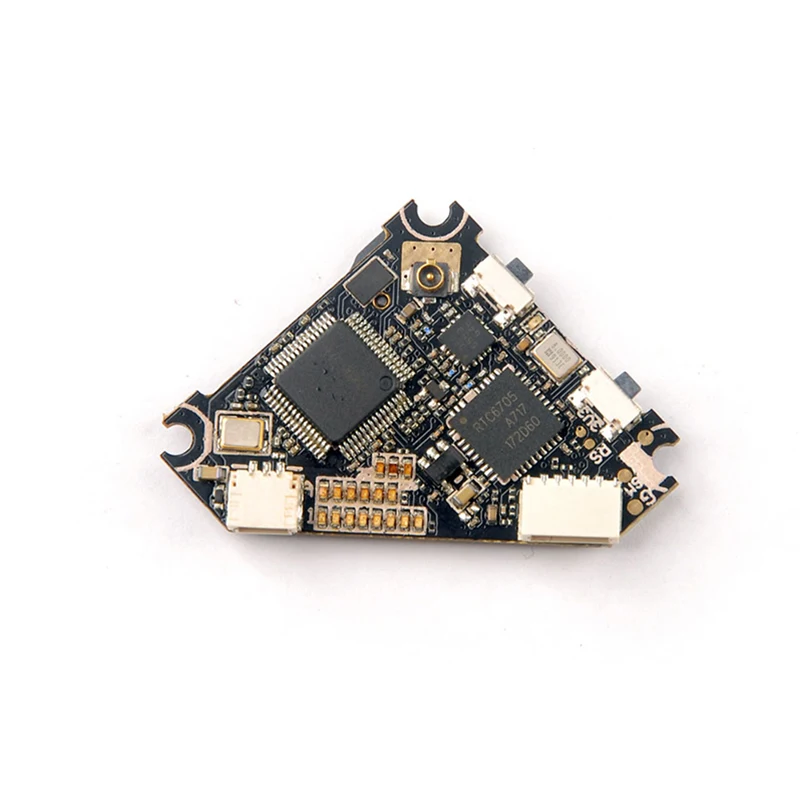

Happymodel Diamond VTX 5.8G 40ch 25mw-200mw Switchable VTX with DVR

Output power: 25~200mw switchable

Frequency: 40CH

Input voltage: 3.3V 5.5V

Current consumption: 250mA~510mA(type)

Antenna: RG178 antenna



U.FL interface

Frequency: 5.8GHz 5bands 40 channels

With Raceband

Smartaudio ready

Weight: 3g without antenna

Video Output Size: VGA (640x480)

Video Output format: NTSC

Record video size : 1280x720 @25FPS

TF Card support: Max.32G

Interface: JST SH1.0 3pin for Camera



JST SH1.0 5pin for Connect with F3/F4 Flight controller

Compress Format: AVI



Features:

Short touch the button to Start/Stop Video recorder

The video will split to 2 minutes automatically

Best for upgrade Mobula7 / Eachine Trashcan

Small size , lighter only 3gram and easy to mount in a regular whoop

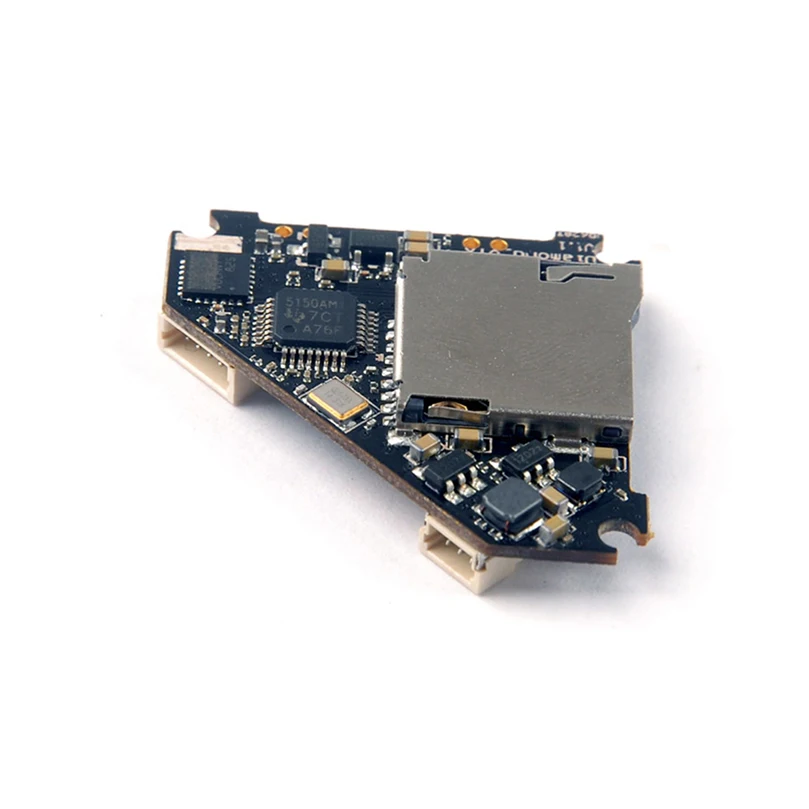

Built-in DVR(Video size 1280x720)

Auto start when power on

Note: Auto-save when Power off is not support, please remember to press the stop button after landing
