Flight controllers
FuriousFPV KOMBINI
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F3 FCs → FuriousFPV KOMBINI$49
Im Laden
Specification:
Item name: Furious KOMBINI F3 F C - DSHOT600 Version
Weight: about 7g
Size: 36*36mm
Mounting hole: 30.5*30.5mm
Screw: M3
Latest Generation F3 Processor Chip
Built In PDB, Massive 150A PDB Current Protection
5S 18.5V Ready
LC Filter & 12v
800mA BEC for VTX
Heavy 2A BEC @ 5V and 0.8A BEC @12V Output
Firmware Perfection via CleanFlight & BetaFlight
Included Sp ektrum Satellite Port
Reverse current protection
Full USB Support
MPU6000 SP1 Chip
Features:

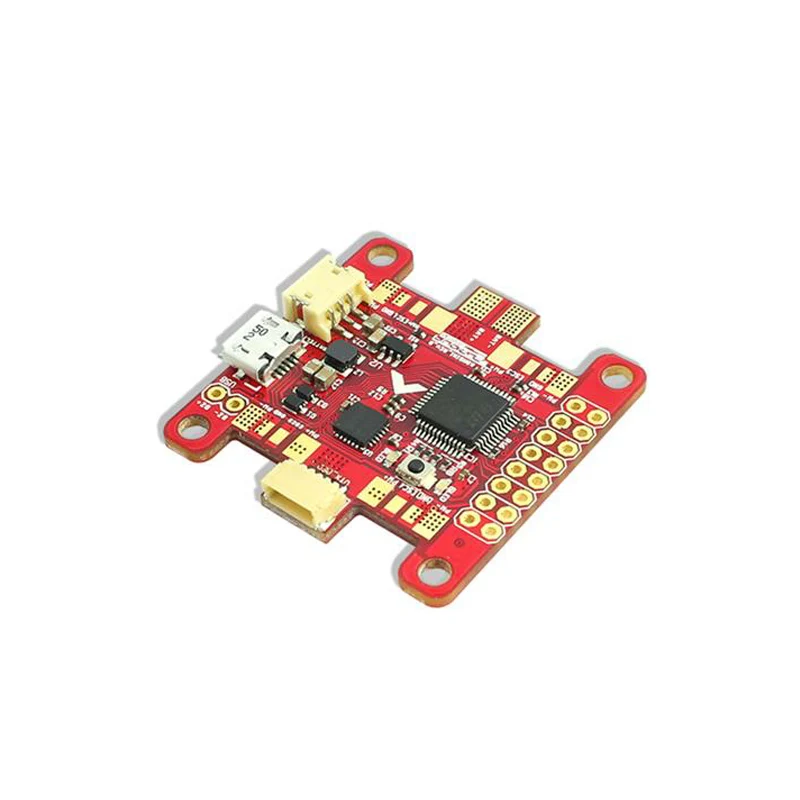

-The KOMBINI incorporates a high quality, gold plated, 4-layer printed circuit board
-All features available at once, Connect your USB/SmartPort/Sbus/GPS/LED Strip/Battery Monitoring/Sonar/Motors
-MPU-6000 SPI-BUS
-F3 Generation CPU, Incorporates an STM32 F3 processor with a hardware floating point unit, providing ultra efficient
flight calculations and a faster ARM-Cortex M4 core.
-Built-in 5V 2A and 12V 0.8A regulator (BEC), have options to choose either using 12V for high voltage VTXs/cameras
or 5V BEC for led strips or 5V VTXs/cameras.
-Full support for OneShot & MultiShot ESC's for ultra easy PID tuning with sharper overall response. Pass through
ESC-BLHELI programming and configuration with VCP USB.
-Race timing transponder ready, Incorporates a built-in race transponder system to track your laps and record your lap times.
-OSD READY, Ready to be combined with an optional compact, stackable OSD system.
-Ultra compatible with Frsky telemetry, SmartPort, and HoTT telemetry support.
-The KOMBINI F C runs CleanFlight, which can be configured to suit your needs utilizing a cross platform GUI (Windows/OSX /Linux)
-Supports SBus, SumH, SumD, Sp ektrum1024/2048, XBus, and PPM with a built-in Sp ektrum satelliteport. No external
inverters required (built in) with receiver powered via flight battery or USB for easy configuration.
-Programmable LED'S, Incorporates an output for multi-colored LED strips.
-Built-in battery voltage monitoring with an input for additional onboard current monitoring.
-Buzzer port for audible warnings and setup notifications.
BETAFLIGHT TARGET: Betaflight_3.1.7_KOMBINI_DS.hex
https://github.com/furiousfpv/betaflight/releases
User manual: Kombini Dshot
Item name: Furious KOMBINI F3 F C - DSHOT600 Version
Weight: about 7g
Size: 36*36mm
Mounting hole: 30.5*30.5mm
Screw: M3
Latest Generation F3 Processor Chip
Built In PDB, Massive 150A PDB Current Protection
5S 18.5V Ready
LC Filter & 12v
800mA BEC for VTX
Heavy 2A BEC @ 5V and 0.8A BEC @12V Output
Firmware Perfection via CleanFlight & BetaFlight
Included Sp ektrum Satellite Port
Reverse current protection
Full USB Support
MPU6000 SP1 Chip
New KOMBINI DSHOT Version Update:
-Remove PPM pin and add TX2 pin For the pi nnacle in simplicity, performance-
-Support DSHOT protocol
-New component for better BEC protection
-New RED color
Features:
-The KOMBINI incorporates a high quality, gold plated, 4-layer printed circuit board
-All features available at once, Connect your USB/SmartPort/Sbus/GPS/LED Strip/Battery Monitoring/Sonar/Motors
-MPU-6000 SPI-BUS
-F3 Generation CPU, Incorporates an STM32 F3 processor with a hardware floating point unit, providing ultra efficient
flight calculations and a faster ARM-Cortex M4 core.
-Built-in 5V 2A and 12V 0.8A regulator (BEC), have options to choose either using 12V for high voltage VTXs/cameras
or 5V BEC for led strips or 5V VTXs/cameras.
-Full support for OneShot & MultiShot ESC's for ultra easy PID tuning with sharper overall response. Pass through
ESC-BLHELI programming and configuration with VCP USB.
-Race timing transponder ready, Incorporates a built-in race transponder system to track your laps and record your lap times.
-OSD READY, Ready to be combined with an optional compact, stackable OSD system.
-Ultra compatible with Frsky telemetry, SmartPort, and HoTT telemetry support.
-The KOMBINI F C runs CleanFlight, which can be configured to suit your needs utilizing a cross platform GUI (Windows/OSX /Linux)
-Supports SBus, SumH, SumD, Sp ektrum1024/2048, XBus, and PPM with a built-in Sp ektrum satelliteport. No external
inverters required (built in) with receiver powered via flight battery or USB for easy configuration.
-Programmable LED'S, Incorporates an output for multi-colored LED strips.
-Built-in battery voltage monitoring with an input for additional onboard current monitoring.
-Buzzer port for audible warnings and setup notifications.
BETAFLIGHT TARGET: Betaflight_3.1.7_KOMBINI_DS.hex
https://github.com/furiousfpv/betaflight/releases
User manual: Kombini Dshot
Share
Preise für FuriousFPV KOMBINI in den Läden
Angebote gefunden: 4 (FuriousFPV1, BuddyRC1, AMainHobbies1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| BuddyRC | In stock | $20 | + $16 | 1 | $36 | |
| FuriousFPV | $49 | 1 | $49 | |||
| AMainHobbies | Out of stock | $49 | 1 | $49 |
