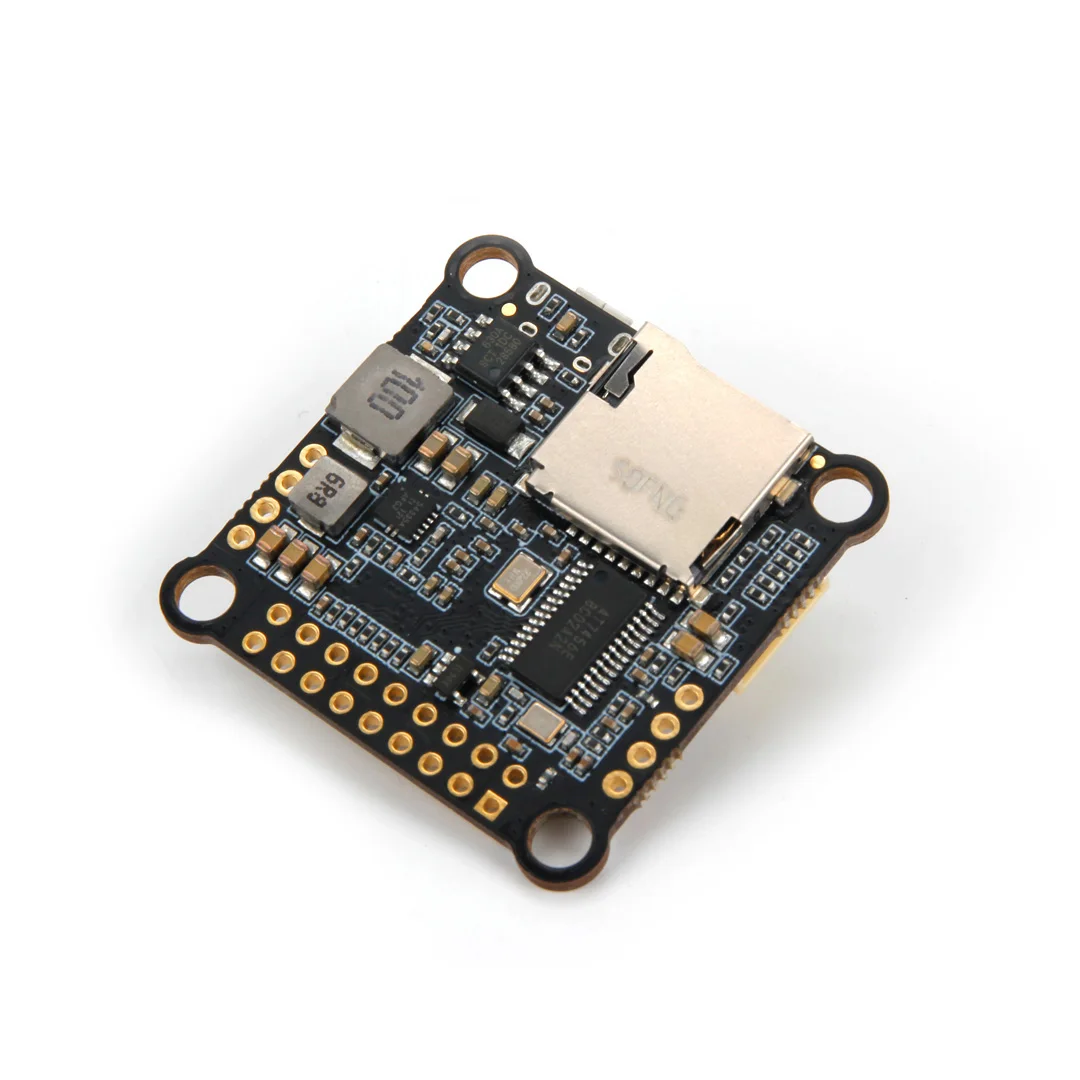

Holybro Kakute F7 HDV STM32F745 with Barometer

Overview

HolyBro Kakute F7 HDV is designed to work with the DJI FPV VTx module. The GH port available on the

board makes it much more convenient for you to connect HolyBro Kakute F7 HDV to the DJI FPV VTx, for

both signal and power.

Specifications:

MCU: STM32F745 32-bit processor

IMU:PMU6000

Barometer: BMP280

USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)

6 hardware UARTS (UART1,2,3,4,6,7)

All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on

any UART without “uninvert hack”.

Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not

supported.

TF card for Blackbox logging

Dimensions: 35x35mm

Mounting Holes: Standard 30.5mm square to center of holes

Weight: 8g

Features:

• Supports Betaflight, Butterflight, and Cleanflight.

• High-performance / low-noise IMU. MPU6000 with 6-axis gyro and accelerometer.

• Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA for use with external

GPS/magnetometer units.

• Dedicated bootloader button for easy firmware flashing.

• Low-profile design fits into even very compact frames.

• Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad

only).

• Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the

KAKUTE F7 HDV monitors voltage directly from the power supply.

• Filtered voltage output for clean, noise-free video. 2 On-board regulators output 5V and 8V. 5V

output up to 1.5A to power peripherals such as receiver, FPV camera, or LED strip. 8V output up

to 2A to DJI FPV VTx.

• Supports BLHeli pass-through for easy ESC upgrade and configuration.
