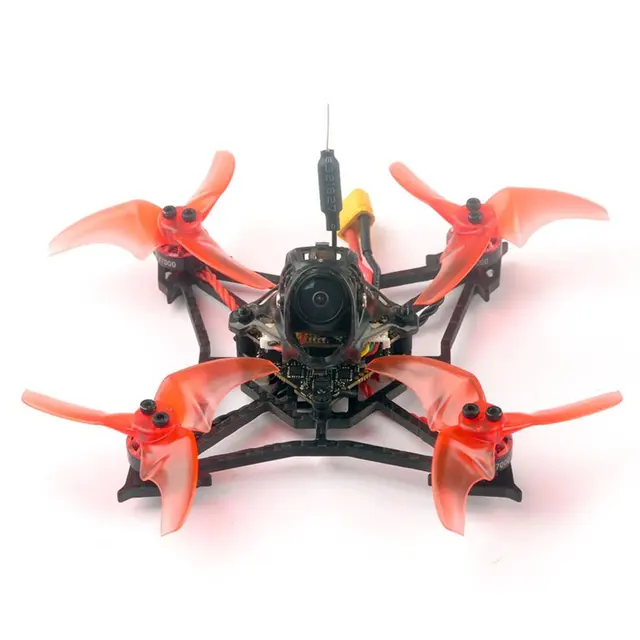

Happymodel Larva X 2.5" 100mm F4 3S DSM2/DSMX

Happymodel Larva X 100mm Crazybee F4 PRO 2-3S 2.5 Inch FPV Racing Drone BNF w/ Runcam Nano2 Camera

Specification:
Brand Name: Happymodel
Model: Larva X
Item Name: 100mm 2-3S 2.5 Inch FPV Racing Drone
Wheelbase: 100mm
Drone Version: BNF ( With Receiver & Without Battery)

Happymodel EX1103 7000KV Motor	Mode: EX1103 KV options: KV7000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:3mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5x16mm Weight:3.7g
Crazybee F4 Pro V3 Flight Controller	(Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS (No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX MCU: STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 (SPI connection) Board Size: 28.5x 28.5mm Power Supply: 2-4S battery input (DC 7-17V) Built-in 10A (each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable) No RX version need to add external Receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 70A Current meter scale set to 470 Built-in 5V 1A BEC Built-in voltage detection
Onboard 10A 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 2-4S LiPo/LiPo HV (7v/17v) Con. Current: 10A Burst Current: 12A (5S) Support BLHeliSuite programmable Factory firmware: F_H_40_REV16_5.HEX Default protocol: DSHOT600
Onboard Frsky D8 Receiver Version ( Internal Frsky NON-EU receiver Version)	SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Internal Flysky Receiver Version	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support
External TBS Crossfire Receiver version	CRSF Protocol , Official TBS transmitter compatible
External DSMX Receiver version	Frequency range: 2.403-2.479Ghz Input power: 3.3V -- 5V Response time: 22ms / 11ms Resolution: 1024/2048 Display method: LED Operating voltage: 3.3V Working current: 60MA Size: 18mm*13mm*5mm Weight: 0.9 g Antenna length: 30mm Data format: Serial port Protocol: DSM2/DSMX Distance: no ground interference (1 m from the ground ) more than 300m
External Frsky RXSR Receiver version	Weight: 1.5g Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel) Operating Voltage Range: 3.5V~10V Operating Current:70mA@5V Firmware Upgradable Compatibility: FrSky X Series modules and radios in D16 mode Could support Frsky New ACCST Protocol ( Upgrade firmware)
Happymodel Diamond_VTX	Output power: 25~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 250mA~510mA(type) Antenna: RG178 antenna U.FL interface Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight: 3g without antenna Video Output Size: VGA (640x480) Video Output format: NTSC Record video size : 1280x720 @25FPS TF Card support: Max.32G Interface: JST SH1.0 3pin for Camera JST SH1.0 5pin for Connect with F3/F4 Flight controller Compress Format: AVI
Runcam NANO2 FPV Camera	Model: Nano 2 Image Sensor: 1/3" CMOS Horizontal Resolution: 700TVL Lens: 2.1mm(M8) FOV 155° Signal System: NTSC / PAL S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: [email protected] D-WDR: Auto Day/Night: Color Power: DC 3-5.5V Current : 110mA@5V [email protected] Housing Material: ABS Net Weight: 3.2g Dimensions: 14x14x16mm ( LxWxH)
Recommend Lipo Battery ( All Version Don't Include)	Recommend 2S 450mAh Lipo / 3S 300mAh/350mAh Lipo Battery

Package Included:
