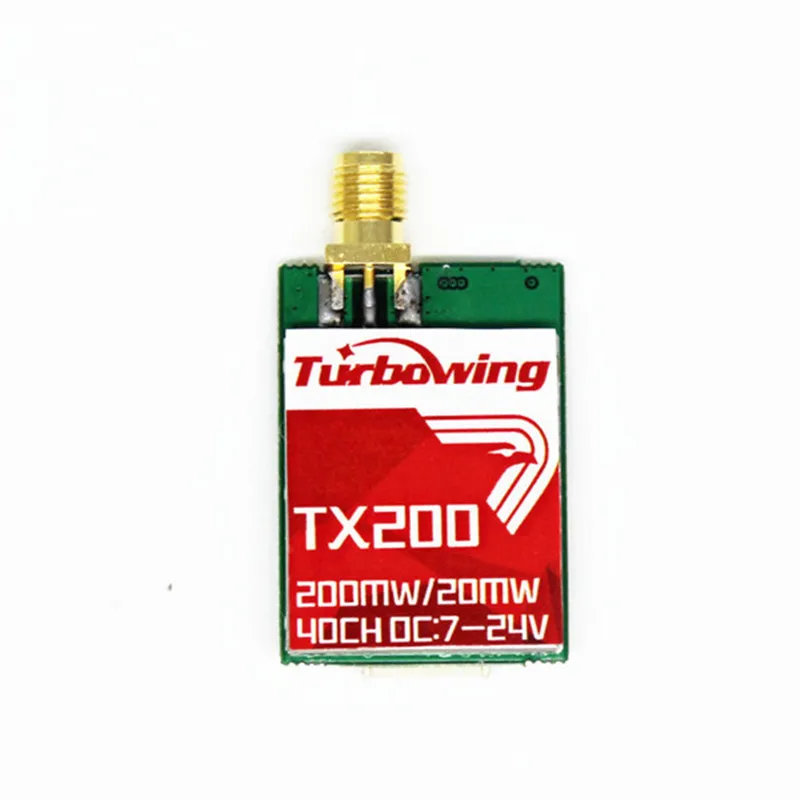

Turbowing TX200 5.8G 200mW

Specification:

Power: 200mW / 20mW, 40 frequency dual power

Operating voltage: 7-24V DC
Working current: 190mA / 12V

Operating current: High power: 250mA @ 12V Low power: 100mA @ 12V

Transmission frequency: 5.6-5.9Ghz

Working temperature: -10- + 85 ℃

Video bandwidth: 8M

Product weight: 5g (without antenna)

Dimension: 30.5 x 21.6 x 7 mm

Transmitter interface: RP-SMA

Reference distance: 500-1000 meters, use the mushrooms antenna to transmit and flat antenna to receive can enhance 2-3 times distance

Key Usage Instructions:

1. Press and hold the key for 2 seconds to enter the frequency group setting or exit frequency group setting,

2. Change the number of channels 1 to 8, enter the frequency settings and press the key to change the frequency group, from A to E

Note: Red and black lines is for power, yellow and black is for the video line

Features:

Good anti-interference, wireless transmission distance is far

Dual power, zero delay, 40CH, ultra-light

Package included:

1 × transmitter module

1 × power and signal cable

1 x antenna

1 × manual
