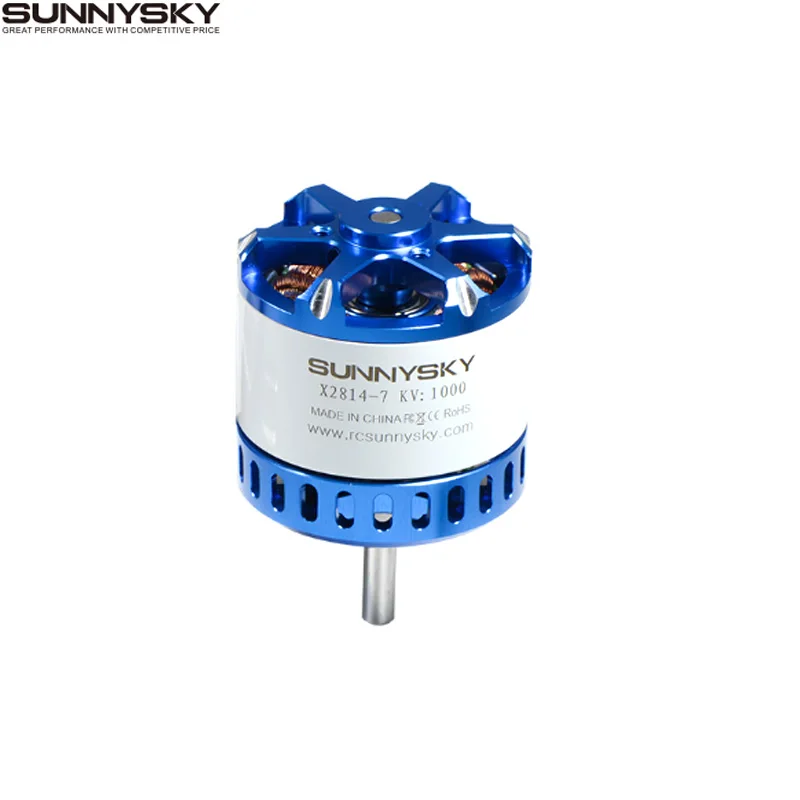

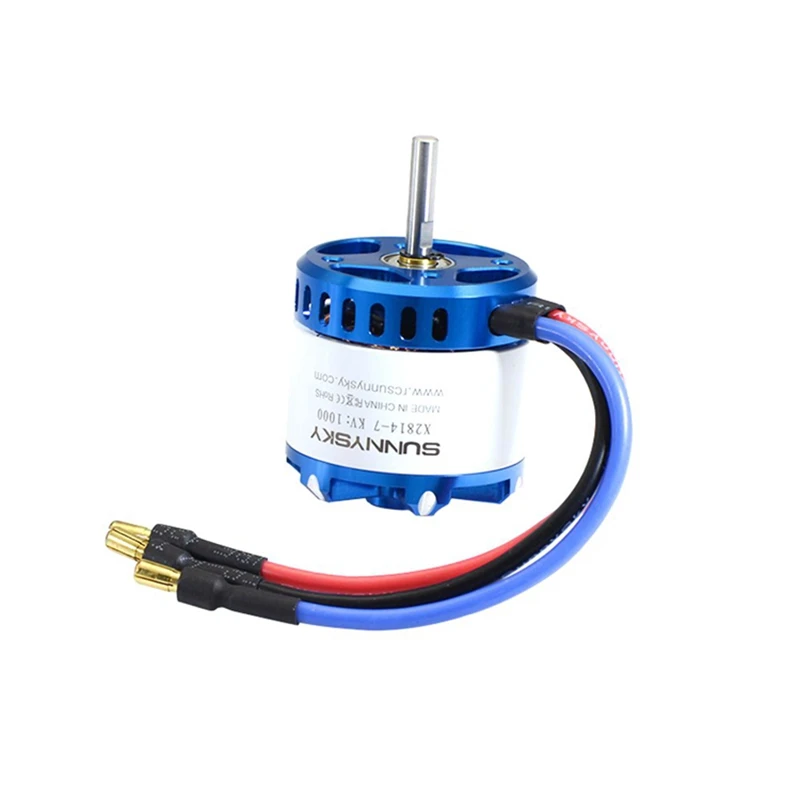

SunnySky X2814 III 900KV
Multirotors → Motoren und Zubehör → 28xx motors → SunnySky X2814 III 900KVDescription:
Brand Name: SunnySky
Item Name: Brushless Motor
Series Name: X2814-III
KV: KV900,KV1000,KV1200,KV1400 (optional)
Color: Blue
Specifications:
KV | 900 | 1000 | 1200 | 1400 |
Stator Diameter | 28mm | |||
Stator Thickness | 14mm | |||
No. of Stator Arms | 12 | |||
No. of Rotor Poles | 14 | |||
No-Load Current (A/10V) | 1.2A | 1.3A | 1.7A | 2.3A |
Motor Resistance | 33.6mΩ | 35.5mΩ | 21.3mΩ | 15.9mΩ |
Max Continuous Current | 50A/30s | 55A/30s | 55A/30s | 80A/30s |
Max Continuous Power | 680W | 750W | 815W | 1180W |
Weight | 108g | 113g | 110g | 109g |
Rotor Diameter | 35mm | |||
Body Length | 36mm | |||
Max Lipo Cell | 3-4S | |||
Recommended ESC | 40-60A | 40-60A | 50-60A | 80A |
Recommended Prop(inch) | APC11*5.5, APC13*6.5 APC11*8, APC13*8 | APC11*5.5, APC13*6.5 APC12*6, APC12*8 | APC11*5.5, APC1050, APC9060 | APC8060, APC9060 |
Applicable Aerobatic Airplane Weight | 1200g--1400g (3S APC13x6.513x8)(4S APC11x5.5APC11x7APC11x8) | 1200g--1400g (3S APC12x612x8)(4S APC11x5.5) | 1000g-1300g | 1000g-1400g (4S APC9060APC8060) |
Applicable 3D Airplane Weight | 800g-1200g (3S APC13x6.513x8) | 800g-1200g (3S APC13x6.512x612x8) | / | / |
Tech Specs:
KV900, Click Here
KV1000, Click Here
KV1200, Click Here
KV1400, Click Here
Package Included:
1x SunnySky X2814-III Brushless Motor
1x Accessories
KV900, Click Here
KV1000, Click Here
KV1200, Click Here
KV1400, Click Here
Package Included:
1x SunnySky X2814-III Brushless Motor
1x Accessories
