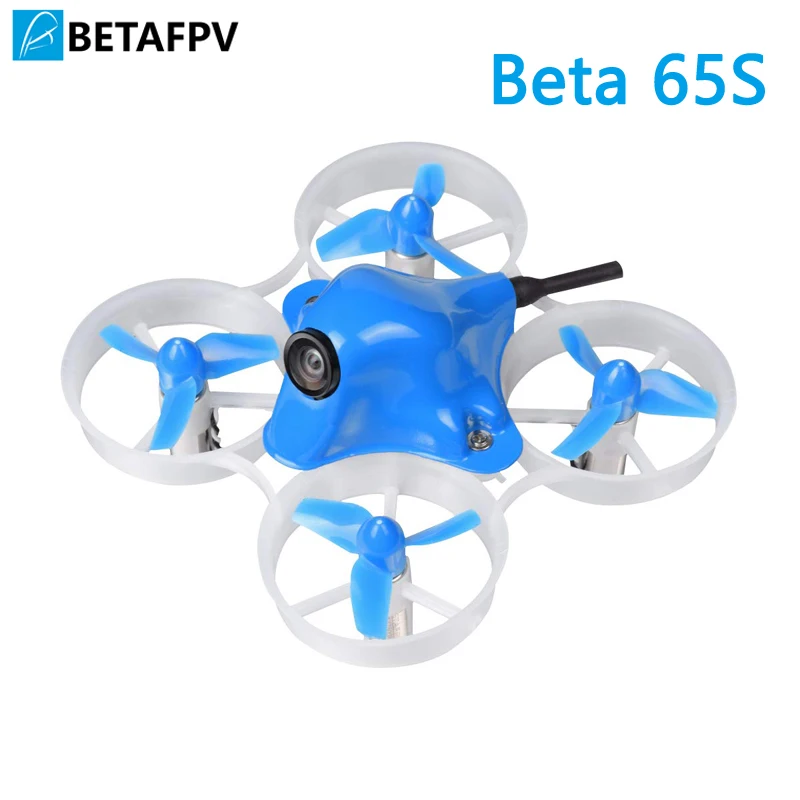

BetaFPV Beta65S PNP

Beta65S all versions are now updated to F4 Brushed FC or F4 Brushed No RX FC or F3 Flysky FC or F4 Brushed FC (DSMX RX) with Z02 Wire Connected Camera (25 degree)!!! The table below shows the FC and RX that come with the drone according to the version you choose.

Note: The SPI Frsky RX is FCC version.

• Motors: 6x15mm -> 7x16mm brushed motors

Here is the size comparson between Beta65/65S, Beta75/75S and Beta85 drone.

Tip: If you are Spektrum DXe radio transmitter or OrangeRX RF module users and find that you can't bind successfully, please create a ticket to contact us.

Bullet Point

• More punch on throttle with faster 19000KV 7x16mm motors and 3-blade propellers.
• Great alternative to popular regular Tiny Whoop quadcopter.
• Provide 3 receiver version for choice, including SPI Frsky Rx, DSMX Rx, SPI FUTABA Rx and Flysky Rx.
• BETAFPV Z02 AIO vtx camera with 48 channels in total.

Specification

• Frame: 65s frame V4
• Weight: 25g (without battery)
• Flight Controller: BETAFPV F4 Brushed FC / F4 Brushed NO RX FC / F3 Flysky FC / F4 Brushed FC (DSMX RX)
• Motor: 7x16mm Coreless Brush Motor, 19000KV
• Receiver: SPI Frsky D16 potocol / SPI FUTABA RX / SPI Flysky RX / Native DSMX RX
• Camera : Z02 Camera
• Power connector: JST-PH 2.0 connector, AKA PowerWhoop connector
• Batterry: 4.35V 260mAh Lipo battery
• Propeller: 31mm 3-blade propeller (0.8 shaft)
• Flight time: 3 min 30 second

Frsky Rx Version

The Frsky version support both D8 & D16 protocol. The SPI Frsky Receiver is FCC version. So if you are EU-LBT firmware users and want to bind to the SPI Frsky Receiver, please read this article.

Find out which firmware you have on your radio.

About how to bind the radio, please check Support Helpdesk

DSMX Rx Version

The DSMX version now comes with F4 Brushed FC (Native DSMX RX). It supports DSM2 and DSMX protocol both. Compatible with all of the DSM2 or DSMX model aircraft models remote control, such as JR, SPEKTRUM Horizon remote control.

About how to bind the radio, please check Support Helpdesk.

If you occur the issue of short range, setting your radio transmitter to DSM2 will solve the problem.

Troubleshooting - Loss Radio Connection Easily

Tip: If you are Spektrum DXe radio transmitter or OrangeRX RF module users and find that you can't bind successfully, please create a ticket to contact us.

For some Spektrum radio transmitter like DX6i/DX6e etc, the DSMX receiver may have a horrible range with your radio transmitter, please change the mode to DSM2 (DSMX in default). This issue is figured out by Micro Motor Warehouse.

Flysky Rx Version

The Flysky version is using the F3 Flysky FC.

The SPI Flysky receiver is compatible with almost ALL Flysky radios(e.g. FS-I6/FS-I6S) or Flysky compatible transmitter like Turnigy Evolution etc

SPI Flysky Receiver

This FC board has a build-in SPI Flysky receiver. You should choose the SPI RX support in the Betaflight GUI. In default, it support Flysky AFHDS 2A protocol. Below is the correct configuration in Betaflight GUI.

Binding Procedure

Note: the red receiver LED will turn off when in successful connection.

• Click the bind-button meanwhile powering on the board, either by connecting the battery or USB power. Then the receiver will enter bind mode, indicated by red receiver LED flashs quickly.
• Now, on the radio, enter the bind status(or what it takes to enter bind status). This receiver only support AFHDS 2A mode and does not support AFHDS mode, please turn on this mode in your radio transmitter before use.
• The red receiver LED should turn off when binding is completed and successful.

How to set up smart audio vtx control?

Multirotor Guide gives you the most straightforward explanation

Package

• 1 * Beta65S Micro FPV Quad
• 1 * BETAFPV 260mAh 1S Lipo Battery
