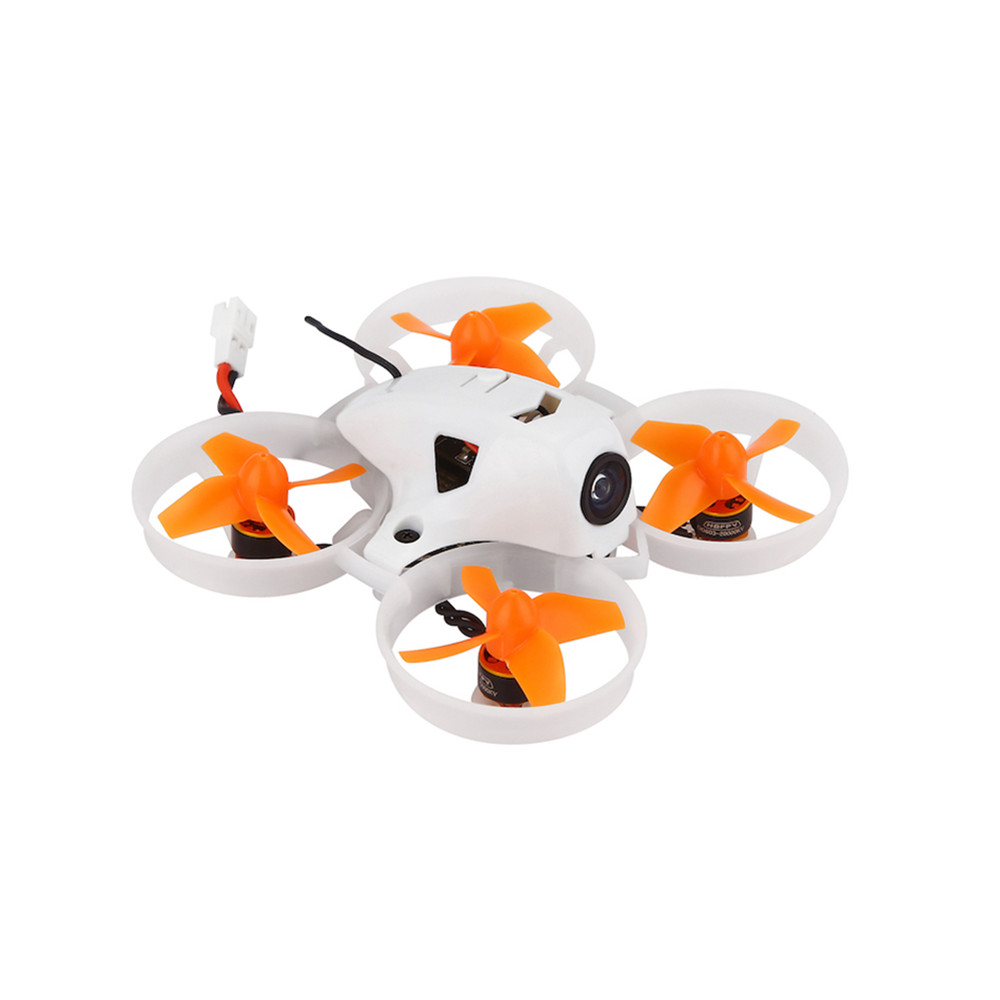

HB65S 65mm 1S Brushless RC FPV Racing Drone PNP BNF F3 OSD 25mW 800TVL 0603 20000KV Motor
Specification:
Item name: HB65S 65mm 1S FPV racing drone
Wheelbase: 65mm
Frame structure: true X
Weight: about 22g (without battery)
Recommed flight weight: <30g (with battery)
Flight time: 2-4mins (260mAh)
Flight controller: F3, built-in OSD
ESC: 1S 5A 4in1 Dshot
Motor: 0603 20000KV
Propeller: 31mm 4-blade 1.0mm mounting hole (2pairs: orange)
VTX+camera: 25mW 800TVL 150°
battery: 1S 260mAh 30C HV
Receiver: without receiver/ DSMX/ FrSky D8/ FS-RX2A/ SFHSS+D16 receiver(option)
F3 OSD flight controller:
Item name: BF3-OSD-1S
Board size: 28*28mm
Mounting hole: 36*36mm, 2.5mm hole diameter
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: SPI sensor MPU-6000
Firmware: Betaflight_3.2.x_OMNIBUS
Power supply: 1S
Built-in 5V/0.5A BEC
Built-in BF OSD
Built-in LC filter
Support programmable LED
Supports BLheli suite ESC programme
With buzzer port
Specification:
Item name: HB65S 65mm 1S FPV racing drone
Wheelbase: 65mm
Frame structure: true X
Weight: about 22g (without battery)
Recommed flight weight: <30g (with battery)
Flight time: 2-4mins (260mAh)
Flight controller: F3, built-in OSD
ESC: 1S 5A 4in1 Dshot
Motor: 0603 20000KV
Propeller: 31mm 4-blade 1.0mm mounting hole (2pairs: orange)
VTX+camera: 25mW 800TVL 150°
battery: 1S 260mAh 30C HV
Receiver: without receiver/ DSMX/ FrSky D8/ FS-RX2A/ SFHSS+D16 receiver(option)
F3 OSD flight controller:
Item name: BF3-OSD-1S
Board size: 28*28mm
Mounting hole: 36*36mm, 2.5mm hole diameter
Processor: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: SPI sensor MPU-6000
Firmware: Betaflight_3.2.x_OMNIBUS
Power supply: 1S
Built-in 5V/0.5A BEC
Built-in BF OSD
Built-in LC filter
Support programmable LED
Supports BLheli suite ESC programme
With buzzer port
SBUS or DSM receiver input, please configurate RX3 as input interface.
DSM receiver powered from 3.3V
SBUS and PPM from 5V
5A 4in1 Dshot ESC:
Item name: BS5A
Size: 28*28mm
Mounting hole: 36*36mm, 2.5mm hole diameter
Firmware: BLHeli_S 16.6
Continuous current: 5A
Burst current: 6A (5s)
Power supply: 1S lipo(3.3-4.35V)
Support Dshot150/300/600, PWM, Oneshot125, Multishot
0603 20000KV motor:
Item name: HBFPV 0603
KV: 20000KV
Stator diameter: 6mm
Stator height: 3mm
Shaft diameter: 1mm
Working voltage: 1S(3.0-4.35V)
Max thrust: 24g
Weight: 1.6g
VTX+camera:
Item name: 199C
Output power: 25mW
Lens: HD800TVL/FOV: 150°
Channel: 16CH/ 48CH(button switching)
Antenna: hose antenna
Battery:
Capacity: 260mAh
Voltage: 1S, 3.8-4.35V(HV)
Continuous Discharge Rate: 30C/60C
Connector: PH2.0-2P
Weight: about 6.9-7g
Package included:
PNP version:
1x HB65S frame kit
1x 0603 20000KV motor
1x F3 OSD+5A 4in1 fytower
1x 25mW AIO camera VTX
1x 260mAh 30C HV battery
2x pairs 31mm 4-blade orange propeller
1x 1S HV charger
1x mini screwdriver
1x propeller puller
BNF version:
1x HB65S frame kit
1x 0603 20000KV motor
1x F3 OSD+5A 4in1 fytower
1x 25mW AIO camera VTX
1x 260mAh 30C HV battery
1x DSMX/ FrSky D8/ FS-RX2A/ SFHSS+D16 receiver(option)
2x pairs 31mm 4-blade orange propeller
1x 1S HV charger
1x mini screwdriver
1x propeller puller
5A 4in1 Dshot ESC:
Item name: BS5A
Size: 28*28mm
Mounting hole: 36*36mm, 2.5mm hole diameter
Firmware: BLHeli_S 16.6
Continuous current: 5A
Burst current: 6A (5s)
Power supply: 1S lipo(3.3-4.35V)
Support Dshot150/300/600, PWM, Oneshot125, Multishot
0603 20000KV motor:
Item name: HBFPV 0603
KV: 20000KV
Stator diameter: 6mm
Stator height: 3mm
Shaft diameter: 1mm
Working voltage: 1S(3.0-4.35V)
Max thrust: 24g
Weight: 1.6g
VTX+camera:
Item name: 199C
Output power: 25mW
Lens: HD800TVL/FOV: 150°
Channel: 16CH/ 48CH(button switching)
Antenna: hose antenna
Battery:
Capacity: 260mAh
Voltage: 1S, 3.8-4.35V(HV)
Continuous Discharge Rate: 30C/60C
Connector: PH2.0-2P
Weight: about 6.9-7g
Package included:
PNP version:
1x HB65S frame kit
1x 0603 20000KV motor
1x F3 OSD+5A 4in1 fytower
1x 25mW AIO camera VTX
1x 260mAh 30C HV battery
2x pairs 31mm 4-blade orange propeller
1x 1S HV charger
1x mini screwdriver
1x propeller puller
BNF version:
1x HB65S frame kit
1x 0603 20000KV motor
1x F3 OSD+5A 4in1 fytower
1x 25mW AIO camera VTX
1x 260mAh 30C HV battery
1x DSMX/ FrSky D8/ FS-RX2A/ SFHSS+D16 receiver(option)
2x pairs 31mm 4-blade orange propeller
1x 1S HV charger
1x mini screwdriver
1x propeller puller
Share
Preise für HB65S PNP in den Läden
Angebote gefunden: 3 (Banggood3)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| Banggood | Out of stock | $111 | + $2.17 | 1 | $113 | |
| Banggood | Out of stock | $119 | + $1.8 | 1 | $121 | |
| Banggood | Out of stock | $119 | + $1.8 | 1 | $121 |
