Flight controllers
Diatone Mamba F722S
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F7 FCs → Diatone Mamba F722S

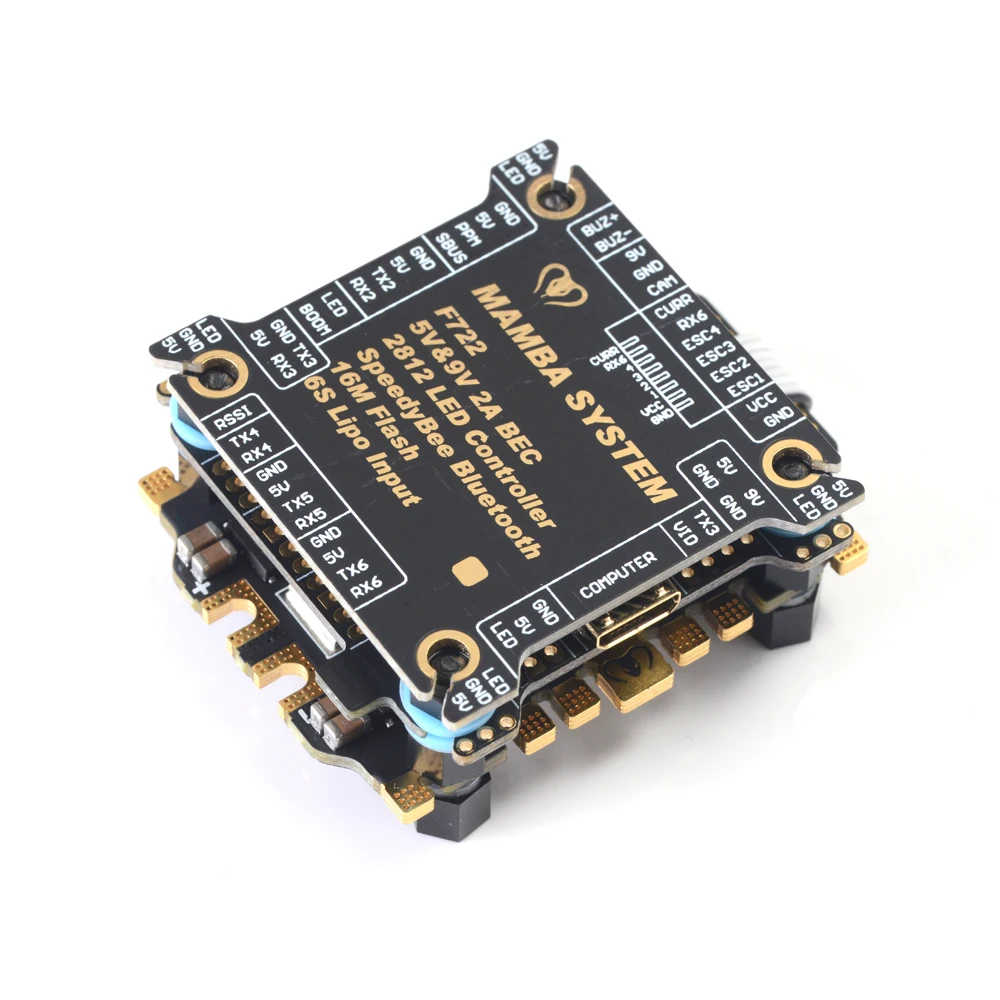

MAMBA F722S 3-6S 5V 2A & 9V 2A BEC OSD 2812 LED Flight Controller 30.5x30.5mm for RC Drone FPV Racing
Specification:
Item name: MAMBA F722S 3-6S Flight Controller
Package Included:
Specification:
Item name: MAMBA F722S 3-6S Flight Controller
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,,Green 9V,White 5V,Red 3.3V
Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 22g
WS2812 LED Control: 4 Set 2812 LED
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
PDB Specifications
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)
FC Firmware
BetaFlight
Target: MAMBA F722
Package Included:
1× FC MAMBA F722S
4× Silicon grommets M4.3 to M3
1× Panaso nic Low ESR 35V/470uF
1× AMASS XT60
2× Wire
20× Silica gel O ring
Share
Preise für Diatone Mamba F722S in den Läden
Angebote gefunden: 29 (AliExpress1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| AliExpress | Out of stock | $39 | 1 | $39 |
