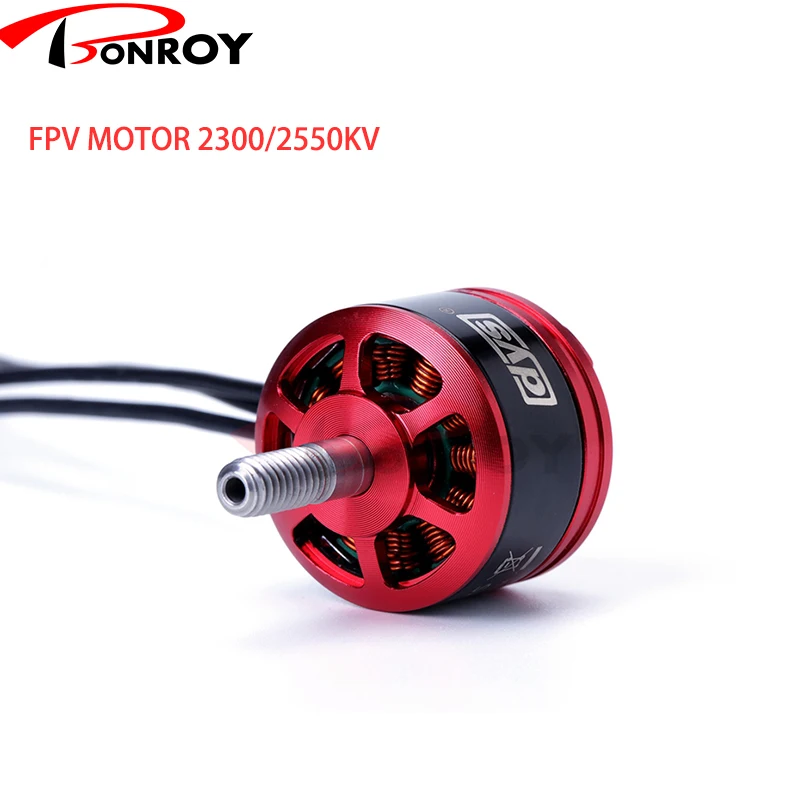

DYS SE2008 2300KV / 2550KV

DYS SE2008 2300kv/2550kv 3-5S FPV Racing Edition Brushless Motor

2300KV Motor:

KV..............................................................................................................2300
Configu ration....................................................................................NP
Stator Diameter....................................................................................20.0mm
Stator Length..........................................................................................8.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................Φ25.5×20.0mm
Weight (g)...................................................................................................33g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................20.5A
Max Continuous Power(W)...........................................................328W
Internal resistance..............................................................................0.06?

2550KV Motor:

KV..............................................................................................................2550

Configu ration....................................................................................NP
Stator Diameter....................................................................................22.0mm
Stator Length..........................................................................................5.0mm
Shaft Diameter.......................................................................................3.0mm
Motor Dimensions(Dia.*Len)...............................................Φ27.7×19.0mm
Weight (g)...................................................................................................30g
No.of Cells(Lipo).....................................................................................3-5S
Max Continuous current(A)............................................................27.2A
Max Continuous Power(W)...........................................................435.2W
Internal resistance..............................................................................0.04?
