SUNNYSKY X2216 III 880KV long shaft
Multirotors → Motoren und Zubehör → 22xx motors → SUNNYSKY X2216 III 880KV long shaftDescription:
Brand Name: SunnySky
Item Name: Brushless Motor
Series Name: X2216-III
Version: Long Shaft
KV: KV880,KV1100,KV1250,KV1400 (optional)
Color: Blue
Specifications:
KV | 880 | 1100 | 1250 | 1400 |
Stator Diameter | 22mm | |||
Stator Thickness | 16mm | |||
No. of Stator Arms | 12 | |||
No. of Rotor Poles | 14 | |||
No-Load Current (A/10V) | 0.5A | 0.8A | 1A | 1.2A |
Motor Resistance | 89mΩ | 54mΩ | 45mΩ | 32.2mΩ |
Max Continuous Current | 32A/30s | 34A/30s | 40A/30s | 50A/30s |
Max Continuous Power | 450W | 480W | 600W | 740W |
Weight | 67.5g | 69g | 69g | 71g |
Rotor Diameter | 27.7mm | |||
Body Length | 34mm | |||
Max Lipo Cell | 3-4S | |||
Recommended ESC | 50A | 30-40A | 40A | 40-50A |
Recommended Prop(inch) | APC9047, APC9045, APC11*4.7, APC1047 | APC9047, APC9045 APC8060, APC1047 | APC9047, APC9045 APC8060, APC1047 | APC9047, APC9045 APC8060 |
Applicable Aerobatic Airplane Weight | 850g (4S 906010471050) | 900g (3S 10471050) | 850g | 850g |
Applicable Multi-rotor single axis Weight | 500g (3S 10381047) 550g (4S 8038804380459047) | / | / | / |
Applicable 3D Airplane Weight | 800g (3S 1147) | 750g (3S 10471050) | 800g (3S 90471047) | 750g (3S 9047) |
Tech Specs:
KV880, Click Here
KV1100, Click Here
KV1250, Click Here
KV1400, Click Here
Package Included:

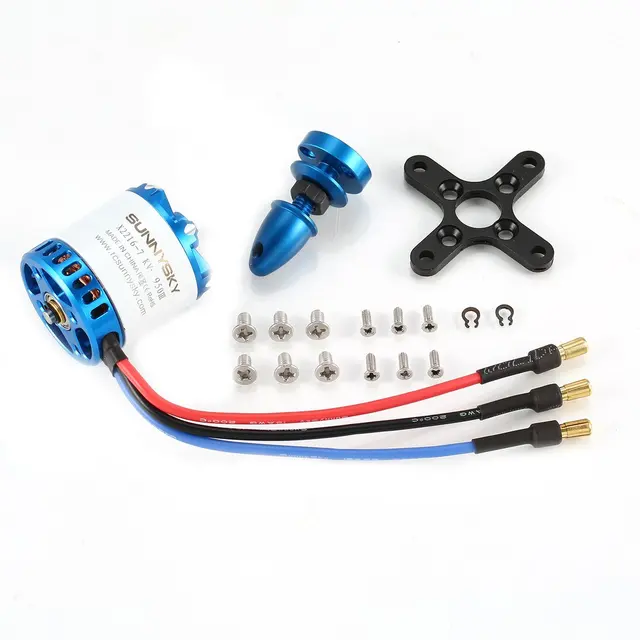

1x SunnySky X2216-III Brushless Motor
1x Accessories
KV880, Click Here
KV1100, Click Here
KV1250, Click Here
KV1400, Click Here
Package Included:
1x SunnySky X2216-III Brushless Motor
1x Accessories
