ZEEZ F7 3030 V3
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F7 FCs → ZEEZ F7 3030 V3
| MCU: | F722 |
| : | ICM42688P |
| : | BMP388 |
| OSD: | + |
| : | + |
| : | 3-6S |
| 3.3V BEC: | + |
| 5V BEC: | 3A |
| 9V/10V BEC: | 3A |
| Empfänger: | Spaces/Pads |
| VTX: | Spaces/Pads |
| : | 5 |
| : | 5 |
| : | + |
| : | + |
| CURR pad: | + |
| Blackbox: | Micro SD |
| : | Type-C |
| : | + |
| : | 30x30mm |

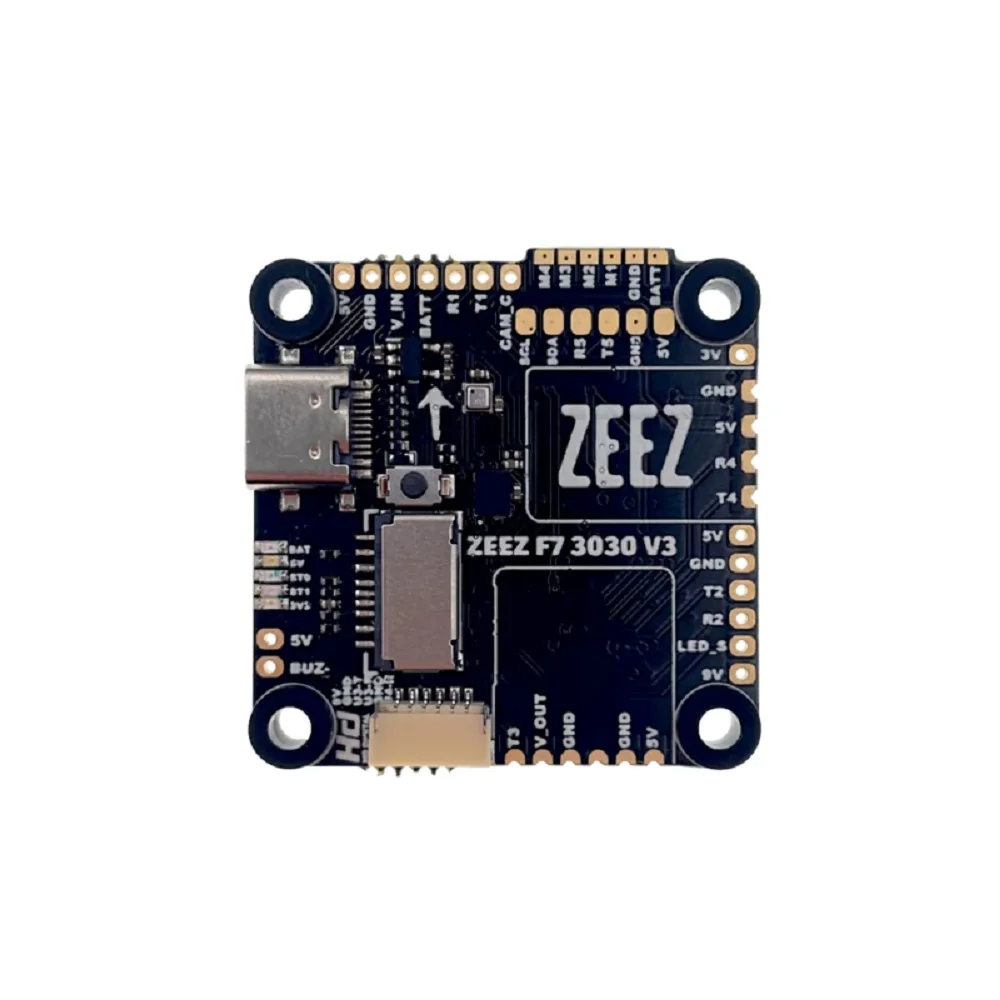

The ZEEZ F7 V3 3030 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug and play configuration and 5V@3A regulator to power all the peripheral.
It uses a powerful F7 processor along with top-of-the-line hardware:ICM42688P Gyro, BMP388 Barometer, with a separate power rail for cleanest data. The ZEEZ F7 V3 3030 comes in a standard 30×30 form factor. It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. We have added a connector for a 2nd ESC to make building X8’s as easy as possible. There are 5 UARTS available as well as, I2C port, SD CARD for Blackbox data record, an OSD chip for analog video.
