ExpressLRS ELRS 2.4Ghz
HiYounger Hangyuan Xinke TX2G4 ExpressLRS ELRS 500mW 2.4G TX Module
Transmitters → Long Range Systems LRS → ExpressLRS ELRS → ExpressLRS ELRS 2.4Ghz → ExpressLRS ELRS 2.4GHz TX modules → HiYounger Hangyuan Xinke TX2G4 ExpressLRS ELRS 500mW 2.4G TX Module
HiYOUNGER TX2G4 ExpressLRS ELRS 2.4GHz 500Hz High Refresh Low Latency Long Range Micro TX Module with 3 Pcs SP24S/EP24S/RX24T Mini RC Receiver for RC Drone
Specifications:
Brand Name: HiYOUNGER
Item Name: TX2G4 TX Module with RC Receiver (Optional)
Frequency Range: 2400 MHz
Receiving refresh rate: 25Hz/100Hz/500Hz
RF Output Power: 100Mw/250mW/500mW
Support voltage: 5-12V
Antenna gain: 2dBi
Size: 65x48x22mm
JR standard 5pin socket
Weight: 35g (without antenna)
Features:
- HiYOUNGER ExpressLRS TX2G4 TX module is currently the module with the lowest delay and the highest refresh rate on the market. It has an ultra-high refresh rate of 500Hz and is specially designed for FPV racing.
- ExpressLRS firmware is pre-installed. You will only need a remote controller that supports OpenTX, and use the LUA script and the Button to configure the parameters.
- To upgrade the module, you can connect it to Wifi, and then visit 10.0.0.1 through the browser to update the firmware.
- Comes with T antenna.
The RC receiver specifications:
SP24S RC Receiver: Click Here
EP24S RC Receiver: Click Here
RX24T RC Receiver: Click Here

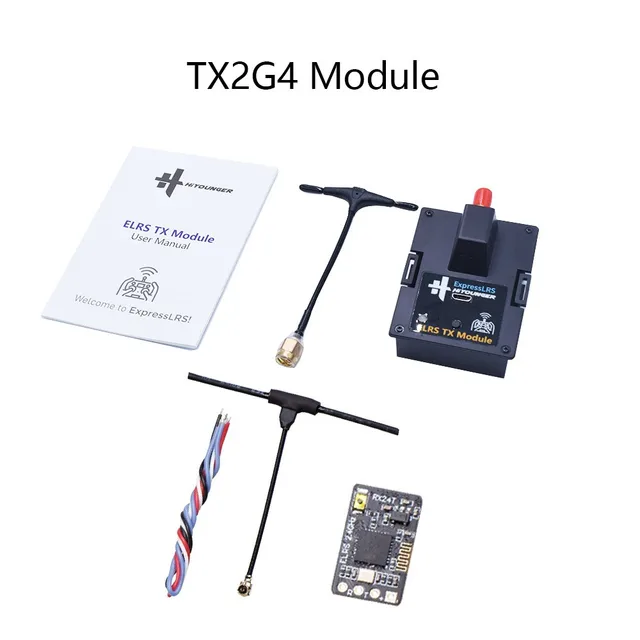

Package Include:
TX2G4 Option:
1 x TX2G4 TX Module
1 x TX Antanna
1 x User Manual
TX+3xSP24S Option:
1 x TX2G4 TX Module
1 x TX Antanna
1 x User Manual
3 x SP24S RC Receiver
TX+3xEP24S Option:
1 x TX2G4 TX Module
1 x TX Antanna
1 x User Manual
3 x EP24S RC Receiver
TX+3xRX24T Option:
1 x TX2G4 TX Module
1 x TX Antanna
1 x User Manual
3 x RX24T RC Receiver
Preise für HiYounger Hangyuan Xinke TX2G4 ExpressLRS ELRS 500mW 2.4G TX Module in den Läden
Angebote gefunden: 39 (AliExpress3, Banggood1)
Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
Banggood | Out of stock | $32 | 1 | $32 | ||
AliExpress | High stock level | $34 | + $2.25 | 1 | $37 | |
AliExpress | High stock level | $34 | + $2.25 | 1 | $37 | |
AliExpress | High stock level | $42 | 1 | $42 |
