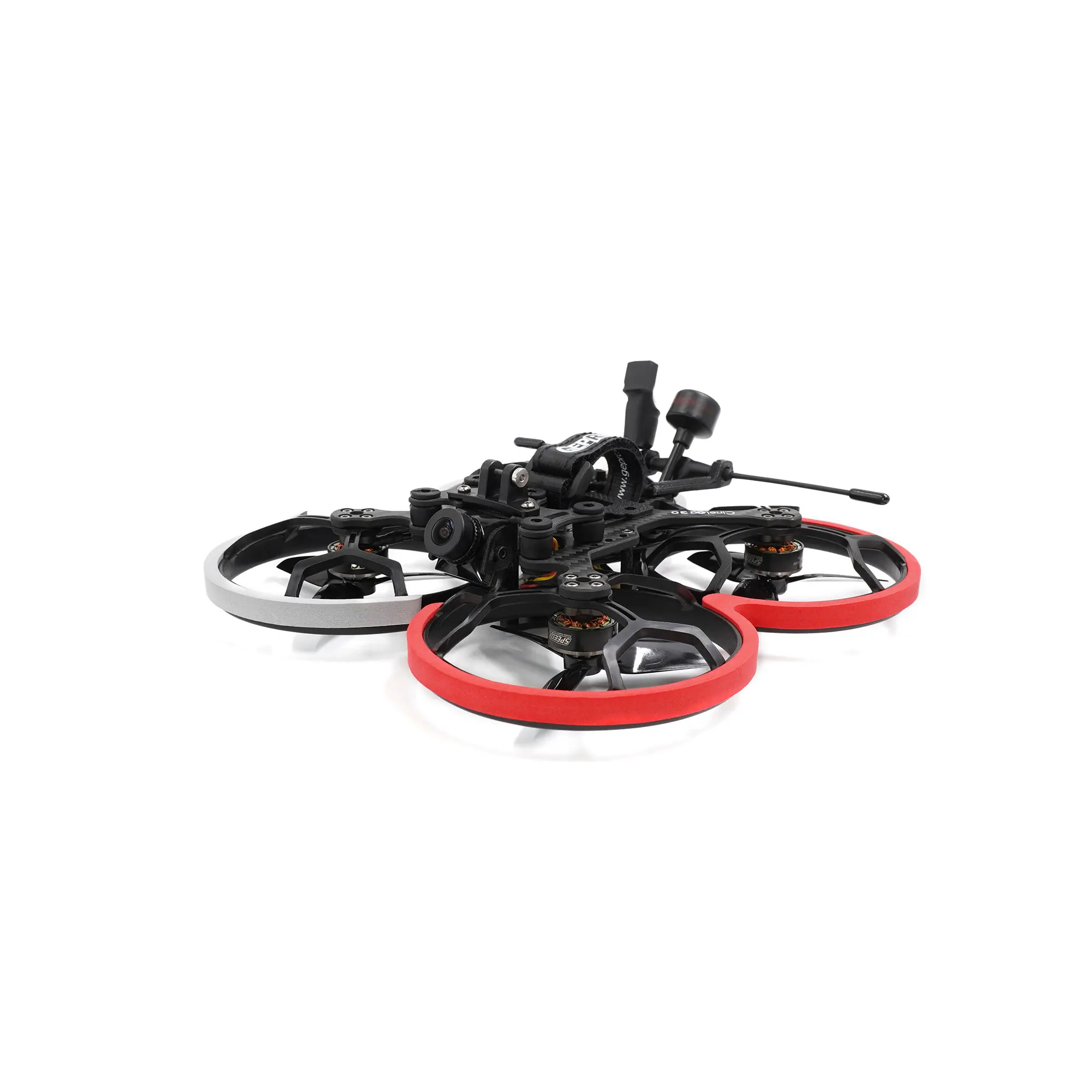

GEPRC CineLog30 126mm 3" 4S Caddx Ratel 2 PNP

Multirotors → Racing FPV-Hubschrauber → RTF/ARF/PNF → 3" Quads → GEPRC CineLog30 126mm 3" 4S Caddx Ratel 2 PNP
GEPRC CineLog30 126mm 3

Introduction:

CineLog30 is developed on the basis of cinglog25. It has a stronger power output with 1404-3850kv motor and T3 x 3 x 3 propellers.Ultra light fuselage weight, and CineLog30 Analog equipped with 4s660mah battery take-off weight is only 204g.The duration of the flight is 7.5 minutes.The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed,with the mounting base.

We pursue lighter weight, better flying feel and more extended functions of the Quadcopter.


Features:

Small size, light weight, with GEPRC 4S 660mAh battery, take-off weight is only 204g.

The GoPro Hero 8 naked camera and INSTA 360 GO2 camera can be installed, with the mounting base.

Continue the unique design damping pan tilt , and adjust the number of damping balls according to the scene.

1404-3850KV motor with T3x3x3 propellers, strong power output.The duration of the flight is 7.5 minutes by 4S660mAh LIPO Battery.


Description:

Brand: GEPRC

Model: CineLog30 Analog

Item Name: 126mm F4 3 Inch FPV Racing Drone

Receiver: PNP(Without Receiver)/Frsky RXSR /TBS Nano RX (Optional)

Antenna: GEPRC Momoda 5.8g MMCX RHCP 100mm

CineLog30 Analog weight: 140g


126mm Frame Kit

Frame: GEP-CL30

Motor to Motor: 126mm

Top plate: 2.0mm

Bottom plate: 2.0mm

Arm plate:3.0mm

F4 Flight Controller AIO 35A ESC

Model: GEP-F411-35A AIO FC

MCU: STM32F411
IMU: MPU6000 gyro/accelerometer(SPI)
Target: GEPRC_F411_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: T1 R1 / T2 R2
Beep: YES
LED: YES
USB Connector: micro USB

Onboard 35A BL_S 4in1 ESCESC MCU: 8BB21F16G
Intergrated LC Filter
Continue Current: 35A
Burst Current: 40A(10s)
Input Voltage: 2~6S (LIPO Battery)
ESC Protocol: Dshot300/600,Oneshot42/125,Multishot
Current meter: 210
Blackbox:16Mb
ESC Target: G_H_30 BLS
Size: 32x32mm Board
Mount Holes: 26.5×26.5mm,M2
Weight: 8.3g
GR1404 3850KV Brushless Motor
Configuration: 9N12P
Stator Diamter: 14mm
Stator Length: 4mm
Shaft Diameter: 1.5mm
Motor Dimensions: Φ18.3 * 14.5mm
The hole position of motor: 9mm
T3X3X3 3030 3 Inch 3-Blade Propeller

Quantity: 2 CW & 2 CCW

GEP-600mW-VTX
GEP-600mW-VTX
Caddx Ratel 2 1200TVL FPV Camera
Input Power:DC 5-40V
Dimensions:19mm*19mm*20mm


Remmended Lipo Battery: ( NOT Included)

Battery: GEPRC 4S 660mAh

Flight Time: With naked GoPro8(sub250g): 4S 660mAh 7-8min


Package Included:

1 x CineLog30 Analog Quadcopter

1 x Battery straps 20x200mm

2 x T3x3x3 propellers (pair)

2 x Propeller guards

2 x EVA damping rings of guard

2 x EVA landing pads

2 x Battery Silicone Pads

1 x OSD parameter adjusting board

1 x Antenna fixed tube

1 x Screw package

1 x TBS receiver mount(PNP)

1 x TBS receiver antenna mount (PNP)
