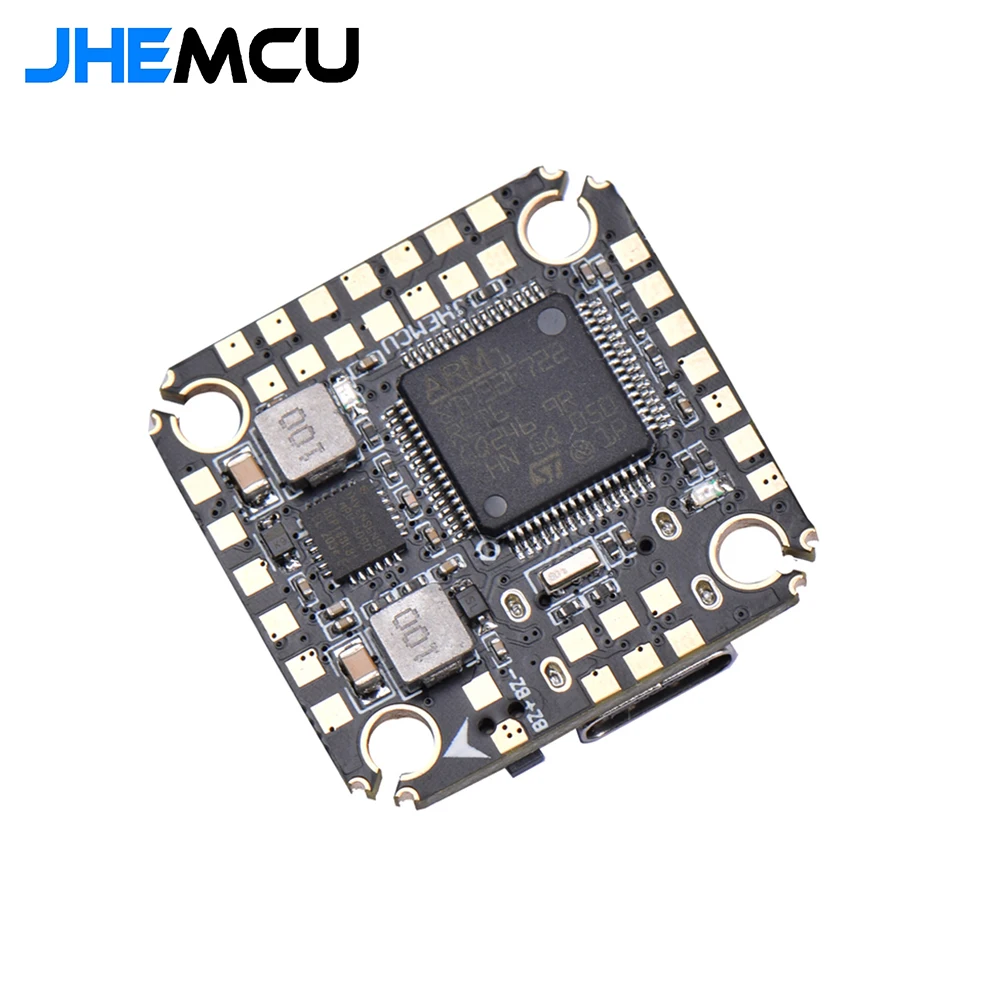

JHEMCU F7 XSD Pro Full Deluxe
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F7 FCs → JHEMCU F7 XSD Pro Full Deluxe
| MCU: | F722 |
| : | MPU6000 |
| : | BMP280 |
| OSD: | + |
| : | 2-6S |
| 3.3V BEC: | + |
| 5V BEC: | 3A |
| 9V/10V BEC: | 2A |
| : | - |
| ESC: | - |
| : | 6 |
| : | 6 |
| : | + |
| : | + |
| CURR pad: | + |
| Blackbox: | 16Mb |
| : | Type C |
| : | + |
| : | 27x27mm |
| : | 20x20mm |
| Gewicht: | 4.7g |
CPU: STM32F722
Power supply: 2-6S (2S power supply cannot output 10V, 5V can)
Signal protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.
Sensor: MPU6000
Size: 27*27mm (20mm mounting hole, diameter 3MM)
Firmware version: Betaflight JHEF7DUAL
Black box: 16MB for the full version, not for the lite version
Barometer: the full version supports BMP280, the simplified version does not
OSD: Support
DJI VTX: There are reserved interfaces and wiring, support
USB: TYPE-C interface
IIC: Support
UART: 6 channels, UART2: receiver, UART1, 2, 3, 4, 5, 6,
BEC: BEC 5V/3A and 10V/2A
DJIVTX: Support, reserved special socket, equipped with plug wire.
Receiver: SBUS, IBUS, DSM2/X, TBS, etc.
Support WS2812 programmable LED
Support buzzer
Built-in voltage sensor, socket reserved for current meter interface
Weight: 4.7 grams
