Corona DS843MG DS-843MG Digital High Torque Micro Servo 4.8kg / 0.10sec / 11.5g
Electronics → Servos → Corona DS843MG DS-843MG Digital High Torque Micro Servo 4.8kg / 0.10sec / 11.5g
Description:
Corona digital servos are a must for the discerning pilot. They have higher resolution, accurate positioning, faster control response, constant torque throughout the servos travel, increased holding power and a really tight deadband. The Corona DS-843MG metal geared servo is not only fast (0.10sec/60°) but it has an incredible amount of torque (4.8kg) which for a servo weighing only 8.5g is quite something.
Features:
• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout servo travel
• Excellent holding power
• Tight deadband
• Quick acceleration
• High torque
Specifications:
Model: DS-843MG
Operating Voltage: 4.8~6V
Speed: 0.12- 0.10sec/60°@6v
Torque: 4.0-4.8kg@6V
Gears: Metal
Motor: Coreless
Bearing: Ball bearing
Amplifier: Digital with Mosfet drive
Weight: 8.5g(with cale 11.5g)

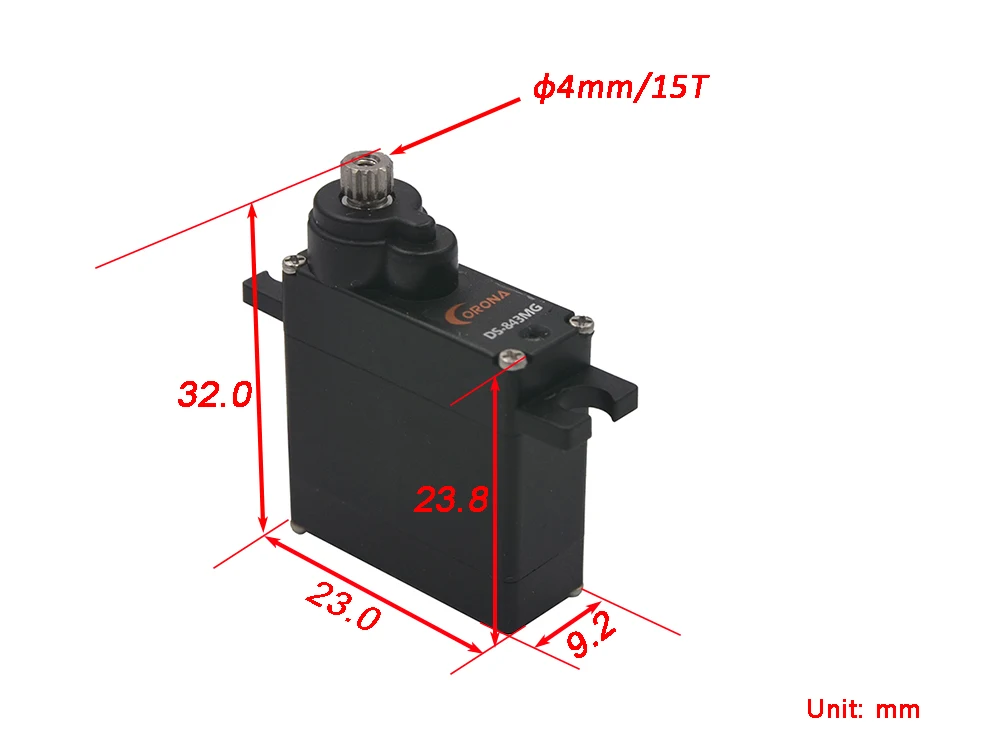

Dimensions: as below picture
Servo Plug: JR type
Servo Lead Length: 190mm
Spline count: 15
Pictures:
Share
Preise für Corona DS843MG DS-843MG Digital High Torque Micro Servo 4.8kg / 0.10sec / 11.5g in den Läden
Angebote gefunden: 15 (HiModel1, AliExpress1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| AliExpress | High stock level | $19 | 2 | $9.66 | ||
| HiModel | Out of stock | $6.83 | + $5.19 | 1 | $12 |
