Flywoo Goku HEX F745 + 13A ESC + 450mW VTX 16x16 stack
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F7 FCs → FC F7 + ESC 4in1 + VTX Stacks → Flywoo Goku HEX F745 + 13A ESC + 450mW VTX 16x16 stack
Pls note that Hex FC cannot be used with Quad ESC !
GOKU HEX F745 16X16 STACK Use powerful F745 BGA chip，barometer, black box, WS2812LED，support 7 complete hardware serial ports, I2C and other functions are all open ! Enough to meet all FPV needs.
Recommended specifications ：
HEXplorer LR 4‘’ 4S Hexa-copter BNF with Caddx Vista / Nebula Pro
GOKU HEX F745 16X16 STACK Use powerful F745 BGA chip，barometer, black box, WS2812LED，support 7 complete hardware serial ports, I2C and other functions are all open ! Enough to meet all FPV needs.
Recommended specifications ：
HEXplorer LR 4‘’ 4S Hexa-copter BNF with Caddx Vista / Nebula Pro

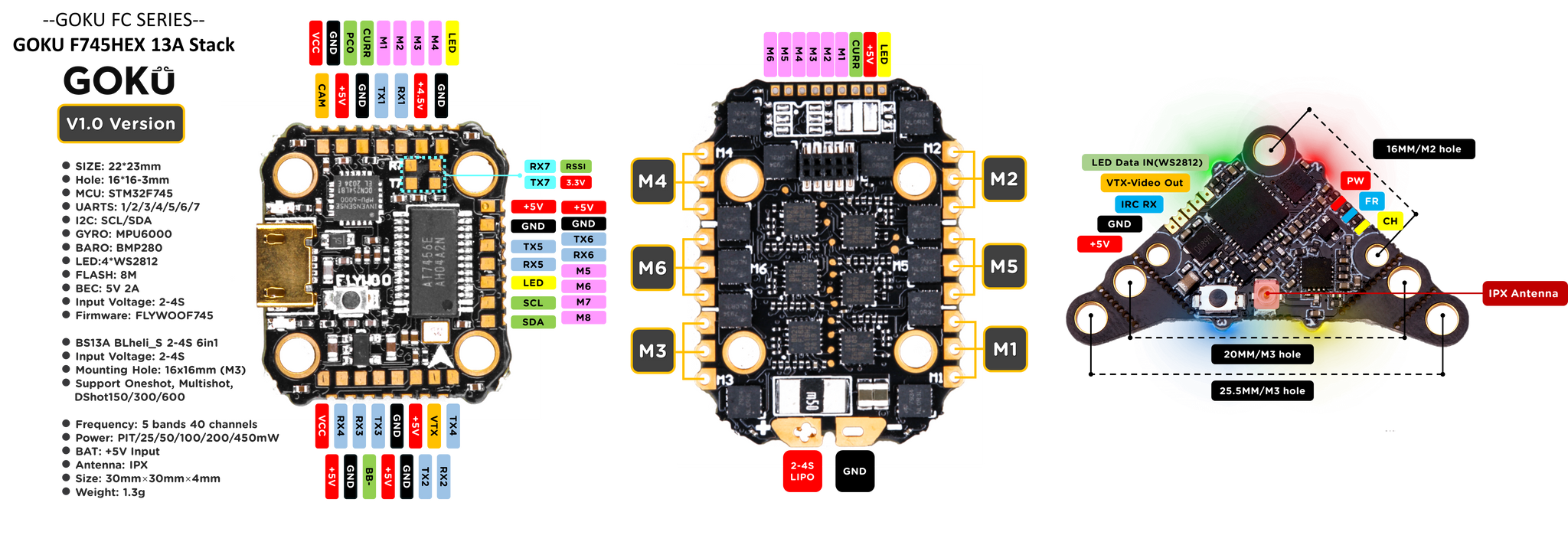

GOKU HEX F745 BGA Flight Controller
l SIZE: 22*23mm Weight: 2.3g
l Hole: 16*16-3mm
l MCU: STM32F745
l UARTS: 1/2/3/4/5/6/7
l I2C: SCL/SDA
l GYRO: MPU6000
l BARO: BMP280 BEC: 5V 2A
l LED:4*WS2812 FLASH: 8M
l Input Voltage: 2-4S
l Firmware: FLYWOOF745NANO
GOKU HEX 6IN1 BS 13A ESC
l BS20/35A BLheli_S 2-6S 4in1
l Weight: 2.5g
l Mounting Hole: 16x16mm (M3)
l - Support Oneshot, Multishot,
DShot150/300/600
GOKU VTX625 450mw VTX
Raceband: 5362-5945 MHZ
Power: PIT/25/50/100/200/450mW switchable
Control Mode:IRC(RX)/Button
BAT: +5V Input
Video System: NTSC/PAL
Antenna: IPX
Size: 30mm×30mm×4mm
Weight: 1.3g
