Racing Frames

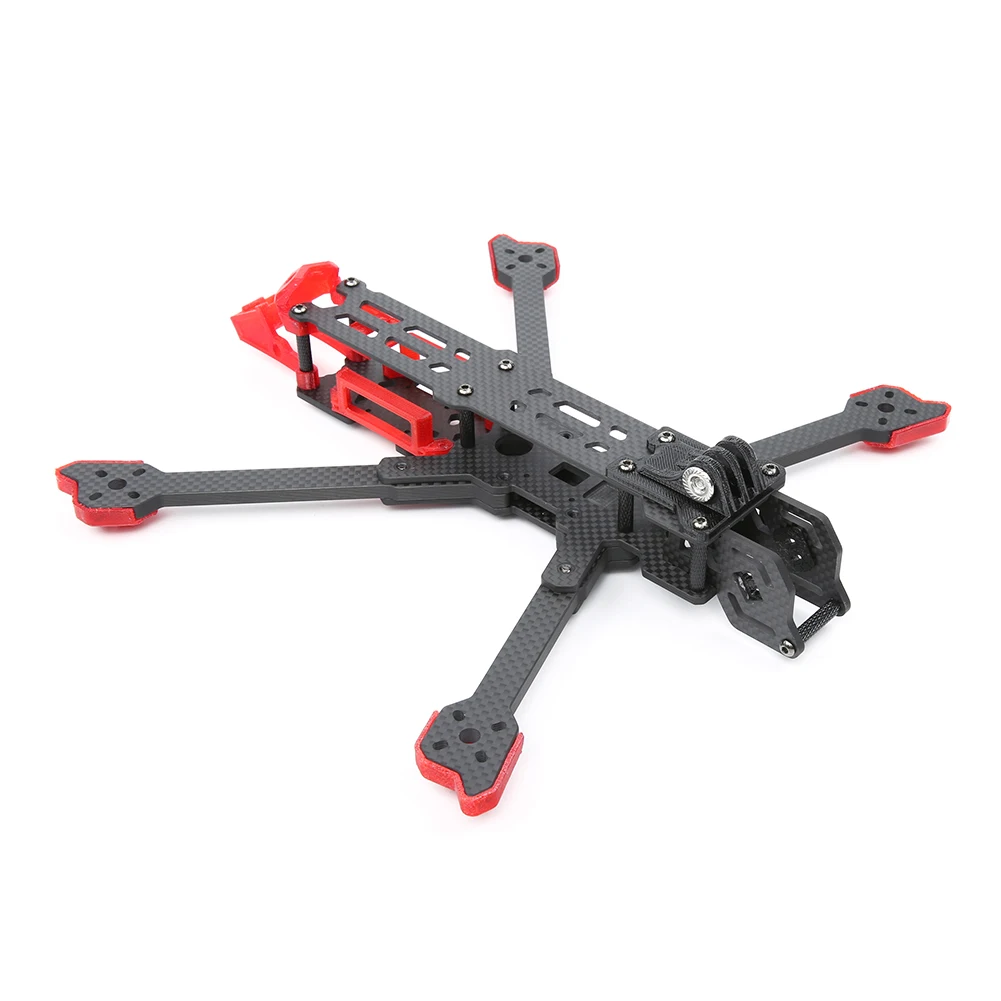

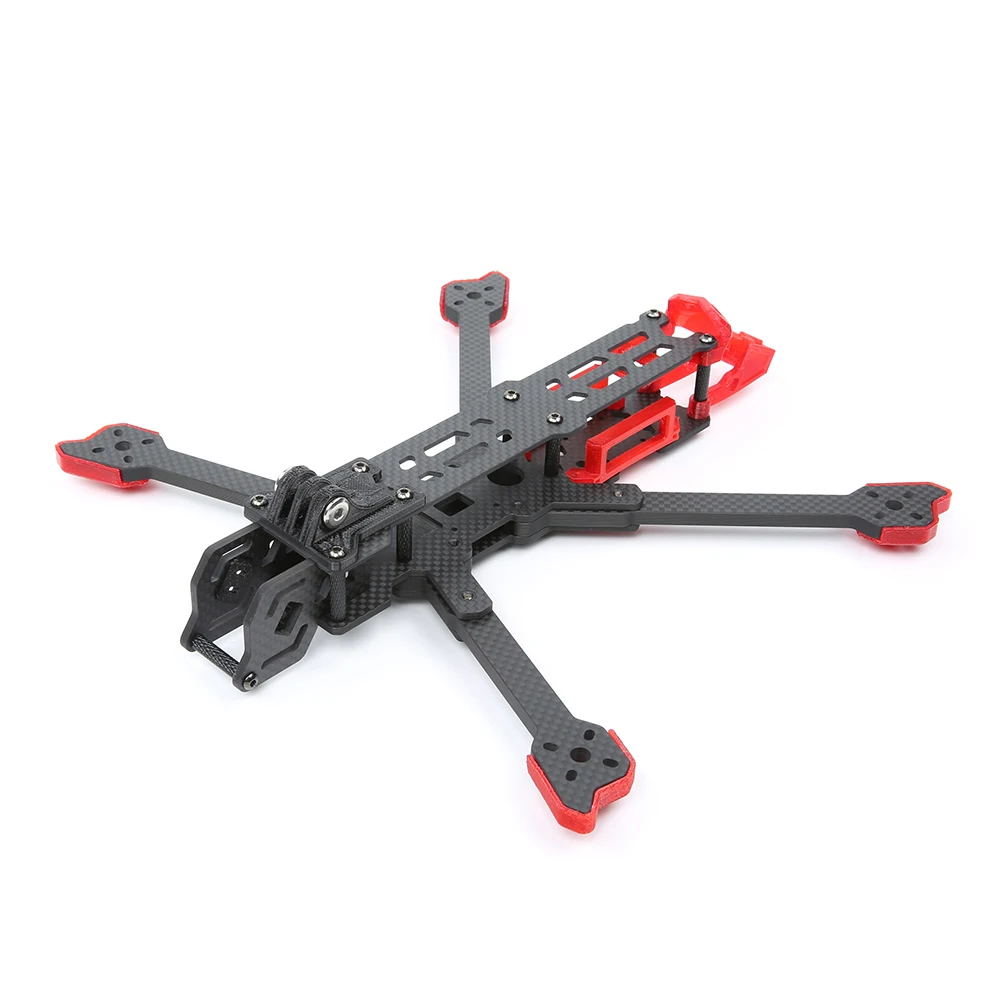

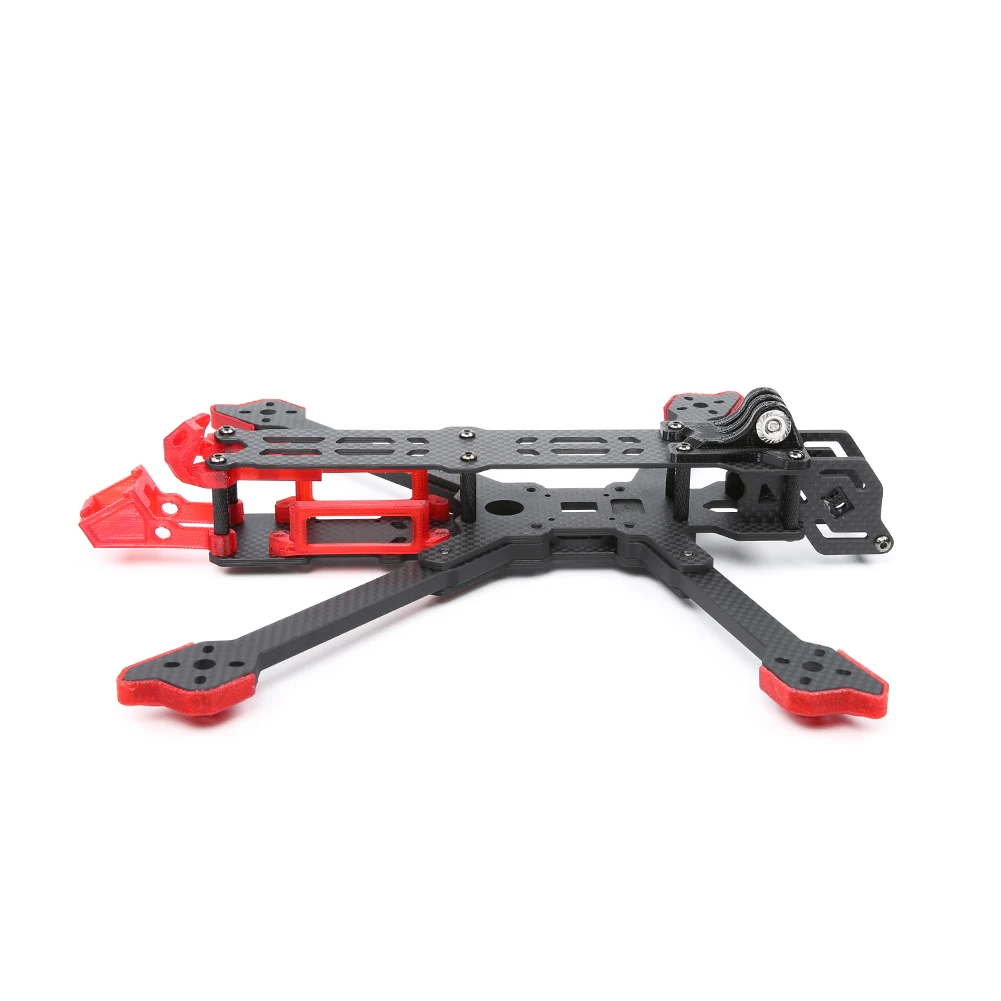

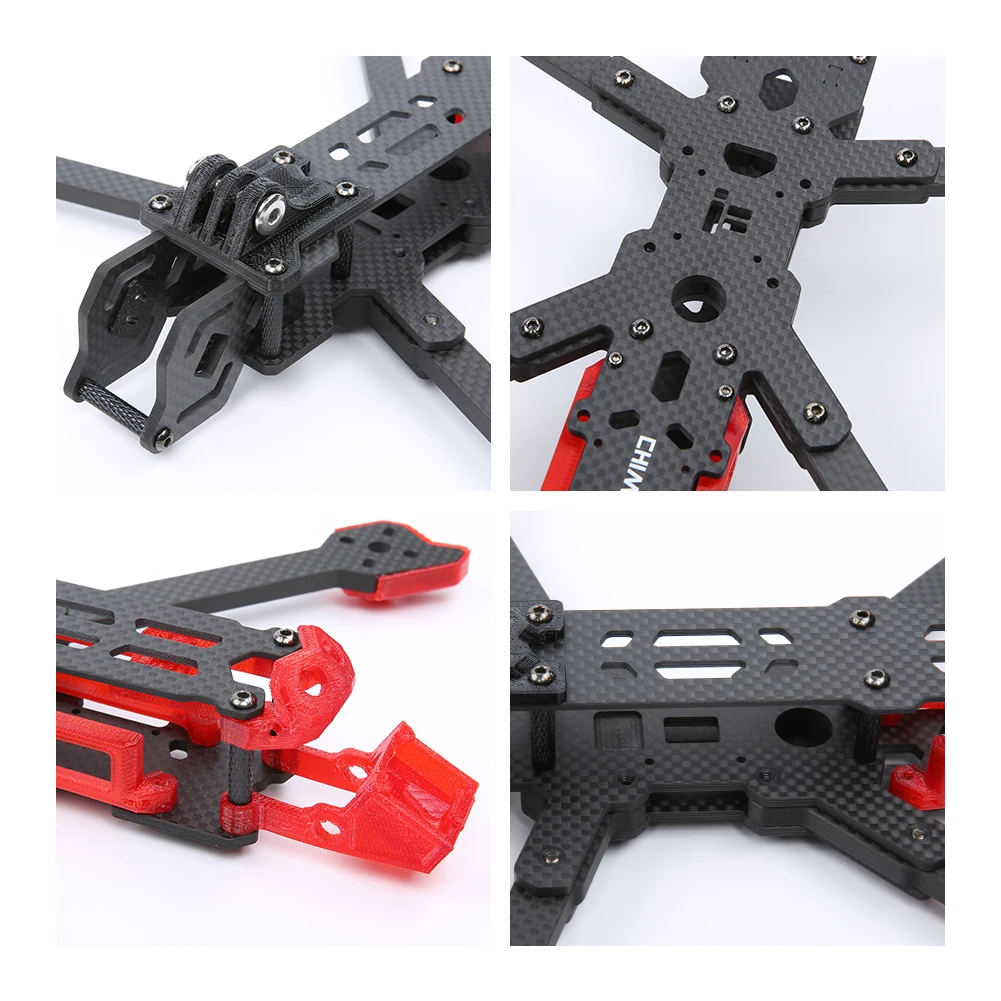

iFlight Chimera6 DC 267mm 6" Frame Kit
Multirotors → Racing FPV-Hubschrauber → Racing Frames → 6" frames → iFlight Chimera6 DC 267mm 6" Frame KitEmpfohlene Geschäfte↓ Ein anderes Geschäft
Model: Chimera 6
Structure: DC/split arm
Frame wheelbase: 266.7mm
Overall frame size: 200.1*168.3mm

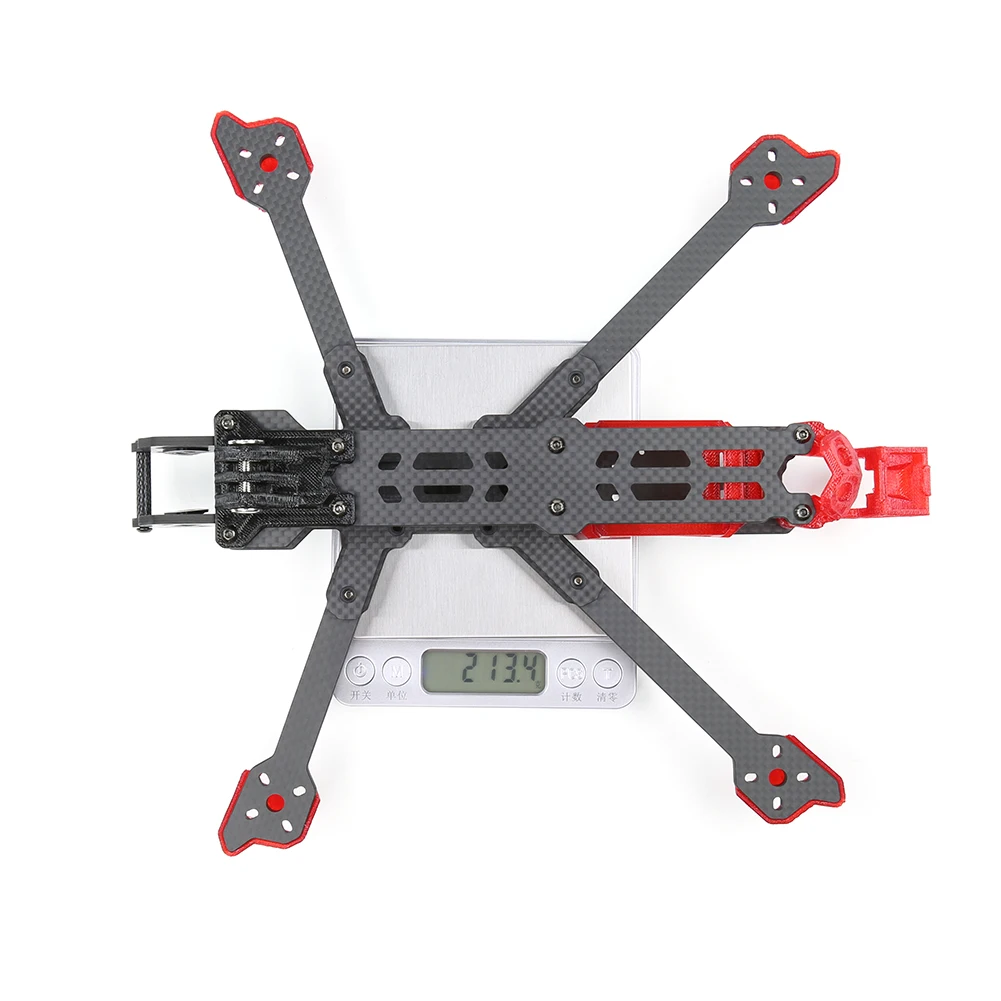

Empty weight + full set of prints: 213.4 g
Motor circlip hole: 6mm
Internal space height: 20-28mm
Arm thickness: 5mm
Side plate thickness: 3mm
Middle plate thickness: 3mm
Floor thickness: 2mm
Top plate thickness: 2mm
Motor hole installation distance: 16*16mm
Support flight control: 30.5 * 30.5/20*20 hole position flight control
Support camera: 19-20mm wide camera
Recommended motors: 22 and 23 series
Features introduction:
1. The 6-inch version of CHIMERA 7, which is more lightweight
2. A full set of prints comes standard
3. Compatible with DJI Air
Structure: DC/split arm
Frame wheelbase: 266.7mm
Overall frame size: 200.1*168.3mm
Empty weight + full set of prints: 213.4 g
Motor circlip hole: 6mm
Internal space height: 20-28mm
Arm thickness: 5mm
Side plate thickness: 3mm
Middle plate thickness: 3mm
Floor thickness: 2mm
Top plate thickness: 2mm
Motor hole installation distance: 16*16mm
Support flight control: 30.5 * 30.5/20*20 hole position flight control
Support camera: 19-20mm wide camera
Recommended motors: 22 and 23 series
Features introduction:
1. The 6-inch version of CHIMERA 7, which is more lightweight
2. A full set of prints comes standard
3. Compatible with DJI Air
Share
Preise für iFlight Chimera6 DC 267mm 6" Frame Kit in den Läden
Angebote gefunden: 24 (Banggood1, AliExpress1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| AliExpress | High stock level | $76 | Rabatt in der Kasse | 1 | $76 | |
| Banggood | Out of stock | $92 | 1 | $92 |
