Holybro Kopis 2.5" CineWhoop 4S Power unit PNF without FPV

Multirotors → Racing FPV-Hubschrauber → RTF/ARF/PNF → 2.5" Quads → Holybro Kopis 2.5" CineWhoop 4S Power unit PNF without FPV

$194

Im Laden

AliExpress

High stock level

Empfohlene Geschäfte

Banggood FREE SHIPPING Out of stock	$173

↓ Ein anderes Geschäft

Specification: ( Manual)

Brand Name: Holybro

Model: Kopis Cinewhoop 2.5

Item Name: 105.5mm Wheelbase F4 4S 2.5 Inch CineWhoop FPV Racing Drone

Version: PNF ( Without Caddx Nebula Pro Vista Kit HD Digital System Version)

Drone Wheelbase: 105.5mm

Frame Material: 3mm 3K Carbon Fiber

Weight:157g (Without Battery)
Take-off Weight: 248g (take example as 4s 850mah Lipo)

Kakute F4 V2 Mini Flight Controller	MCU: STM32F405RGT6 32-bit processor IMU: MPU6000 (SPI) Barometer: BMP280 USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 5 hardware UARTS (UART1,3,4, 5, 6) 128 Mbit Dataflash chip for Blackbox logging Dimensions: 32x29x6mm (includes USB in height) Mounting Holes: Standard 20mm square to center of holes Weight: 4.4g -Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
Tekko32 F3 4in1 35A mini ESC 4In1	F3 MCU, double the speed of F051, the MCU works at 108Mhz 32bit ESC with BLHELI32 firmware Supports 3-6S lipo input Default PWM output 96K Amperage meter scale ratio has been adjusted to 185. PWM input, TLM supported Voltage output (VBAT) NO output BEC Supports Multishot / Dshot PWM Supports damped light Ext. cap needed for 6s (1000uf 35v for 6s usage.) Mounting holes: 20x20mm(M3) Size:32 x 38 mm Weight: 8g
T-Motor F1404 3800KV Brushless Motor	Item Name: 1404 3800KV 3-4S Brushless Motor Configuration: 9N12P Shaft Dimeter: 1.5mm Dimension: 17.9x16.6mm ( 9x9mm, M2 mounting hole) Weight: 9.34g
Gemfan D63-5B Propeller	Model: D63 Item Name: 2.5 Inch 5-Blade Propeller Quantity: 4 CW & 4 CCW Pitch: 1.65in Props Dia: 63.5mm/2.5'' Center Thickness: 5mm Center Hole Dia: 1.5mm 3holes

Additional Parts Also need ( NOT Included, you also need buy together)

4S 550-850mAh Lipo Battery XT30 Plug ( Link)

Caddx Vista Nebula Pro HD Digital System ( Link)

DJI Remote Controller ( Link)

Click Here to buy WITH Caddx VISTA Nebula Pro Version.

Pacakge Included:

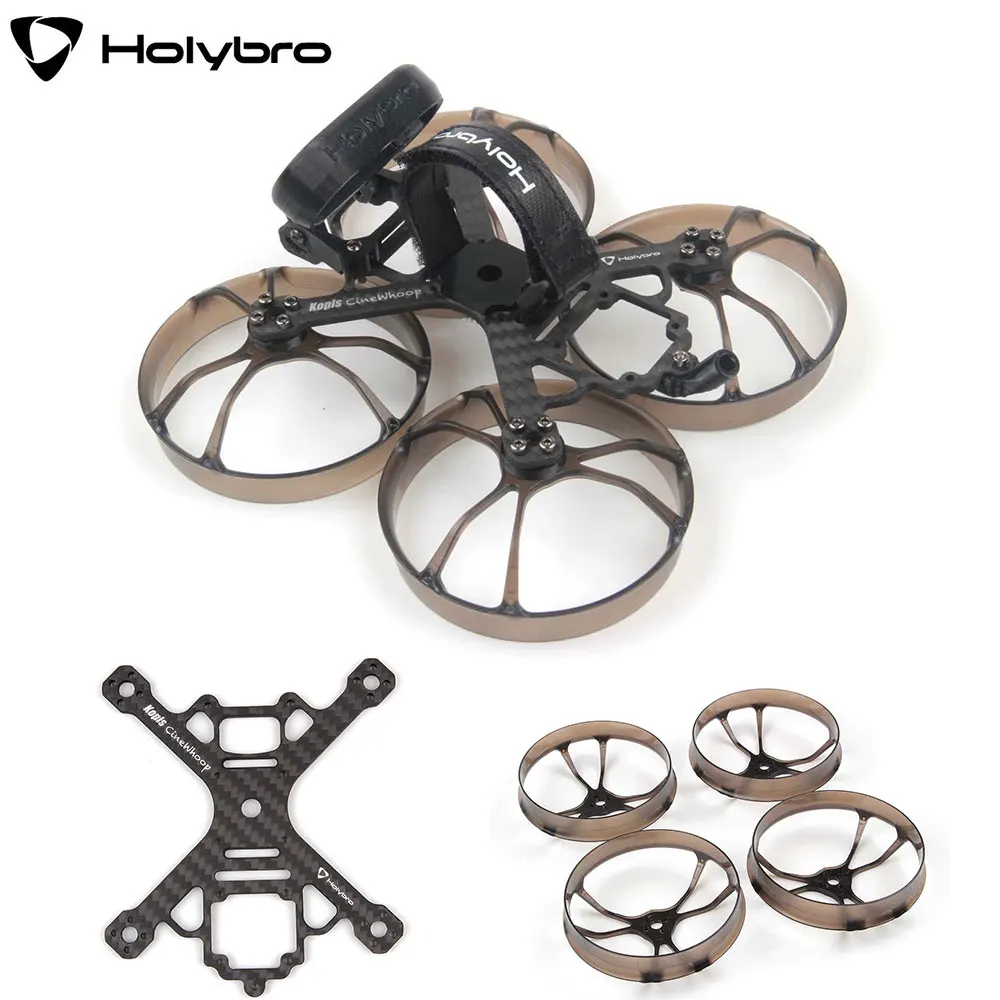

1x Holybro Kopis CineWhoop 2.5 Inch Frame

1x Kakute F4 V2 Mini Flight Controller

1x Tekko32 F3 4in1 35A mini ESC 4In1

4x T-Motor F1404 3800KV Brushless Motor

4x Gemfan D63-5B Propeller CW

4x Gemfan D63-5B Propeller CCW

2x Propeller Guard

1x Camera Mount for Naked Gopro

1x Carrying Case

( Package doesn’t include Insta360 GO Camera Mount, on the pictures for reference only.)

Holybro Kopis CineWhoop 2.5 Inch 4S Kakute F4 V2 Mini Flight Controller 35A ESC Whoop FPV Racing Drone PNF without Caddx Nebula Pro Vista Kit HD Digital System Version
