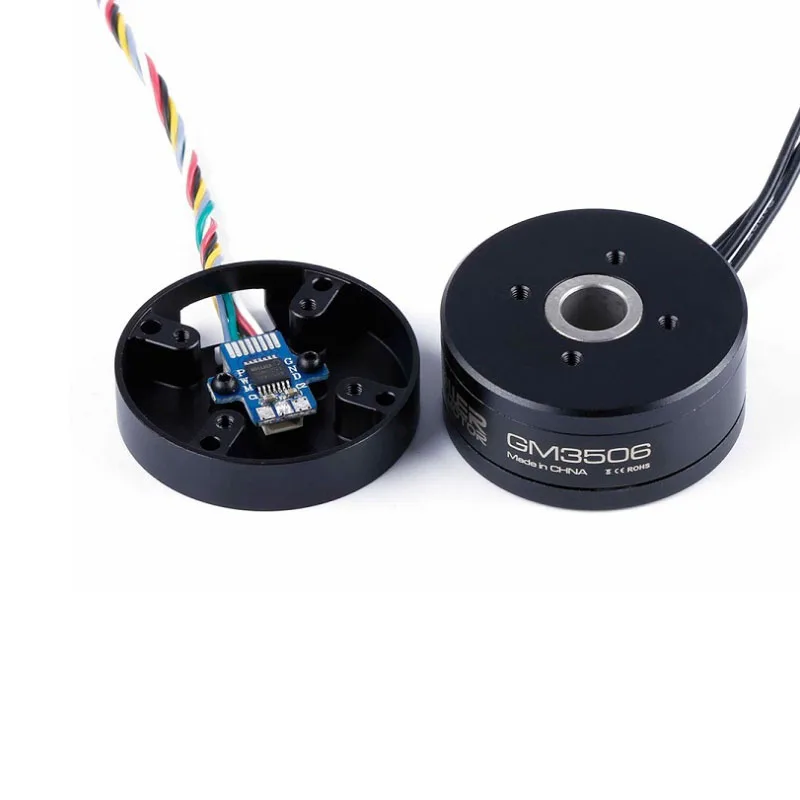

iFlight iPower GM3506 130T Brushless Gimbal Motor

The GM35 series motor by iPower Motors is the ultimate brushless gimbal motor for SLR and similar weight Cameras. This motor is designed for large-scale multi-rotor platforms looking to lift SLR sized gear – 1.5KG/cm Torque. The principle of the camera stabilization using brushless direct drive motors, In fact, gimbal based on BLDC motors is very similar to regular gimbal based on hobby servo.

Specs:

*Model NO.: GM3506

*Weight: 72g

*Motor Dimensions: 40*17.8mm

*Stator Dimensions: 35x6mm

*Copper wire(OD): 0.21mm

*Configuration: 24N22P

*Resistance: 5.57Ω±5%mΩ

*Pre-wounded: with 130 turns,3.17mm shaft

*Camera range: 200-500g grams

*Non-load Voltage: 16V

*Current: 0.17±0.1 A

*Rotational Speed: 2149~2375 RPM

*Torque: 600-1000 G.Cm
