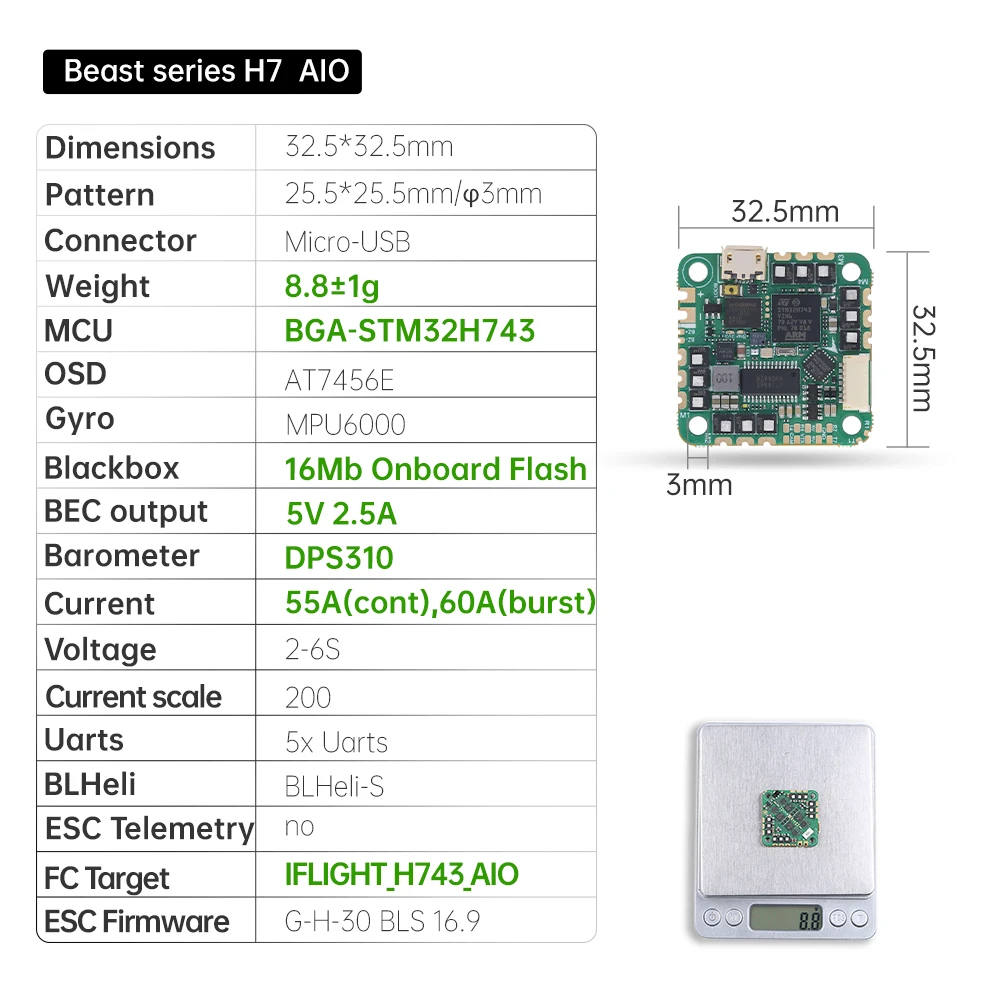

iFlight Beast H7 55A AIO

What if you could get the combined MCU speed and ESC power of a big stack, but carefully arranged on a 25x25 whoop size board? That would be crazy right? Well, we just did it...

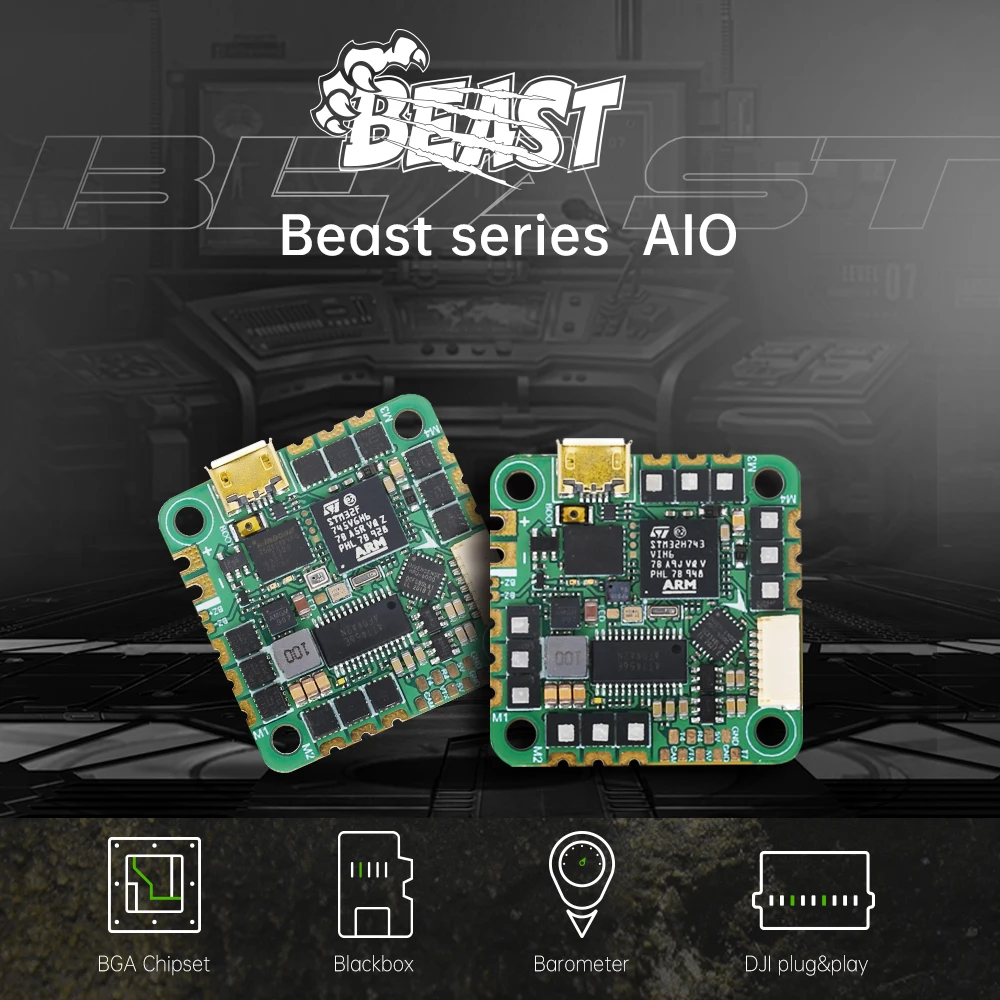

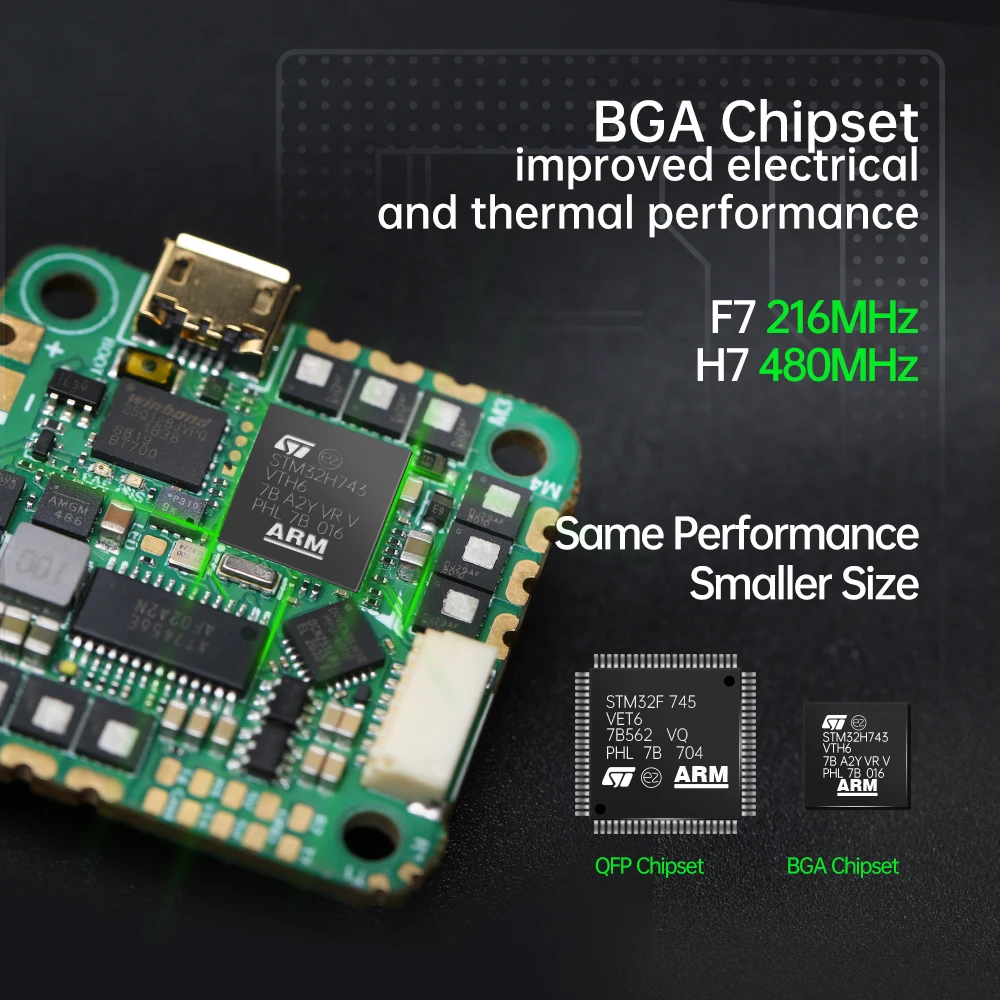

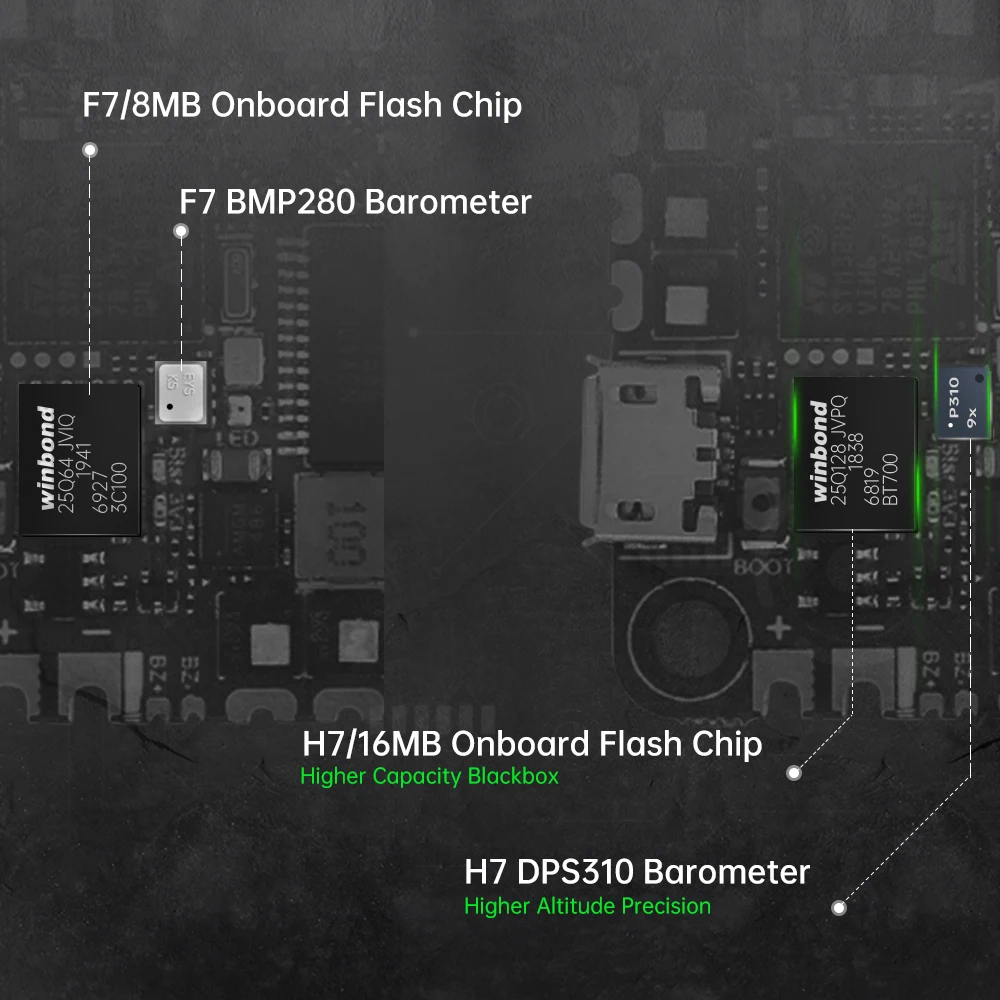

This is our new iFlight BEAST series AIO FCs for your ultimate build. Lightweight, minimum size, minimum work.This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and let's go! digital system Plug&Play plug and so many UARTs most people wouldn't even use em' all. Compatible to digital and analog FPV, onboard Barometer for possible long range flights and much more. Unleash the beast!

Safety reminder:

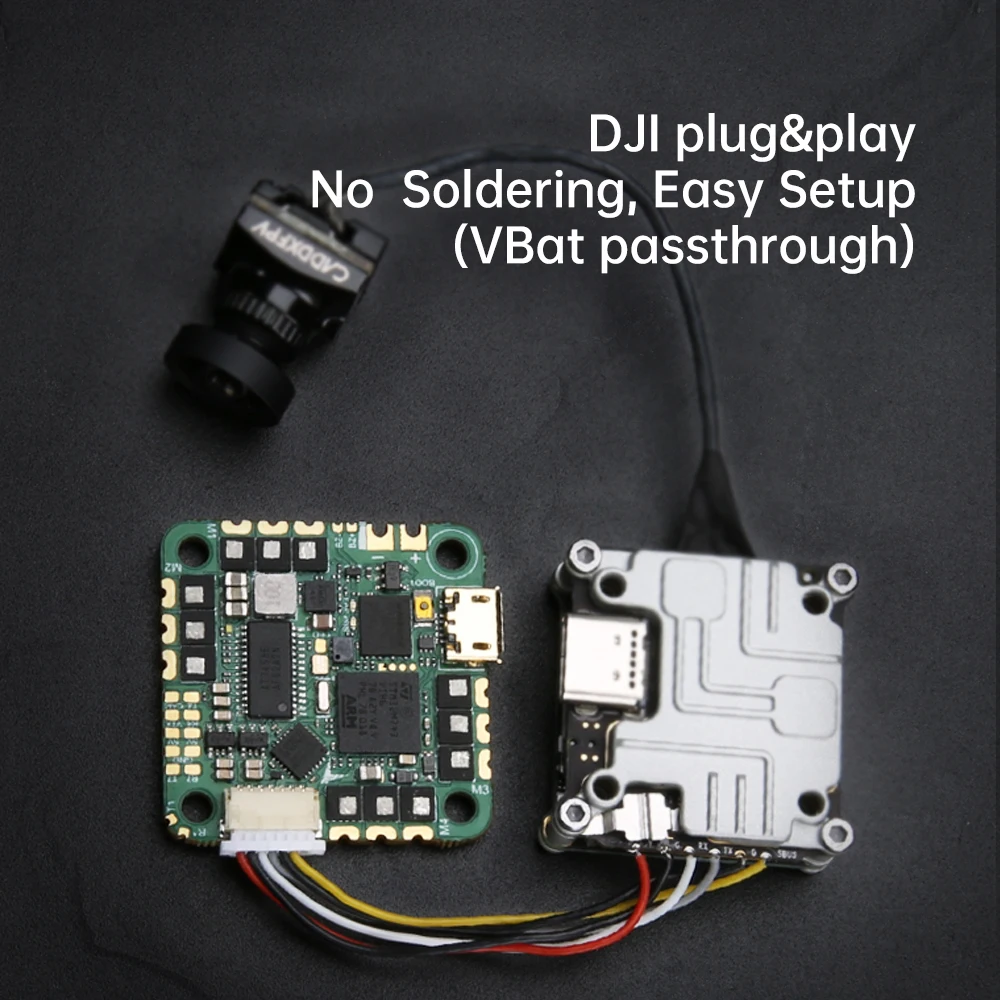

The digital system plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista goes up to 26.4V (6S), the digital system Air Unit goes up to 17.6V (4S). Make sure not to plug-in your digital system Air Unit directly when you're flying 6S, because this would fry it! BEC to add for your 6S build can be found here: https://www.aliexpress.com/item/1005001665809051.html?spm

Small motor 4S builds should usually need an additional capacitor of at least 16V/220uF, for 6S go up to 35V or even 50V. Bigger motors have a bigger current draw, higher voltage spikes and more serious back EMF (motor braking, works like a generator). Make sure to add big enough or even bigger low ESR capacitors on the AIO battery pad or on your battery lead the more aggressive motors you fly. There's a choice of capacitors in the package, but it's never a bad idea to make sure to protect your board. Smaller boards have less capacitance which has to be covered with external capacitors, there's no way around.
