Eachine Stack-X F4 Flytower F4 Flight Controller Built-in VTX OSD 1080P DVR 4 In 1 35A Dshot600 ESC for RC Racer Multirotor DIY
Multirotors → Racing FPV-Hubschrauber → Flight controllers → F4 FCs → FC F4 + ESC 4in1 + VTX Stacks → Eachine Stack-X F4 Flytower F4 Flight Controller Built-in VTX OSD 1080P DVR 4 In 1 35A Dshot600 ESC for RC Racer Multirotor DIY
Our Stack-X 1080P DVR real-time recording VS goggles recording:
Package included:

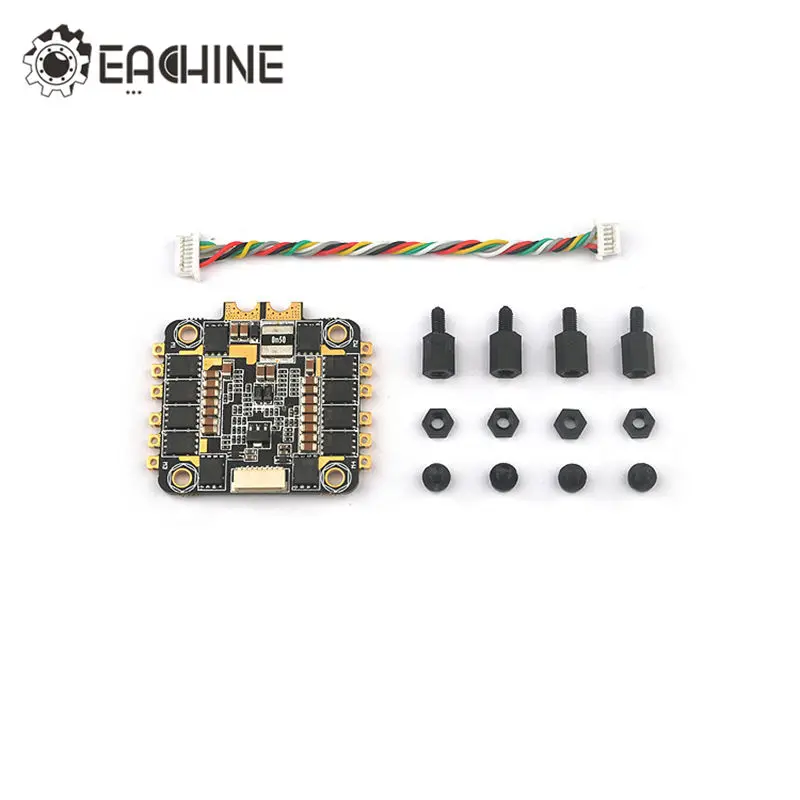

1 x Stack-X 2-6S ESC BLHeli_S
1 x Stack-X F4 flight controller built-in OSD VTX
1 x Stack-X 1080P DVR with camera




Eachine Stack-X F4 Flytower F4 Flight Controller Built-in VTX OSD w/ 1080P DVR 4 In 1 35A Dshot600 ESC 2-6S
Description:
Brand name: Eachine
Item name: Stack-X F4 flytower
Stack-X ESC | Operating voltage | 2-6S Lipo |
FC power | Integrated | |
Maximum continuous operating current | 4*35A | |
Maximum instantaneous operating current | 4*40A | |
Oneshort125 / Multishot42 / Dshot150 / 300 / 600 | Support | |
BlheliSuite configurable | Support | |
Firmware version | BLHELI_S Dshot 16.5 J_H_xx firmware | |
Board size | 36*36mm | |
weight | 13g | |
Stack-X F4 | MCU | STM32F405 32-bit processor at 168MHz |
MPU | ICM20608 connected via SPI | |
Firmware version | Betaflight 3.2 FISHDRONEF4 | |
VTX control | Set in Betaflight GUI CLI command or OSD | |
VTX power | 50MW/200MW Switchable in CLI Command | |
Channels | 40ch | |
OSD firmware | Betaflight OSD | |
Operating voltage | 2-6S Lipo (Power from ESC) | |
Frsky smartport | UART1 | |
SBUS input | UART3 | |
Board size | 36*36mm | |
Weight | 7g | |
Stack-X DVR | Camera focal length | 2.8mm |
Camera lens angle | H:130 degree V: 98 degree | |
Camera lens screw size | M12 | |
Camera sensor | 1/2.5 Inch CMOS | |
Camera size | L32mm*W22mm*H24mm | |
DVR records effective pixel | 1920(H)x1080(V) | |
Analog video output effective pixel | 640(H)x480(V) | |
DVR records frame rate | 60fps | |
DVR compress format | MOV | |
DVR size | L36mm*W36mm*H5mm | |
Video format | NTSC or PAL Switchable | |
Working voltage | DC 5V | |
Total weight(include camera) | 24g |
Features:
STM32F405 MCU Runs Betaflight 3.2.0 firmware.
Use ICM-20608 as Acc & Gyro over SPI Bus.
Serial or PPM signal input.
STM32 control Betalfight OSD Over SPI in DMA Mode– configure by Betaflight GUI.
Integrated 5.8G 40CH VTX power switchable - 50mw / 200mw switchable.
STM32 control VTX Band / Channel / Power -Set in Betaflight GUI in CLI Command.
BLheli_S new firmware 4in1 35A ESC Dshot600 ready.
BLHELI pass-through ready.
1080P 60 FPS video recorder support AV real time transmit.
1080P Digital 130 degree camera with 1/2.5 CMOS sensor.
Lower CBVS latency 50ms~80ms.
Remote control Start / Stop video record via PWM signal.
How to Fixed the Stack X F4 flight controller overheating when debug via Betaflight configurator on the ground?
1. Update firmware to Betaflight Fishdronef4 V3.3.1 or Betaflight Stack X V3.3.3(Released soon);
2. Connect flight controller and Go to CLI then type "set vtx_low_power_disarm = ON", and "save" .
Notes:
VTX overheat protection function will activated if the Stack-X F4 flytower runs long time but without air-cooled at the ground, the display from your FPV goggles will losted or crashed, don't worry, it's normal. (betaflight_3.3.0_Stack-XF4 firmware)
How to control video recording start stop via Aux channel
How to control video recording start stop via Aux channel
Package included:
1 x Stack-X 2-6S ESC BLHeli_S
1 x Stack-X F4 flight controller built-in OSD VTX
1 x Stack-X 1080P DVR with camera
