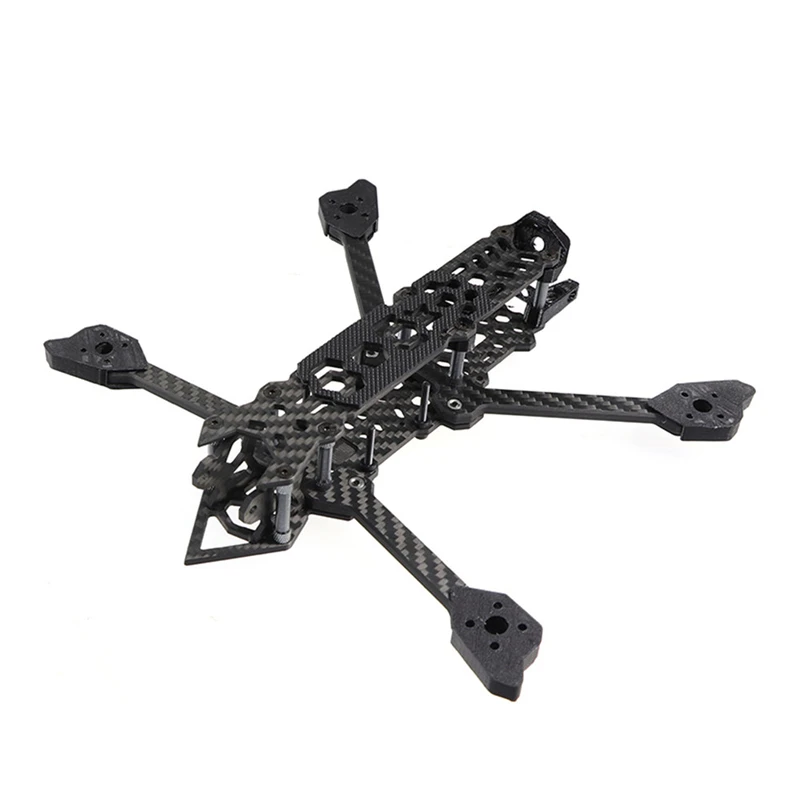

HSKRC Assassin DC5 222mm 5" Frame Kit
Multirotors → Racing FPV-Hubschrauber → Racing Frames → 5" frames → HSKRC Assassin DC5 222mm 5" Frame KitNotice: Only include empty frame kit.
NOT Include FC, ESC, Motor, Propeller, Camera etc.
Specification:
Brand Name: HSKRC
Model: Assassin DC5
Item Name: 222mm Wheelbase 5 Inch Empty Frame Kit
Wheelbase: 222mm
Material: 3K Carbon Fiber
Arm Plate Thickness: 5mm
Arm Plate Width: 10mm
Upper Plate Thickness: 2.5mm
Bottom Plate Thickness: 3mm
Inner Standoff Height: 30mm
Weight: 137g ( Include 3D Printing Parts)
Features:
- with 20x20 & 30.5x30.5mm Mounting Hole on the middle Part ; Also has 30.5x30.5mm hole on back part.
- 30mm standoff height, can support 3 lay stack.
- with riveted nut installed on AIO Frame Arm Plate. More durable and more easier to install or release.
- with 3D Printing Parts to protect frame
- with special design bigger aluminum standoff.
- No propeller in FPV view
Recommend Parts:
Flight Controller: 20x20mm/ 30.5x30.5mm F3/ F4 Flight Controller
Brushless ESC: 20x20mm/ 30.5x30.5mm 35-50A 4In1 ESC
Brushless Motor: 22XX / 23XX series Motor ( 16x16mm Mounting Hole)
Propeller: 50XX 5 Inch Propeller ( Max. 51XX 5.1 Inch Prop)
FPV Camera: 19x19mm Mounting Size
Lipo Battery: 4-6S 1500mAh Lipo
The Following Parts are Compatible: ( NOT Included)
FC & ESC Stack: 20x20mm Flywoo GOKU F7 FC & 40A BL_32 2-6S ESC
30.5x30.5mm FLYWOO GOKU F722 FC & 50A Bl_32 2-6S ESC
Brushless Motor: T-Motor MCK 2207.5 V3 1910KV 4-6S Brushless Motor
iFlight XING-E 2306 1700KV 3-6S Brushless Motor
Propeller: 2 Pairs HQProp DP5X4.5X3V3 Durable 5045 5x4.5 5 Inch 3-Blade Propeller
10 Pairs LDARC 5040 5x4x3 5 Inch 3-Blade Propeller
FPV Camera: Foxeer Micro Predator 4 Super WDR 4ms Latency 1000TVL FPV Camera
Lipo Battery: Tattu R-Line Version 3.0 22.2V 1550mAh 120C 6S Lipo Battery XT60 Plug
Package Included:
1x HSKRC Assassin DC5 Frame Kit
Preise für HSKRC Assassin DC5 222mm 5" Frame Kit in den Läden
Angebote gefunden: 9 (Banggood1)
Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
Banggood | Out of stock | $37 | 1 | $37 |
