T-Motor F80 2408
Multirotors → Racing FPV-Hubschrauber → Motors → 24xx Motors → T-Motor F80 2408

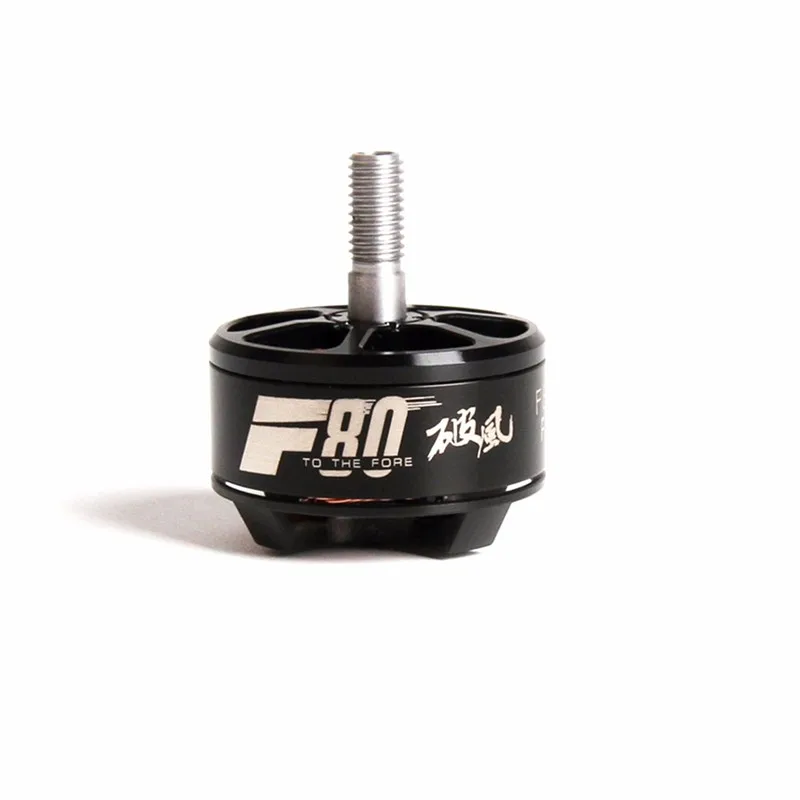

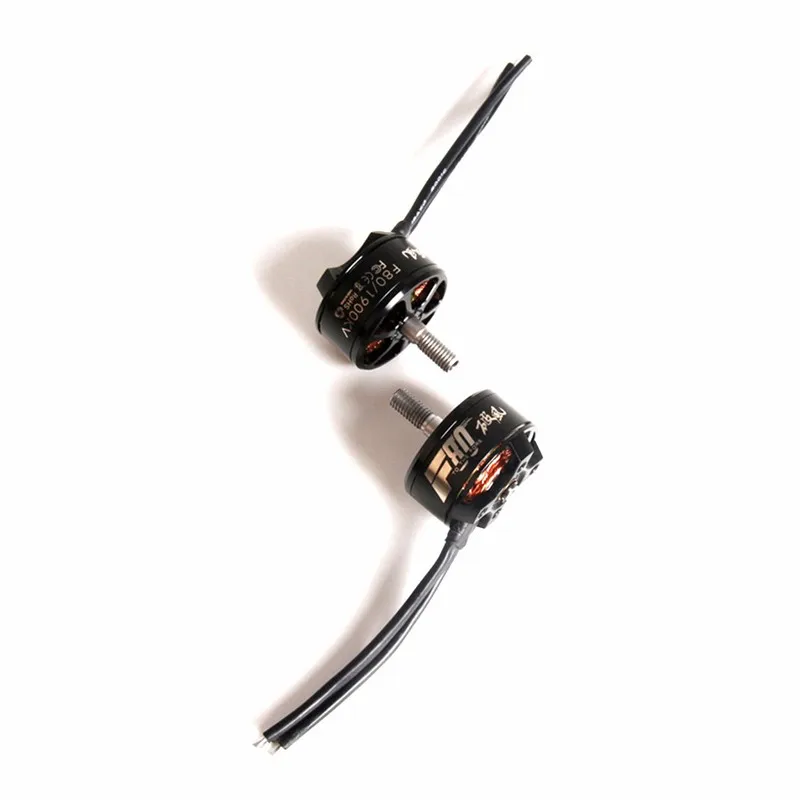

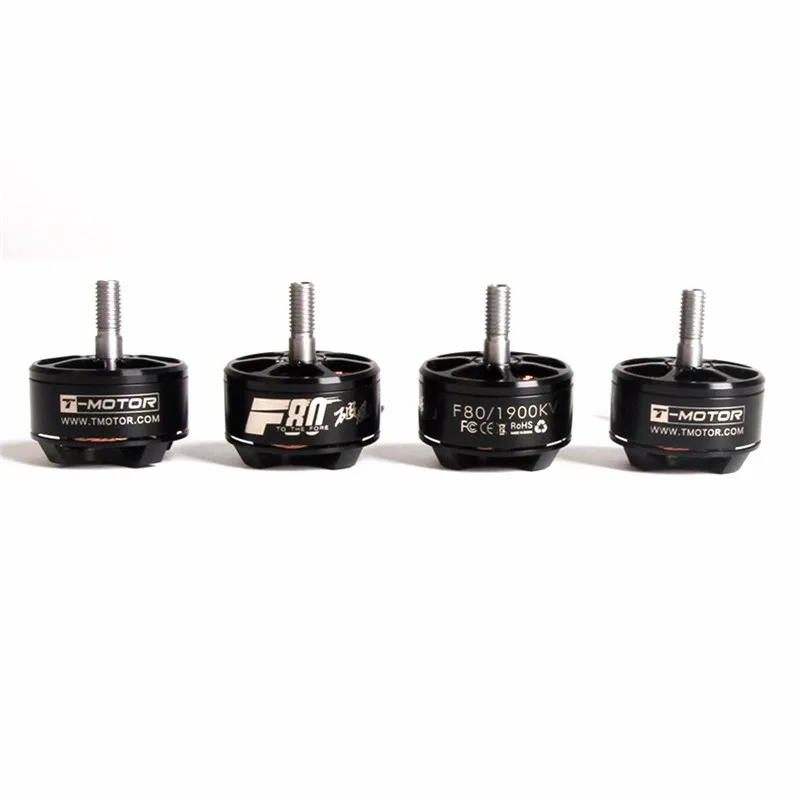

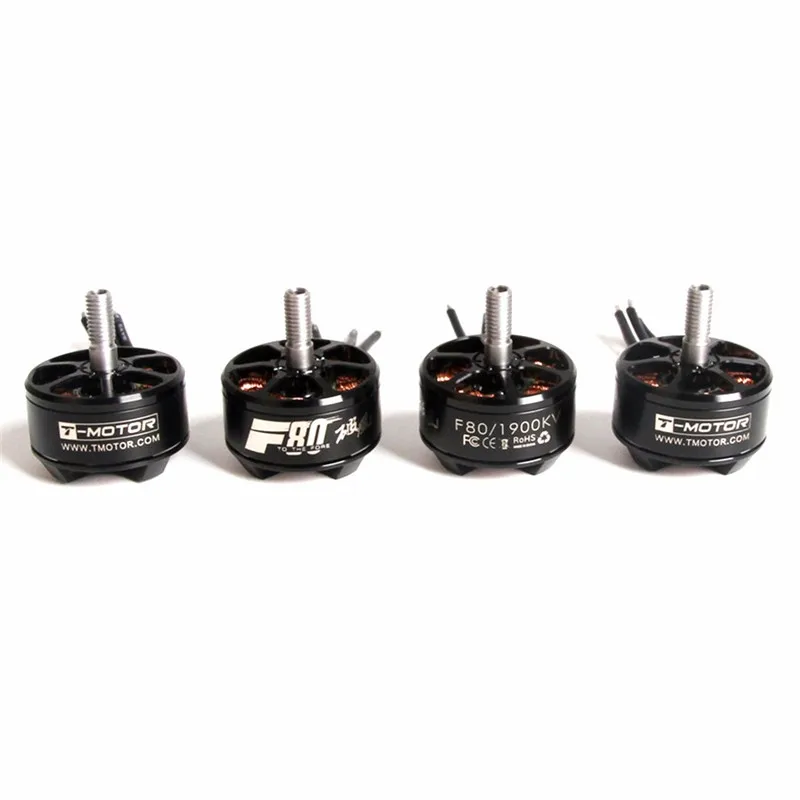

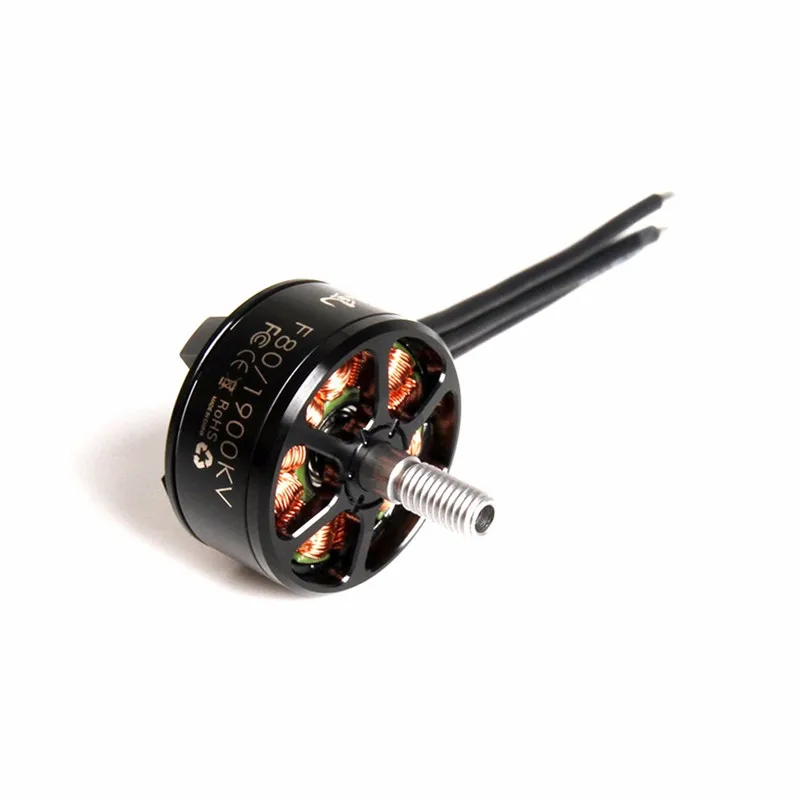

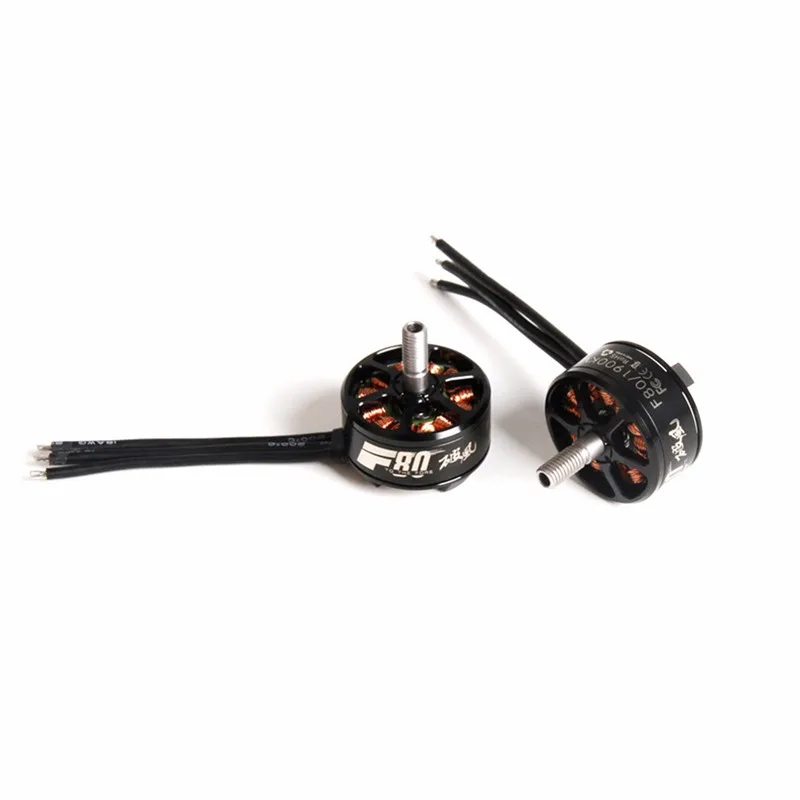

T-Motor F80 2408 1900KV 2200KV 2500KV Brushless Motor 2-6S For 220 250 FPV Racing Frame Drone
2179107: 2500KV
2179106: 2200KV
2179105: 1900KV
Description:

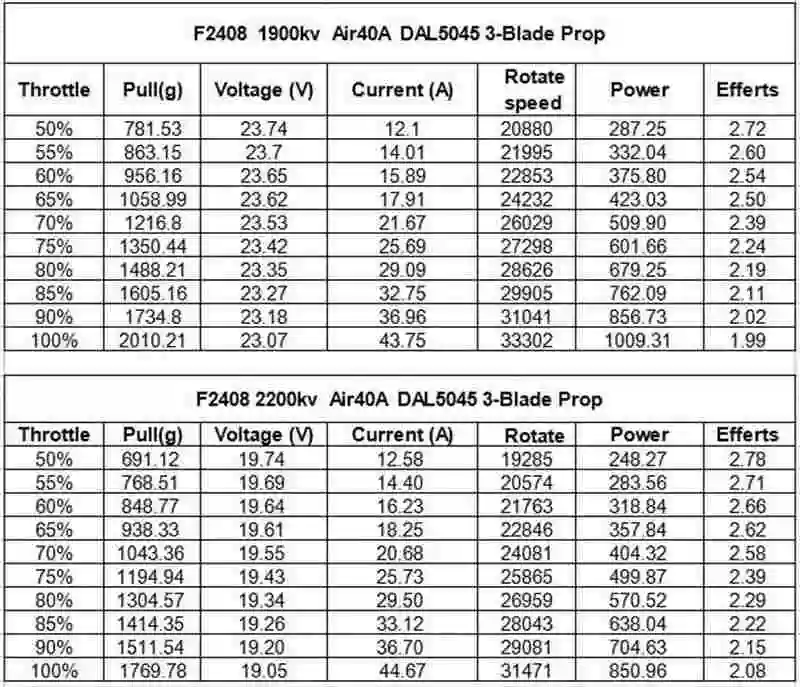

2408 KV1900:
Internal resistance: 36mΩ

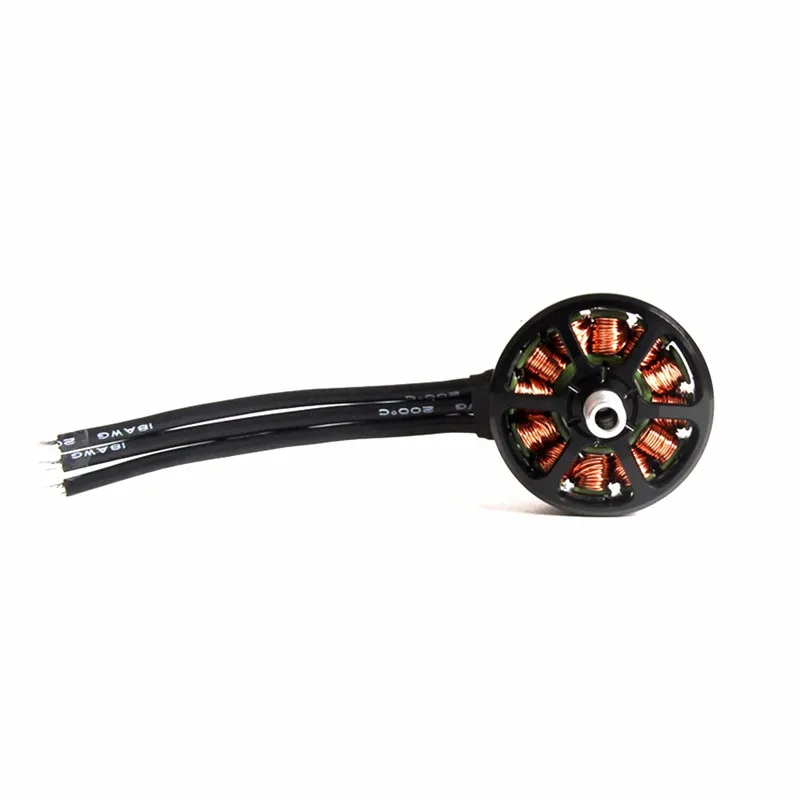

Configuration: 12N14P
Shaft diameter: 4mm

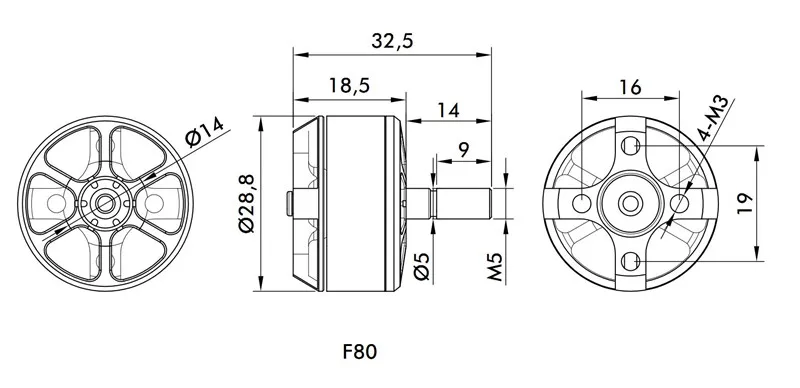

Motor for dimensions (Dia.*Len): 28.8*33.5mm
Stator diameter: 24mm
Stator height: 8mm
AWG: 18#
Cable length: 60mm
Weight including cables: 42.1g
Weight excluding cables: 39.8g
No.of cells(Lipo): 2-6S
Idle current@10V(A): 1.25A
2408 KV2200:
Internal resistance: 27mΩ
Configuration: 12N14P
Shaft diameter: 4mm
Motor for dimensions (Dia.*Len): 28.8*33.5mm
Stator diameter: 24mm
Stator height: 8mm
AWG: 18#
Cable length: 60mm
Weight including cables: 42.9g
Weight excluding cables: 40.5g
No.of cells(Lipo): 2-5S
Idle current@10V(A): 1.6A

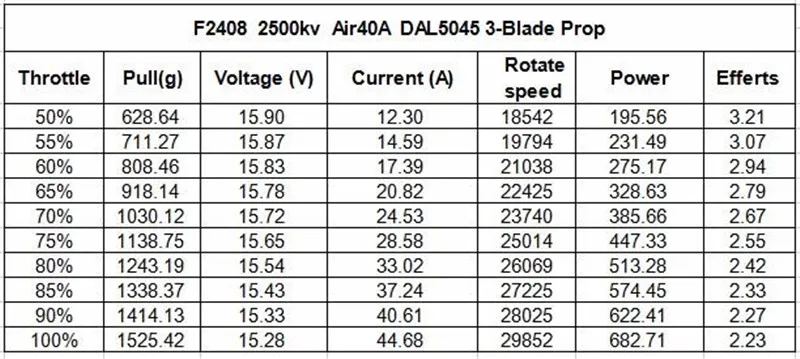

2408 KV2500:
Internal resistance: 21mΩ
Configuration: 12N14P
Shaft diameter: 4mm
Motor for dimensions (Dia.*Len): 28.8*33.5mm
Stator diameter: 24mm
Stator height: 8mm
AWG: 18#
Cable length: 60mm
Weight including cables: 43.1g
Weight excluding cables: 40.7g
No.of cells(Lipo): 2-4S
Idle current@10V(A): 1.9A
Package included:
1 x T-Motor F80 2408 Brushless Motor
Packing list
Package included:
1 x T-Motor F80 2408 Brushless Motor
