JHEMCU GHF411AIO F4 20A 4S 4in1 ESC

Multirotors → Racing FPV-Hubschrauber → Flight controllers → F4 FCs → FC F4 AIO built-in ESC 4in1 → JHEMCU GHF411AIO F4 20A 4S 4in1 ESC

MCU:	F411
:	MPU6000
OSD:	AT7456E
:	2-4S
3.3V BEC:	+
5V BEC:	2A
:	+
:	built in
ESC:	4x20A
BLHeli:	BLHeli_S
Empfänger:	-
VTX:	-
:	2
:	2
:	+
:	+
:	Micro USB
:	33x33mm
:	25.5x25.5mm
Gewicht:	6.3g

JHEMCU GHF411AIO F4 OSD Flight Controller Built-in 20A BL_S 2-4S 4in1 ESC

Specification:
Brand Name: JHEMCU
Model: GHF411AIO
Item Name: F4 OSD Flight Controller Built-in 20A 4in1 ESC
Size: 32.5x32.5mm
Mounting Hole: 25.5x25.5mm
Weight: 6.3g
CPU: STM32F411CEU6 (100MHZ)
MPU: MPU6000 ( SPI)
Firmware: Betaflight MATEKF411 ( MK41)
Built-in Betaflight OSD ( AT7456E)
Built-in Current Sensor
- Support WS2812 LED

Input Voltage: 2-4S Lipo
Con. Current: 20A
Firmware: BLHELI_S
- Support PWM, Oneshot42, Oneshot125, Multishot, Dshot150 and Dshot300, Dshot600

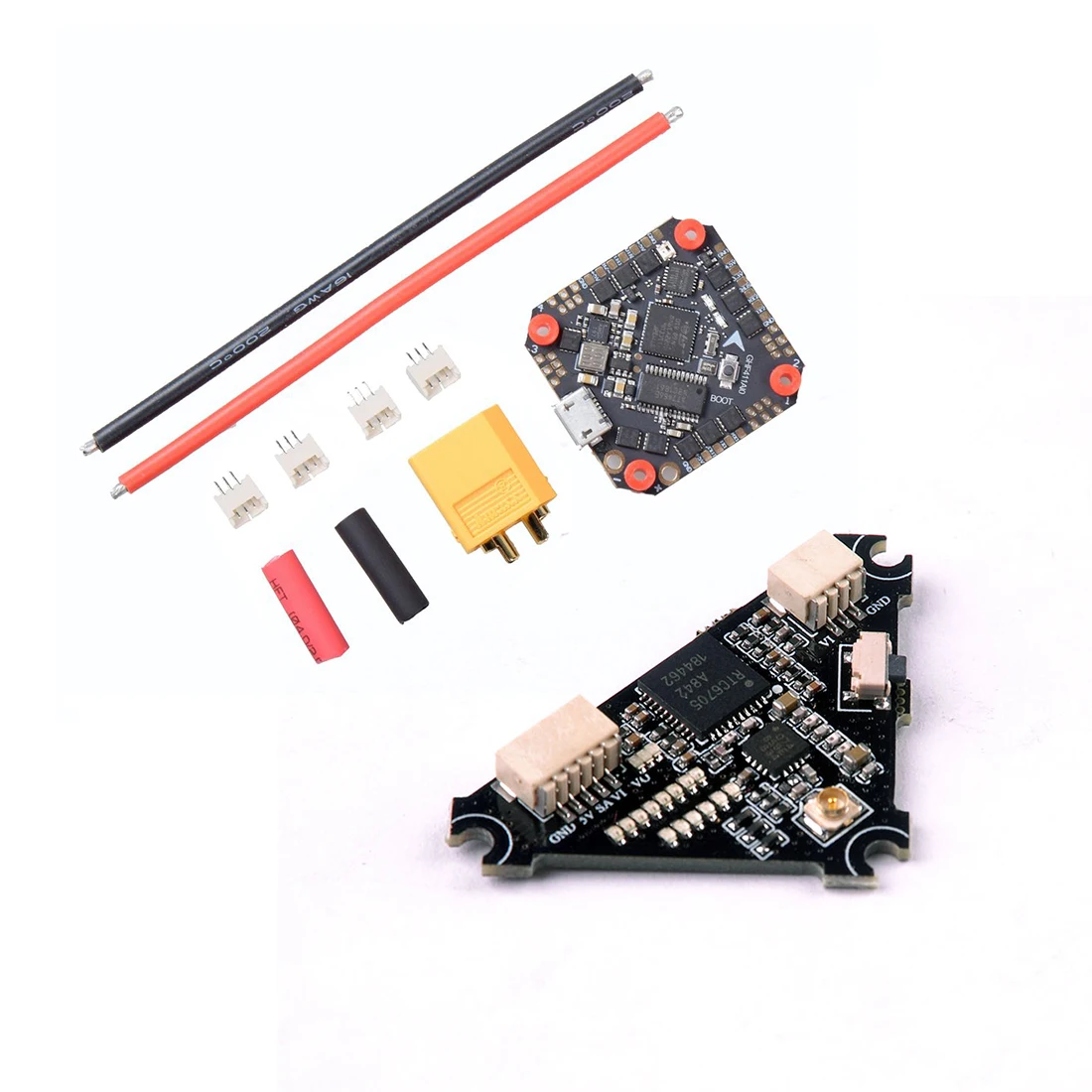

Package Included:
1x F4 FC AIO 20A ESC Board
2x Power Cable
1x XT30 Plug Connector
4x 1.25mm Connector for Motor(Plug and Play)
4x Anti-vibration Ball
