Matek F405-WING
FPV → Wing Flight Controller → Matek F405-WING
Official website: http://www.mateksys.com/?portfolio=f405-wing#tab-id-3
Package included:
1 x Matek Systems F405-WING(New) STM32F405 Flight Controller Built-in OSD for RC Drone
,,,,,,,
Specification:
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer/gyro (SPI)
Baro: BMP280 (I2C)
OSD: INAV OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP & 6x UARTs
2x Motors, 7x Servos outputs
2x I2C
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on TX2 pad
Battery Voltage Sensor: 1:10 (Scale 1100)
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 56 x 36 x 13 mm
Weight: 25g
FC Firmware:
INAV Flight
Target: MATEKF405SE
PDB:
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
2x ESC power pads
Current Senor: 104A, 3.3V ADC, Scale 317
BEC 5V output:
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output:
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
BEC Vx output:
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 5 Amps, Max.6A
Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
BEC 3.3V output:
Designed for Baro / Compass module and Spektrum RX
Linear Regulator
Continuous current: 500mA
Package included:
1 x Matek Systems F405-WING(New) STM32F405 Flight Controller Built-in OSD for RC Drone
,,,,,,,Share
Preise für Matek F405-WING in den Läden
Angebote gefunden: 94 (ReadyMadeRC1, RCPapa1, HiModel1, Banggood1)
| Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
| RCPapa | Out of stock | $59 | 1 | $59 | ||
| ReadyMadeRC | Out of stock | $63 | 1 | $63 | ||
| Banggood | Out of stock | $65 | 1 | $65 | ||
| HiModel | Out of stock | $70 | 1 | $70 |
Siehe auch

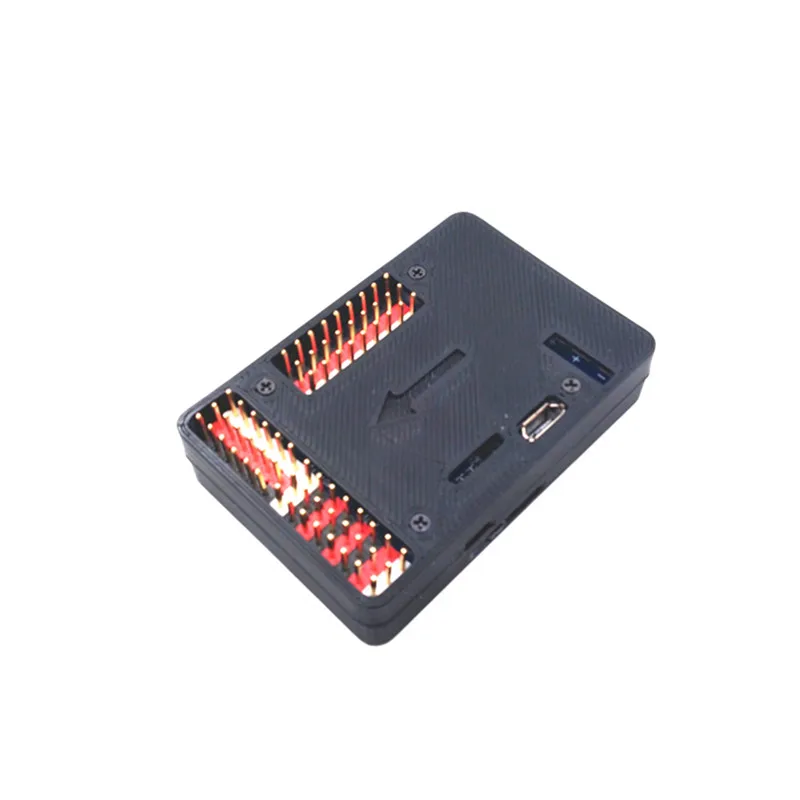

Matek F405-Wing Case
