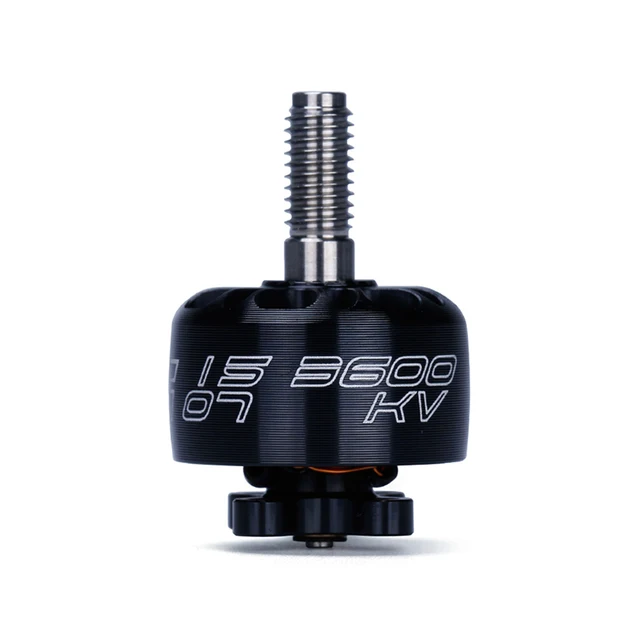

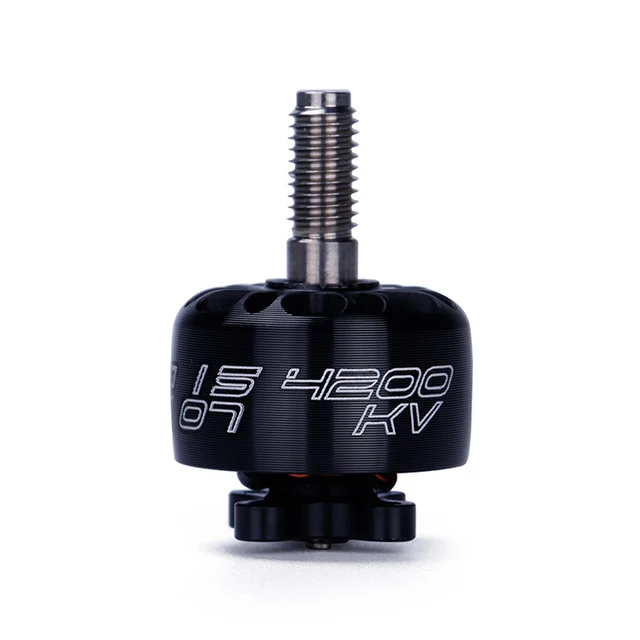

iFlight XING X1507 NextGen 2800KV

Multirotors → Racing FPV-Hubschrauber → Motors → 15xx Motors → iFlight XING X1507 NextGen 2800KV

Brand Name: iFlight
Model: XING X1507
Item Name:1507 2800KV 3600KV 4200KV 2-6S Brushless Motor
Optional KV: 2800KV / 3600KV / 4200KV

Input Voltage: 4-6S@2800KV; 2-4S@4200KV & 3600KV

Configuration: 12N14P
Quantity: 1 PC
Version: CW Screw Thread
Stator Diameter: 15mm
Stator Length: 7mm
Shaft Diameter: M5
Idle Current(10)@5.5V: 1.23A@4200KV ; 1.68A@3600KV(3V); 0.87A@2800KV(3V)
Max. Con. Power(60S): 346.6W@4200KV; 292.5W@3600KV; 555.6W@2800KV
Internal Resistance: 0.165Ω@4200KV ; 0.189Ω@3600KV; 0.208Ω@2800KV
Max. Current(60S): 21.66A@4200KV ; 18.28A@3600KV; 23.15@2800KV

Weight: 15.8g
Application: Compatible with BumbleBee Cinewhoop FPV Drone

Package Included:
1x iFlight X1507 Motor
1x Motor Nut
4x Screws
