Description:

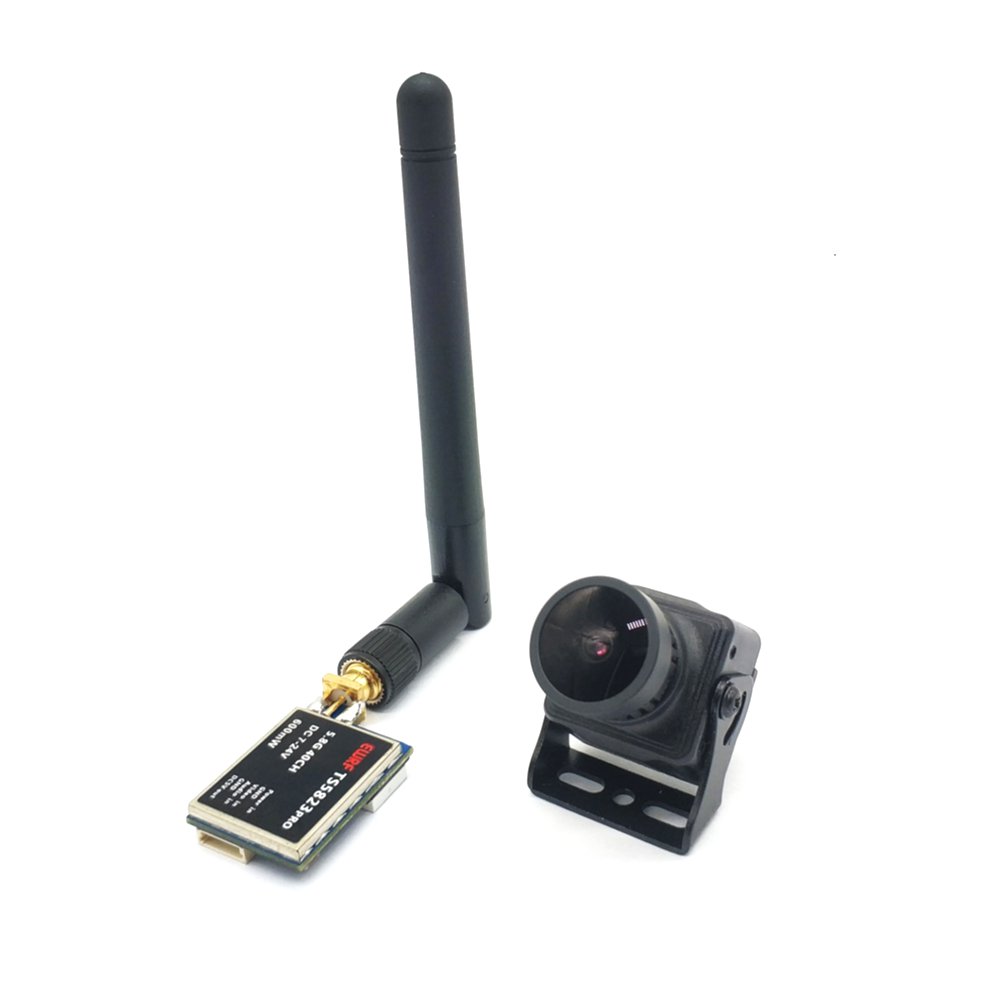

Brand Name: EWRF

Item Name: FPV Transmitter + Camera Combo



Specifications of FPV Transmitter:

Item Name: TS5823Pro

Frequency: 5.8G

Channel: 40

Transmitting Power: 600mW/OFF(Pitmode)

Working Current: 230mA (12V)

Power Supply: DC 7-24V

Weight: 5 g

Dimension: 30x20x8mm

Specifications of FPV Camera:

Size: 22mm x 22mm

Format : PAL

PAL: 1920H×1080V(1MP)

NTSC: 1020H×1920V (1MP)

Horizontal Resolution : 1200TVL

Video Output : 1.0Vp p/75ohm

AGC : 0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB

WB : ON/OFF

Exposure Type: electronic exposure

Electronic Shutter : 1/50(1/60) 1/100000 second

Gamma Correction : 0.45/1.0

Synchronization Mode : inter sync

Lens: 2.5mm

Working Voltage: DC 5 to 12V(wide voltage , measured 5 to 13V)

Working Current: 70mA(ow power consumption)

Working Temp.: -20degree to 60degree

Wetness: 0% ~ 98%



Features:

- 600mW/OFF(Pitmode)

- Miniature and light weight design

- 5V BEC output for camera,RC receiver

- Clean powerup and channel switching without interference to others

- Overheat protection in case of premature damage.

User Guide

1. Setting

After power on, the digital display shows the following three parameters in turn: band, channel, and frequency.Press and hold the button can be entered into the parameters setting.

- Press and hold the button,the digital display will shows the alphabet for band(A-b-C-d-E), press the button can select the bands.

- Press and hold the button again, When the digital display shows the Arabic numerals for the channel (1-8),press the button can select the channels.

- Finally, press and hold the button,VTX is back to normal working state and the band,channel,frequency will display in turn on the digital display.

2. Pitmode Work State

- Press the button twice will toggle the ON/OFF of Pitmode.

- Pitmode work state: Press the button twice, the red dot appears on the right bottom of the digital display which means the VTX is off .

- Normal working state: Press the button twice again, the red dot disappear on the right bottom of the digital display which means the VTX is on, the VTX is back to normal working state.

- Pitmode transmits a tiny amount of power and the transmitting distance is about 2- 3 meters.

Frequency(Mhz):

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
A	5865	5845	5825	5805	5785	5765	5745	5725
b	5733	5752	5771	5790	5809	5828	5847	5866
C	5705	5685	5665	5645	5885	5905	5925	5945
d	5740	5760	5780	5800	5820	5840	5860	5880
E	5658	5695	5732	5769	5806	5843	5880	5917

Note:

1.Make sure that there is enough space for airflow when installing the module on the drone

2. Please install the antenna before powering up for a longer use life.



Package Included:

1x EWRF TS5823Pro FPV Transmitter

1x 1200TVL Camera

1x Antenna

2x Cable
